VALVE
BPDW

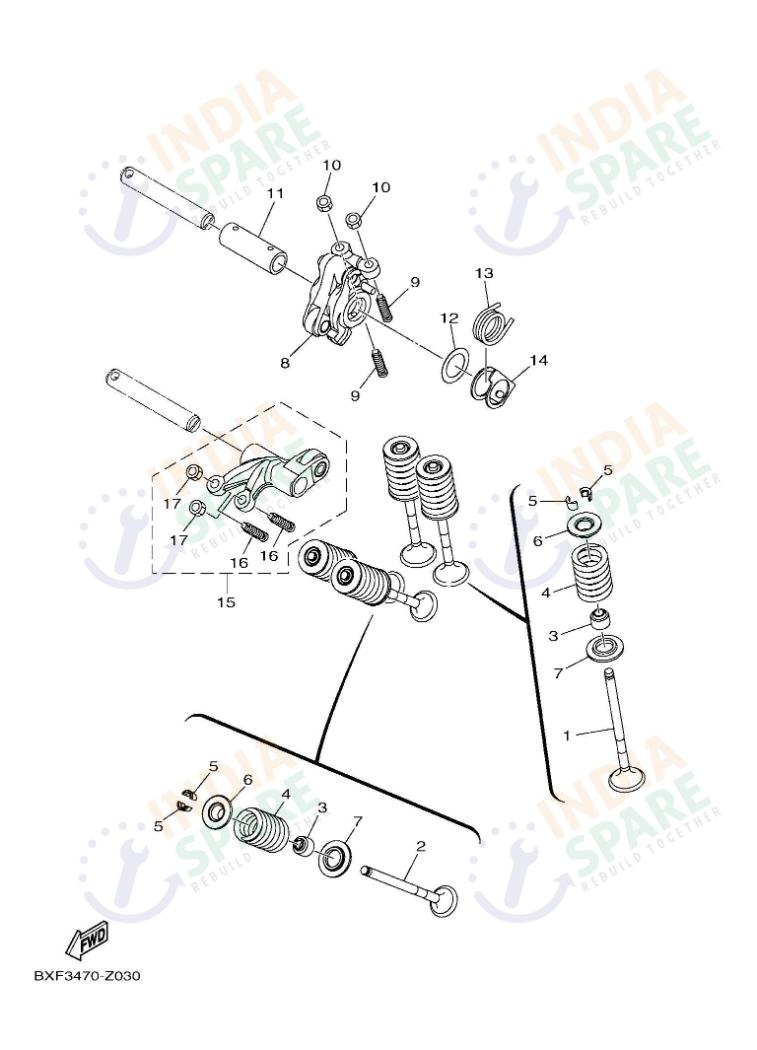

| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7E21110000 | VALVE INTAKE | ₹ 125 | 2 | ||
| 2 | B0TE21210000 | VALVE EXHAUST | ₹ 199 | 2 | ||
| 3 | 1GCE21190000 | SEAL VALVE STEM | ₹ 30 | 4 | ||
| 4 | B63E21130000 | SPRING VALVE INNER | ₹ 99 | 4 | ||
| 5 | 5TLE21180000 | LOCK VALVE SPRING | ₹ 16 | 8 | ||
| 6 | B7JE21170000 | RETAINER VALVE SPRING | ₹ 13 | 4 | ||
| 7 | 38BE21260000 | SEAT VALVE SPRING 2 | ₹ 30 | 4 | ||
| 8 | BPDE21500000 | VALVE ROCKER ARM ASSY | ₹ 3226 | 1 | ||
| 9 | BCWE21590000 | SCREW, VALVE ADJUSTING | ₹ 40 | 2 | ||
| 10 | 901700530200 | NUT | ₹ 7 | 2 | ||
| 11 | BCWE21660000 | SHAFT ROCKER 3 | ₹ 220 | 1 | ||
| 12 | BK6E15570000 | WASHER 1 | ₹ 11 | 1 | ||
| 13 | BK6E22260000 | SPRING COIL | ₹ 103 | 1 | ||
| 14 | BK7E22790000 | PLATE | ₹ 15 | 1 | ||
| 15 | BCWE21600000 | VALVE ROCKER ARM A | ₹ 599 | 1 | ||
| 16 | BCWE21590000 | SCREW, VALVE ADJUSTING | ₹ 40 | 2 | ||
| 17 | 901700530200 | NUT | ₹ 7 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Find it at IndiaSpare. Breath of life enters the high compression cylinder of your motorcycle through the original plus highly specialized valves of your incredible Yamaha R15 V3 S engine. This Valve assembly catalog contains all required parts including Intake Valve units plus Exhaust Valve kits plus original Valve Springs required for engine performance maintenance today. Included within this section are high precision Rocker Arm units plus specialized Adjustment Screws plus every Nut needed for a professional engine head calibration. Authenticity in the Valve Stem Seals plus Retainer kits prevents engine oil from entering the combustion chamber while Ensuring perfect compression throughout every power stroke. These components are made from specialized steel alloys that resist the intense heat of liquid cooled engine operations at redline RPM levels in urban environments. R15 V3 S owners always select genuine valves. Explore at IndiaSpare.
