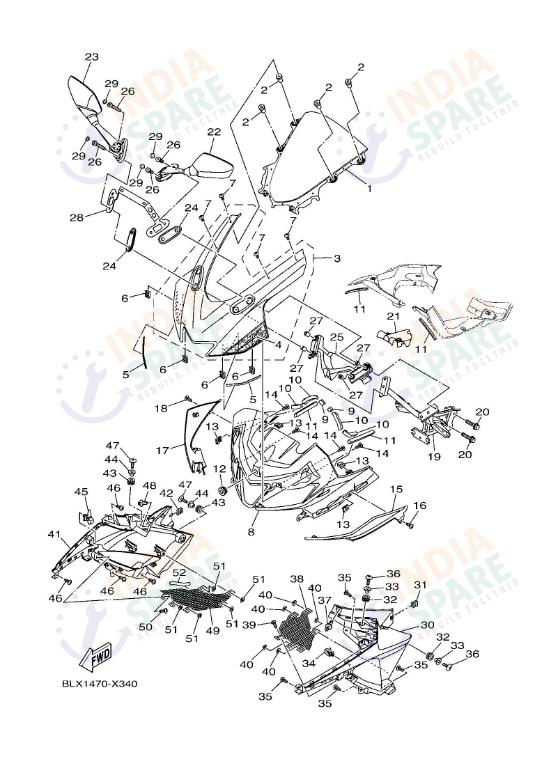

WINDSHIELD
BPDW
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7F83810000 | WINDSHIELD (SMOKE COLOR) | ₹ 322 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 3A | BK7XF83520P2 | PANEL ASSY | ₹ 1027 | 1 | FOR DPBMY | |
| 3B | BK7XF83520P3 | BODY COWLING ASSY 1 | ₹ 1027 | 1 | FOR MBL2 | |
| 4A | BLXF841G0000 | GRAPHIC 1 | ₹ 37 | 1 | FOR DPBMY | |
| 4B | BLXF841G1000 | GRAPHIC 1 | ₹ 50 | 1 | FOR MBL2 | |
| 5 | 905200283800 | SEAT PIPE | ₹ 8 | 2 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 7 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 8 | BK7F835G0000 | BODY FRONT UPPER 1 - (BLACK) | ₹ 253 | 1 | ||
| 9 | 905201083900 | SEAT PIPE | ₹ 8 | 2 | ||
| 10 | 905201084700 | DAMPER PLATE | ₹ 9 | 4 | ||
| 11 | 905201081100 | DAMPER PLATE | ₹ 14 | 4 | ||
| 12 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 14 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 15A | BK7F172G00P0 | PANEL 3 -DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 15B | BK7F172G00P2 | PANEL 3 MBL2 | ₹ 280 | 1 | FOR MBL2 | |
| 16 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 17A | BK7F172H00P0 | PANEL 4 DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 17B | BK7F172H00P2 | PANEL 4 MBL2 | ₹ 280 | 1 | FOR MBL2 | |
| 18 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 19 | BK7F83560000 | STAY 1 | ₹ 590 | 1 | ||
| 20 | 901050800200 | BOLT WASHER BASED | ₹ 8 | 2 | ||
| 21 | B9EF83650000 | COVER | ₹ 68 | 1 | ||
| 22 | BK7F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 455 | 1 | ||
| 23 | BK7F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 455 | 1 | ||
| 24 | BK7F84830000 | PLATE RUBBER 1 | ₹ 15 | 2 | ||
| 25 | BK7F84840000 | PLATE RUBBER 2 | ₹ 86 | 1 | ||
| 26 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 27 | 903870613100 | COLLAR | ₹ 11 | 4 | ||
| 28 | BK7F16850000 | BRACKET LICENSE | ₹ 102 | 1 | ||
| 29 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 30 | BK7F117V0000 | COVER 7 (BLACK) | ₹ 142 | 1 | ||
| 31 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 32 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 33 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 34 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 35 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 36 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 37 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 38 | BK7F837V0000 | GRILL AIR OUTLET 1 - (BLACK P | ₹ 119 | 1 | ||
| 39 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 40 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 41 | BK7F117W0000 | COVER 8 (BLACK) | ₹ 142 | 1 | ||
| 42 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 43 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 44 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 45 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 46 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 47 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 48 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 49 | BK7F837W0000 | GRILL AIR OUTLET 2 - (BLACK | ₹ 119 | 1 | ||
| 50 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 51 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 52 | BK7F12781000 | MOLD | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
