FENDER
BPL1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7F15110000 | FENDER FRONT (BLACK COLOR) | ₹ 221 | 1 | ||
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 5 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 6 | BLXF16110000 | FENDER REAR | ₹ 244 | 1 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 901590681700 | SCREW, WITH WASHER | ₹ 10 | 2 | ||
| 9 | 902690681200 | RIVET | ₹ 20 | 2 | ||

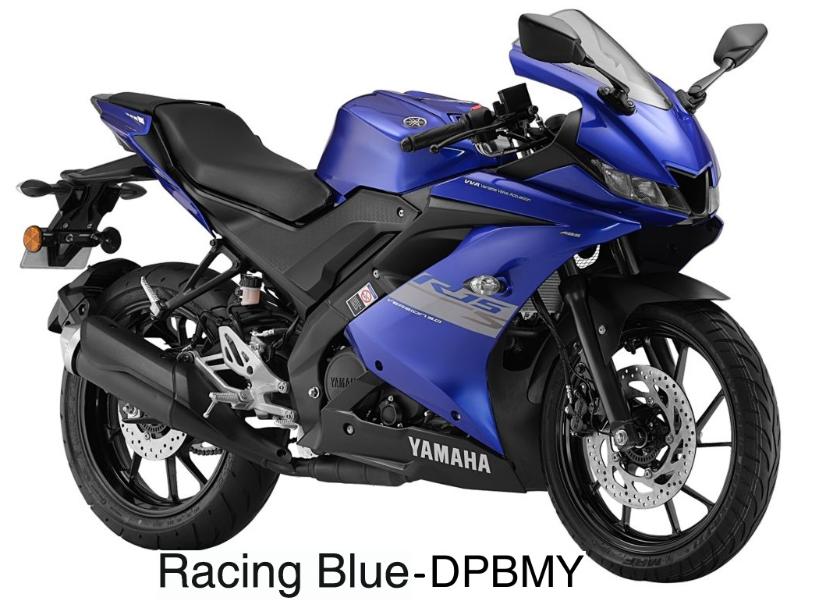

| 10A | BK7F162R00P0 | FENDER 2-DPBMY(DEEPPURPLE BLUE | ₹ 151 | 1 | FOR DPBMY | |

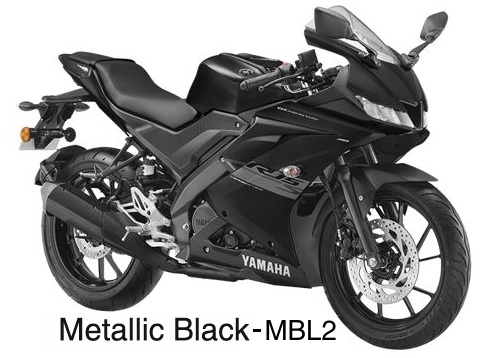

| 10B | BK7F162R00P2 | FENDER 2 | ₹ 151 | 1 | FOR MBL2 | |
| 11 | BK7F16290100 | GUARD MUD | ₹ 161 | 1 | ||
| 12 | BK7F834E0000 | DAMPER 1 | ₹ 14 | 2 | ||
| 13 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 14 | BK7F16170000 | BRACKET FENDER | ₹ 285 | 1 | ||
| 15 | 90387066J900 | COLLAR | ₹ 7 | 4 | ||
| 16 | BK7F16130000 | STAY FENDER 1 | ₹ 50 | 2 | ||
| 17 | 902690681200 | RIVET | ₹ 20 | 2 | ||
| 18 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 4 | ||
| 19 | B0TH19480000 | BRACKET | ₹ 58 | 1 | ||
| 20 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 4 | ||
| 21 | BLXF160E0000 | BOX | ₹ 114 | 1 | ||
| 22 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 23 | 901730680600 | NUT, SQUARE | ₹ 11 | 1 | ||
| 24 | 901090620200 | BOLT | ₹ 13 | 1 | ||
| 25 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 26 | BK7F16530000 | BOX | ₹ 326 | 1 | ||
| 27 | 5TSH39360100 | BAND SWITCH CORD | ₹ 4 | 1 | ||
| 28 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 29 | 950220601400 | BOLT FLANGE | ₹ 12 | 1 | ||
| 30 | 956170610000 | NUT NYLOC | ₹ 76 | 1 | ||
| 31 | 902010607800 | WASHER PLATE | ₹ 10 | 1 | ||
| 32 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 33 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 34 | 36LF81511100 | GRIP DRIVER | ₹ 9 | 1 | ||
| 35 | 36LF81520000 | DRIVER PLUS MINUS | ₹ 11 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your Yamaha R15 V3 S and maintain its aggressive stance with the durable Fender assembly. This essential kit includes the sleek Front Fender (Black Color) and the protective Rear Fender, designed to deflect road debris and water effectively. Also featured is the Mud Guard, offering an additional layer of defense against spray. Constructed with robust materials and secured by specialized bolts, nuts, and rivets, these fenders are built for longevity. The integrated collars and grommets ensure a secure and vibration-dampened fit. Enhance both the performance and the striking appearance of your Yamaha R15 V3 S with these critical bodywork components, ensuring you ride cleaner and look sharper. Conquer the elements in style.
