WINDSHIELD
BPL1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7F83810000 | WINDSHIELD (SMOKE COLOR) | ₹ 322 | 1 | ||
| 2 | 901790580400 | NUT | ₹ 10 | 4 | ||

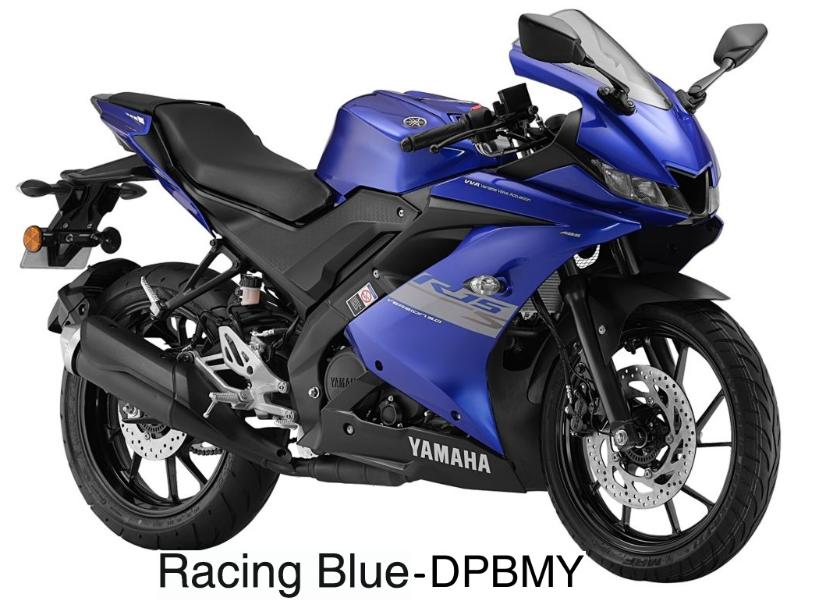

| 3A | BK7XF83520P2 | PANEL ASSY | ₹ 1027 | 1 | FOR DPBMY | |

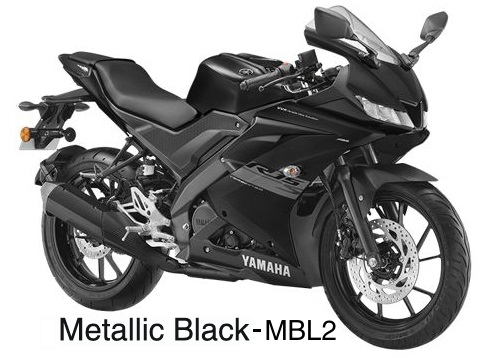

| 3B | BK7XF83520P3 | BODY COWLING ASSY 1 | ₹ 1027 | 1 | FOR MBL2 | |
| 4A | BLXF841G0000 | GRAPHIC 1 | ₹ 37 | 1 | FOR DPBMY | |
| 4B | BLXF841G1000 | GRAPHIC 1 | ₹ 50 | 1 | FOR MBL2 | |
| 5 | 905200283800 | SEAT PIPE | ₹ 8 | 2 | ||
| 6 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 7 | 901500502400 | SCREW ROUND HEAD | ₹ 59 | 4 | ||
| 8 | BK7F835G0000 | BODY FRONT UPPER 1 - (BLACK) | ₹ 253 | 1 | ||
| 9 | 905201083900 | SEAT PIPE | ₹ 8 | 2 | ||
| 10 | 905201084700 | DAMPER PLATE | ₹ 9 | 4 | ||
| 11 | 905201081100 | DAMPER PLATE | ₹ 14 | 4 | ||
| 12 | 904801339800 | GROMMET | ₹ 10 | 1 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 4 | ||
| 14 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 15A | BK7F172G00P0 | PANEL 3 -DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 15B | BK7F172G00P2 | PANEL 3 MBL2 | ₹ 280 | 1 | FOR MBL2 | |
| 16 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 17A | BK7F172H00P0 | PANEL 4 DPBMY(DEEPPURPLEBLUE) | ₹ 280 | 1 | FOR DPBMY | |
| 17B | BK7F172H00P2 | PANEL 4 MBL2 | ₹ 280 | 1 | FOR MBL2 | |
| 18 | 977025001200 | SCREW TAPPING | ₹ 11 | 1 | ||
| 19 | BK7F83560000 | STAY 1 | ₹ 590 | 1 | ||
| 20 | 901050800200 | BOLT WASHER BASED | ₹ 8 | 2 | ||
| 21 | B9EF83650000 | COVER | ₹ 68 | 1 | ||
| 22 | BK7F62800000 | REAR VIEW MIRROR ASSY (LEFT) | ₹ 455 | 1 | ||
| 23 | BK7F62900000 | REAR VIEW MIRROR ASSY (RIGHT) | ₹ 455 | 1 | ||
| 24 | BK7F84830000 | PLATE RUBBER 1 | ₹ 15 | 2 | ||
| 25 | BK7F84840000 | PLATE RUBBER 2 | ₹ 86 | 1 | ||
| 26 | 913170603000 | BOLT | ₹ 15 | 4 | ||
| 27 | 903870613100 | COLLAR | ₹ 11 | 4 | ||
| 28 | BK7F16850000 | BRACKET LICENSE | ₹ 102 | 1 | ||
| 29 | 20PF34690000 | CAP BOLT | ₹ 2 | 4 | ||
| 30 | BK7F117V0000 | COVER 7 (BLACK) | ₹ 142 | 1 | ||
| 31 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 32 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 33 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 34 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 35 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 36 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 37 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 38 | BK7F837V0000 | GRILL AIR OUTLET 1 - (BLACK P | ₹ 119 | 1 | ||
| 39 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 40 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 41 | BK7F117W0000 | COVER 8 (BLACK) | ₹ 142 | 1 | ||
| 42 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 43 | 904801280800 | GROMMET | ₹ 10 | 2 | ||
| 44 | 903870689900 | COLLAR | ₹ 30 | 2 | ||
| 45 | 903870615800 | COLLAR | ₹ 98 | 1 | ||
| 46 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 47 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 48 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 49 | BK7F837W0000 | GRILL AIR OUTLET 2 - (BLACK | ₹ 119 | 1 | ||
| 50 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 51 | 901830506700 | NUT SPRING | ₹ 8 | 5 | ||
| 52 | BK7F12781000 | MOLD | ₹ 7 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Enhance your Yamaha R15 V3 S with the aerodynamic Windshield assembly, offering both protection and style. This premium Windshield, presented in a sophisticated smoke color, shields you from wind and debris, allowing for a more comfortable and focused ride. It integrates seamlessly with the robust Body Cowling Assy, creating a cohesive and aggressive front profile. The comprehensive kit also includes the essential Rear View Mirror assemblies, ensuring superior situational awareness. Secured by specialized nuts, screws, and grommets, this assembly promises a durable and stable fit. Elevate your riding experience and embrace the road with the refined design and practical benefits of this essential aerodynamic component for your Yamaha R15 V3 S. Ride with enhanced comfort.
