FENDER
BPL2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BK7F15110000 | FENDER FRONT (BLACK COLOR) | ₹ 221 | 1 | ||
| 2 | 90387068C500 | COLLAR | ₹ 8 | 4 | ||
| 3 | 904800880100 | GROMMET | ₹ 10 | 4 | ||
| 4 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 5 | 958070602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 6 | BLXF16110000 | FENDER REAR | ₹ 244 | 1 | ||
| 7 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 8 | 901590681700 | SCREW, WITH WASHER | ₹ 10 | 2 | ||
| 9 | 902690681200 | RIVET | ₹ 20 | 2 | ||

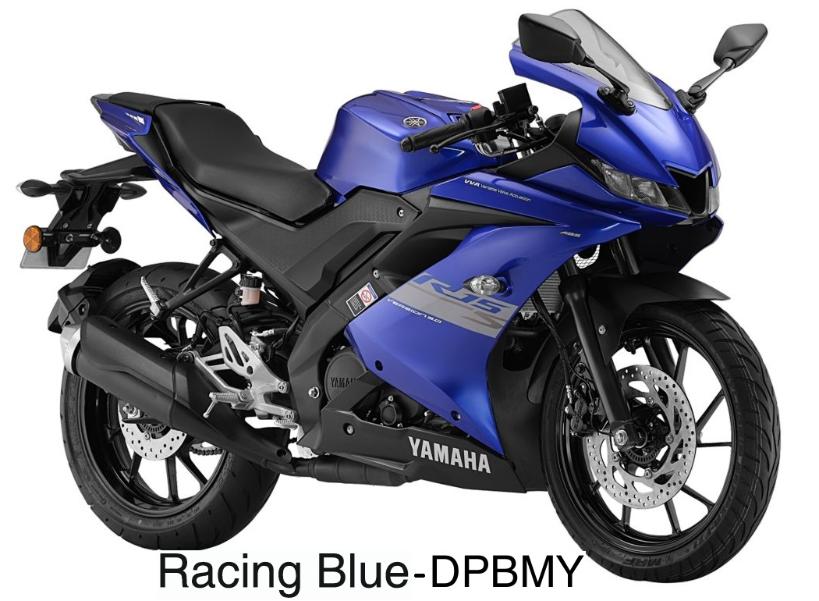

| 10A | BK7F162R00P0 | FENDER 2-DPBMY(DEEPPURPLE BLUE | ₹ 151 | 1 | FOR DPBMY | |

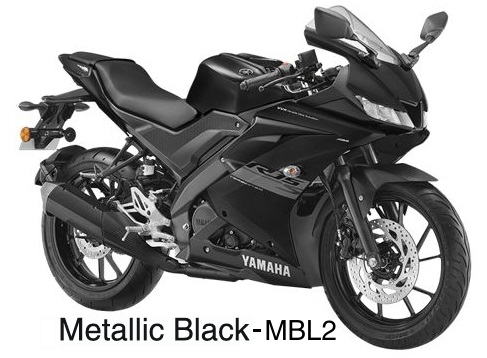

| 10B | BK7F162R00P2 | FENDER 2 | ₹ 151 | 1 | FOR MBL2 | |
| 11 | BK7F16290100 | GUARD MUD | ₹ 161 | 1 | ||
| 12 | BK7F834E0000 | DAMPER 1 | ₹ 14 | 2 | ||
| 13 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 14 | BK7F16170000 | BRACKET FENDER | ₹ 285 | 1 | ||
| 15 | 90387066J900 | COLLAR | ₹ 7 | 4 | ||
| 16 | BK7F16130000 | STAY FENDER 1 | ₹ 50 | 2 | ||
| 17 | 902690681200 | RIVET | ₹ 20 | 2 | ||
| 18 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 4 | ||
| 19 | B0TH19480000 | BRACKET | ₹ 58 | 1 | ||
| 20 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 4 | ||
| 21 | BLXF160E0000 | BOX | ₹ 114 | 1 | ||
| 22 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 23 | 901730680600 | NUT, SQUARE | ₹ 11 | 1 | ||
| 24 | 901090620200 | BOLT | ₹ 13 | 1 | ||
| 25 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 26 | BK7F16530000 | BOX | ₹ 326 | 1 | ||
| 27 | 5TSH39360100 | BAND SWITCH CORD | ₹ 4 | 1 | ||
| 28 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 29 | 950220601400 | BOLT FLANGE | ₹ 12 | 1 | ||
| 30 | 956170610000 | NUT NYLOC | ₹ 76 | 1 | ||
| 31 | 902010607800 | WASHER PLATE | ₹ 10 | 1 | ||
| 32 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 33 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 34 | 36LF81511100 | GRIP DRIVER | ₹ 9 | 1 | ||
| 35 | 36LF81520000 | DRIVER PLUS MINUS | ₹ 11 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protect your Yamaha R15 V3 S from the elements and amplify its aggressive styling with our high-quality Fender components. These essential parts deflect road spray, mud, and debris, keeping both the rider and the motorcycle clean. The sleek FENDER FRONT (BLACK COLOR) integrates seamlessly with the bike's design, while the robust FENDER REAR offers complete protection. Secured with durable hardware like the BOLT HEX. SOCKET BUTTON, these fenders provide a secure and lasting fit. Equip your Yamaha R15 V3 S with these functional and stylish fenders for both enhanced practicality and a sharp, race-inspired appearance.
