FRONT WHEEL

BXF3

YAMAHA BXF3 MT15 V2 Series FRONT WHEEL
Fullscreen
YAMAHA BXF3 MT15 V2 Series FRONT WHEEL YAMAHA BXF3 MT15 V2 Series FRONT WHEEL YAMAHA BXF3 MT15 V2 Series FRONT WHEEL YAMAHA BXF3 MT15 V2 Series FRONT WHEEL YAMAHA BXF3 MT15 V2 Series FRONT WHEEL
Ref No Part No Part Name Rate Qnty Order Remarks

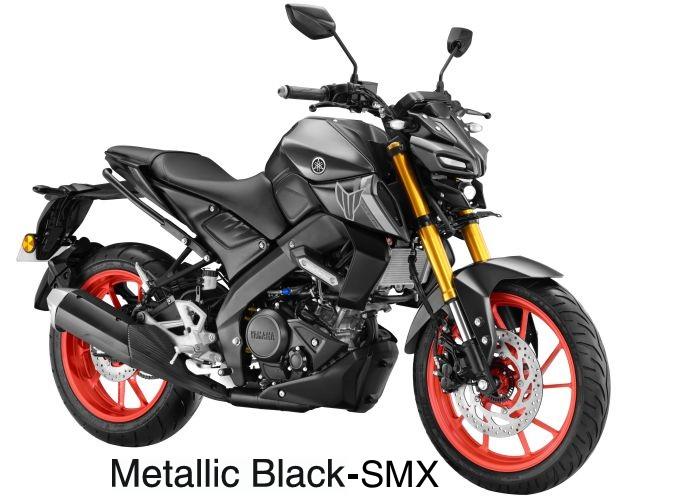

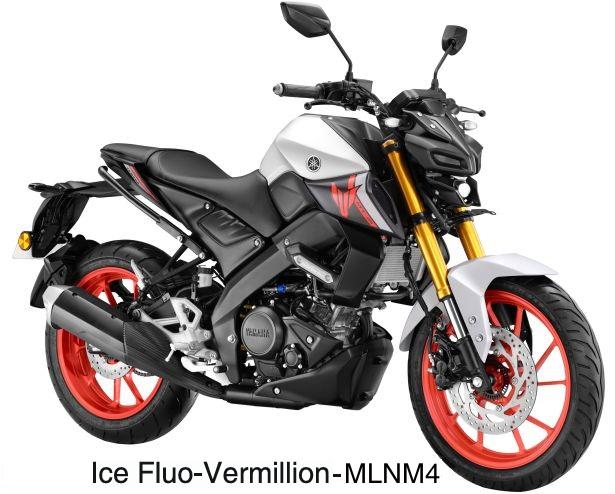

1A B9EF516801P1 CAST WHEEL FRONT ₹ 5019 1 FOR SMX,MLNM4

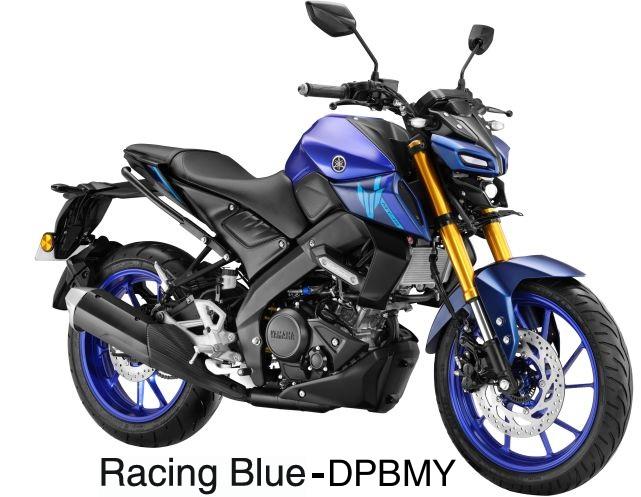

1B B9EF516801P0 CAST WHEEL FRONT ₹ 5019 1 FOR DPBMY

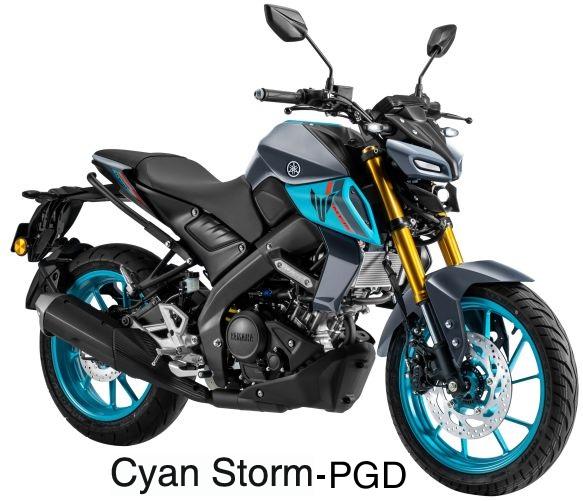

1C B9EF516801P3 CAST WHEEL FRONT ₹ 5019 1 FOR PGD
2 21CF510C1000 COLLAR ASSY. ₹ 27 1
3 931062280800 OIL SEAL ₹ 9 2
4 93306202XT00 BEARING ( USE IN REAR WHEEL H ₹ 185 2
5 941101781800 TIRE FRONT ( 100/80-17 ) MRF ₹ 1751 1
6 939000082400 VALVE RIM ₹ 19 1
7 B9EF517G0000 ROTOR SENSOR ₹ 107 1
8 901490503000 SCREW ₹ 21 3
9 1CKF51860000 COLLAR WHEEL ₹ 23 2
10 21CF51810000 AXLE WHEEL ₹ 152 1
11 956021420000 NUT U FLANGE ₹ 32 1


Color Legend:

  • Red: Canceled part - unavailable for any operations.
  • Blue: Part of a kit - cannot be ordered individually.
  • Gray (Dimmed): Disabled part - non-interactive for various reasons.
  • Part Number : Superseded part - replaced by a newer part.

Description: - The agility and steering precision of the Yamaha MT15 V2 are defined by the quality of the front wheel assembly and its components. This catalog features the Front Cast Wheel, designed for lightweight strength and a perfect balance that enhances the flickable nature of your machine. Included in this selection are the high performance Bearings and the robust Wheel Axle, which ensure low friction rotation and long term durability on diverse roads. The Oil Seal and specialized Collar Wheel protect the internal parts from dust and moisture, maintaining the smooth performance of the front end over time. Every Nut U Flange and Rotor Sensor is manufactured to exact factory specifications, ensuring that your electronic systems receive accurate data for traction and braking. By choosing genuine Yamaha wheel parts, you preserve the sharp handling and stable ride quality of your motorcycle. Trust in original hardware to keep your front end responsive and your journeys safe and enjoyable.
