FENDER
BXF4
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

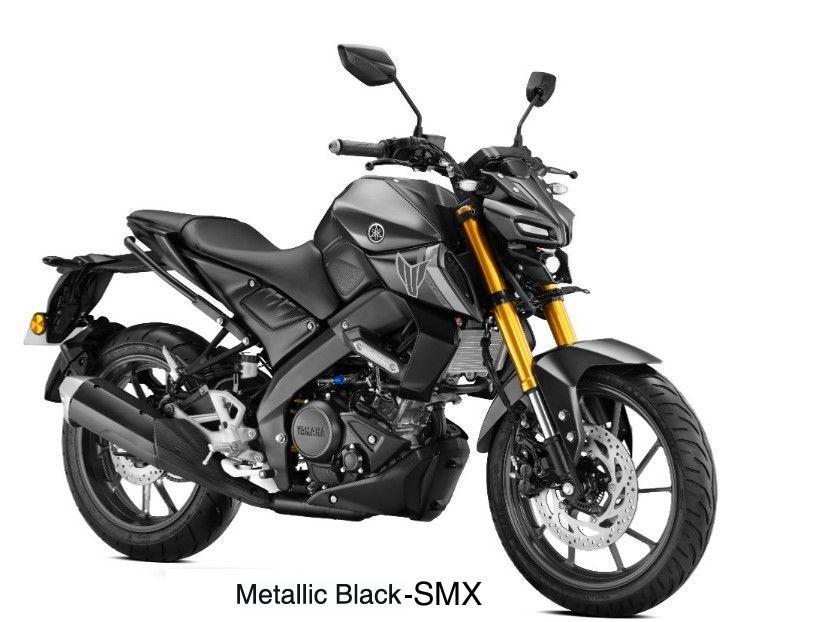

| 1A | BCWF151100P4 | FENDER FRONT | ₹ 1531 | 1 | FOR SMX | |

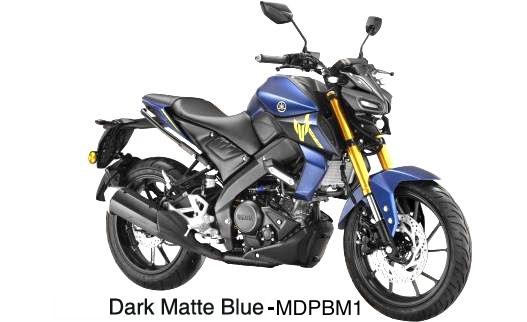

| 1B | BCWF151100P1 | FENDER, FRONT | ₹ 1599 | 1 | FOR MDPBM1 | |
| 2 | 90387068C800 | COLLAR | ₹ 16 | 6 | ||
| 3 | 904801280500 | GROMMET | ₹ 8 | 6 | ||
| 4 | 901110613700 | BOLT HEX. SOCKET BUTTON | ₹ 35 | 5 | ||
| 5 | BCFF16110000 | FENDER REAR | ₹ 139 | 1 | ||
| 6 | 905600832600 | SPACER | ₹ 10 | 4 | ||
| 7 | 901090622000 | BOLT | ₹ 19 | 2 | ||
| 8 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 9 | BCFH19750000 | PLATE RECTIFIER FITTING | ₹ 95 | 1 | ||
| 10 | BXFF16820000 | STAY, PLATE | ₹ 115 | 1 | ||
| 11 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 2 | ||
| 12 | 958220601200 | BOLT FLANGE | ₹ 3 | 2 | ||
| 13 | 902690681200 | RIVET | ₹ 20 | 2 | ||
| 14 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 15 | B9DF16290100 | GUARD MUD | ₹ 82 | 1 | ||
| 16 | B9DF16400000 | REAR STAY COMP. | ₹ 599 | 1 | ||
| 17 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 18 | 90183050A700 | NUT SPRING | ₹ 22 | 2 | ||
| 19 | 901190502200 | BOLT WITH WASHER | ₹ 3 | 2 | ||
| 20 | B9DF163A0000 | COVER REAR FENDER 1 | ₹ 54 | 1 | ||
| 21 | B9DF465B0100 | CAP ROTOR | ₹ 6 | 1 | ||
| 22 | 902410380000 | PIN | ₹ 8 | 1 | ||
| 23 | 905080900700 | SPRING TORSION | ₹ 45 | 1 | ||
| 24 | 901830301000 | NUT SPRING | ₹ 9 | 1 | ||
| 25 | 901850680100 | NUT SELF-LOCKING | ₹ 5 | 4 | ||
| 26 | 905200880400 | DAMPER PLATE | ₹ 13 | 1 | ||
| 27 | B9DF13910000 | BRACKET SEAT | ₹ 195 | 1 | ||
| 28 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 29 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Stay protected from road spray and debris with our durable fender components and mud guards designed specifically for the agile Yamaha MT15 V2. This catalog features the Front Fender and the Rear Fender Comp, providing essential coverage for both the rider and the critical mechanical systems. Each component is designed to integrate seamlessly with the aggressive styling of the bike while providing high levels of durability and impact resistance on rough roads. You will also find the various Stay and specialized Plate components that ensure the fenders remain securely attached even during high speed riding sessions. These genuine parts are manufactured to withstand the vibrations and environmental challenges of the road, providing a reliable and rattle free mounting for the bodywork. By choosing original Yamaha fender parts, you maintain the clean look and protective functionality of your motorcycle, ensuring a more comfortable and cleaner ride in all weather conditions. Trust in genuine hardware for durability.
