HEADLIGHT
BXP1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BSTH43000000 | HEADLIGHT ASSY | ₹ 8700 | 1 | ||
| 2 | 904801410100 | GROMMET | ₹ 10 | 2 | ||
| 3 | 90387068D400 | COLLAR | ₹ 7 | 2 | ||
| 4 | 958270602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 5 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 6 | BSTF31750000 | BRACKET, HEADLIGHT STAY 1 | ₹ 101 | 1 | ||
| 7 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 8 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 9 | BXPF31210000 | COVER, UPPER 1 | ₹ 156 | 1 | ||
| 10 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 11 | 958270801600 | BOLT FLANGE | ₹ 10 | 1 | ||
| 12 | 90387068N200 | COLLAR | ₹ 11 | 1 | ||
| 13 | BFHF31230000 | COVER, LOWER 1 | ₹ 73 | 1 | ||
| 14 | 902690681600 | RIVET | ₹ 12 | 1 | ||

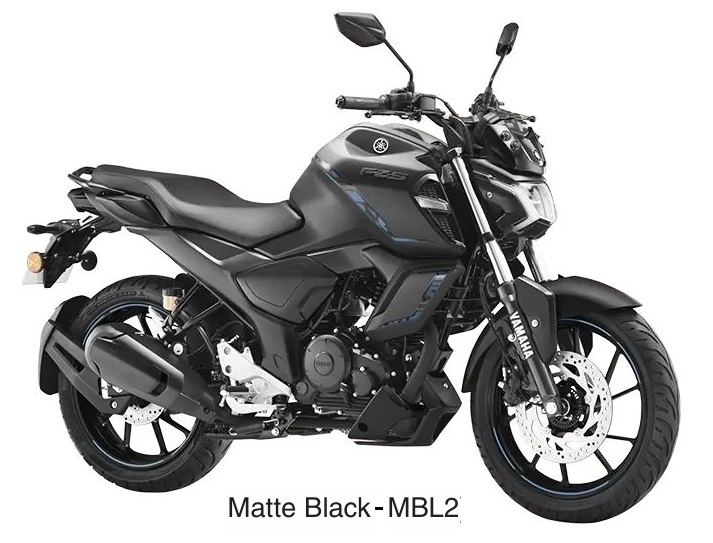

| 15A | BFHF312200P2 | COVER, OUTER 1 | ₹ 235 | 1 | FOR MBL2 | |

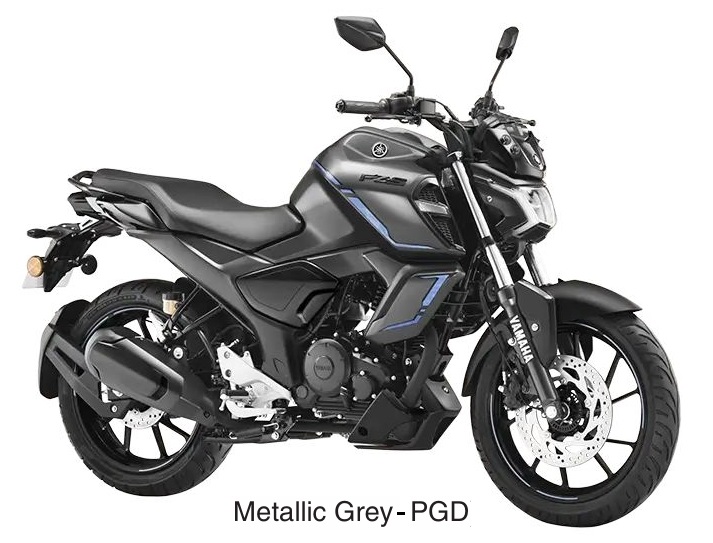

| 15B | BFHF3122003E | COVER, OUTER 1 | ₹ 235 | 1 | FOR PGD | |
| 16 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 17 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 18A | BFHF313200P2 | COVER, OUTER 2 | ₹ 235 | 1 | FOR MBL2 | |
| 18B | BFHF3132003E | COVER, OUTER 2 | ₹ 235 | 1 | FOR PGD | |
| 19 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 20 | 901830580700 | NUT SPRING | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The bold face of the Yamaha FZS Version Three is illuminated by the premium Headlight assembly which features modern lighting technology. This system is supported by a robust Bracket together with a specialized Headlight stay for a secure mount. Protective elements like the Cover upper plus lower provide an aerodynamic finish while shielding the sensitive electronics. Every Collar plus Bolt flange ensures that the light remains perfectly aligned even on the bumpiest rural roads. The muscular look of the motorcycle is enhanced by the outer covers which add to the streetfighter personality. Using genuine headlight components ensures maximum road illumination for safer night riding. This assembly provides the clarity needed to spot obstacles well in advance. Every nut spring plus screw round tapping within this kit is engineered for a weather tight fit. Style meets function in this essential front end module, providing the vision needed for every journey after sunset. Reliability is guaranteed.
