REAR WHEEL
BXP1
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF53380033 | CAST WHEEL, REAR | ₹ 6513 | 1 | ||
| 2 | B97F530S0000 | COLLAR ASSY | ₹ 49 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4 | B97F53640000 | DAMPER | ₹ 25 | 6 | ||
| 5 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 6 | B97F53660000 | CLUTCH HUB | ₹ 456 | 1 | ||
| 7 | 93306054Y500 | BEARING | ₹ 170 | 1 | ||
| 8 | B97F53760000 | COLLAR WHEEL | ₹ 41 | 1 | ||
| 9 | 931062680100 | SEAL OIL | ₹ 23 | 1 | ||
| 10 | 2GSF54411000 | SPROCKET, DRIVEN (41T) | ₹ 0 | 1 | ||
| 11 | 901160882600 | BOLT STUD | ₹ 31 | 6 | ||
| 12 | 956020820000 | NUT U FLANGE | ₹ 11 | 6 | ||
| 13A | 941141780100 | TIRE | ₹ 0 | 1 | ||
| 13B | 941141780700 | TIRE -REAR-CEAT LIMITED | ₹ 2939 | 1 | ||
| 14 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 15 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 16 | 901490501000 | SCREW | ₹ 25 | 3 | ||
| 17 | 21CF53810000 | AXLE WHEEL | ₹ 147 | 1 | ||
| 18 | B97F53770000 | COLLAR WHEEL | ₹ 31 | 1 | ||
| 19 | B97F53830000 | COLLAR WHEEL | ₹ 38 | 1 | ||
| 20 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 21 | 902011581400 | WASHER PLAIN | ₹ 27 | 2 | ||
| 22 | 94568K312800 | CHAIN (R428NAR 128L) | ₹ 0 | 1 | ||
| 23 | 21CF53881100 | PULLER CHAIN 1 | ₹ 55 | 2 | ||
| 24 | 21CF21740000 | END 1 | ₹ 9 | 2 | ||
| 25 | 929070860000 | WASHER | ₹ 8 | 2 | ||
| 26 | 9530N0860000 | NUT HEX | ₹ 5 | 4 | ||

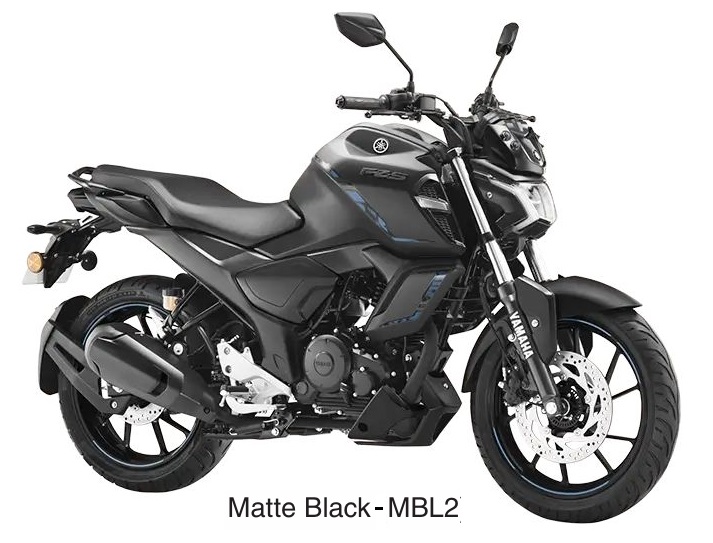

| 27A | BXPF531B0000 | EMBLEM, WHEEL | ₹ 75 | 2 | FOR MBL2 | |

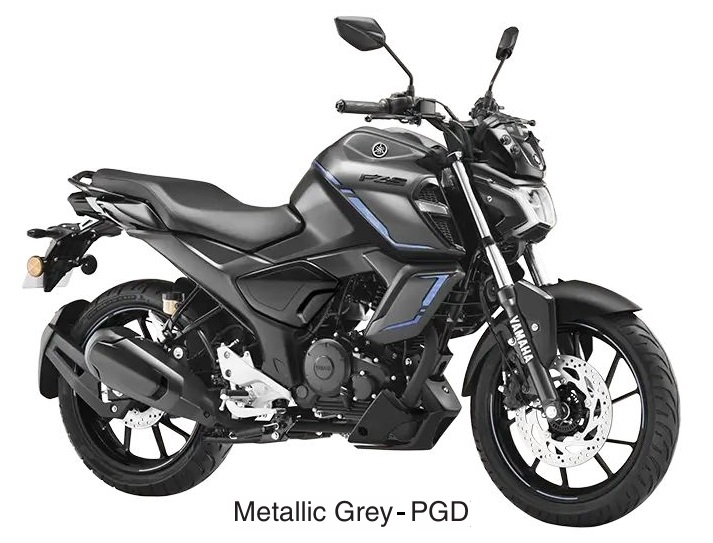

| 27B | BXPF531B2000 | EMBLEM, WHEEL | ₹ 100 | 2 | FOR PGD |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The delivery of power for the Yamaha FZS Version Three occurs through the robust Rear Wheel assembly. This unit features a high strength Cast wheel rear together with the Clutch hub which houses the vibration dampening Damper. High quality Bearings plus Oil seals ensure the wheel rotates with minimal friction for better efficiency. The drive is managed by the Sprocket driven forty one teeth together with the Chain. Every Bolt stud plus Nut flange ensures a secure connection for the drivetrain. The Axle wheel provides the central support while the Puller chain ensures precise adjustment of the tension. This assembly also includes a Rotor sensor for the anti lock braking system. The Valve rim ensures the tire remains properly inflated for optimal grip. Authentic wheel parts are essential for the safety plus performance of the machine, while the specialized Emblem wheel adds a touch of branding to the rear profile of the bike.
