REAR WHEEL
BXP2
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

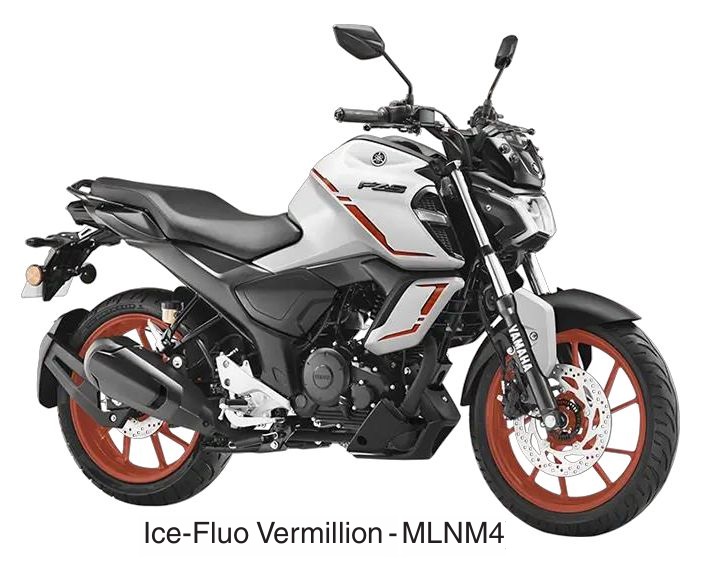

| 1A | BPDF533800P1 | CAST WHEEL, REAR | ₹ 6545 | 1 | FOR MLNM4 | |

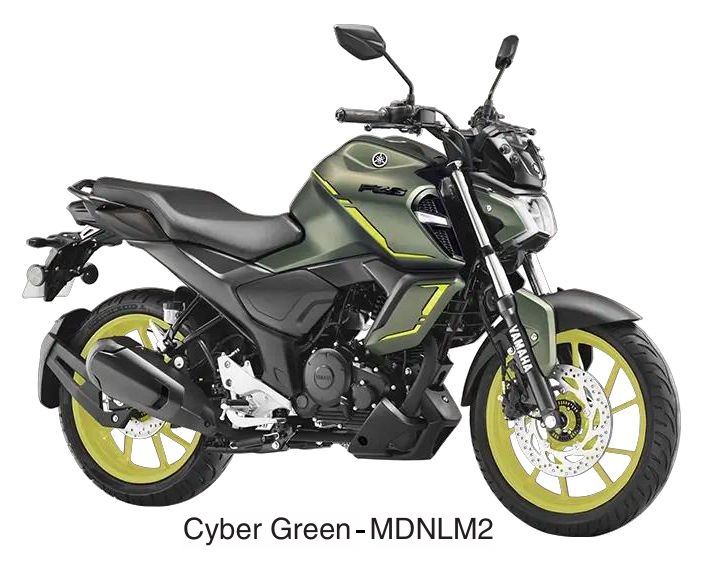

| 1B | BPDF533800P4 | CAST WHEEL, REAR | ₹ 7457 | 1 | FOR MDNLM2 | |
| 2 | B97F530S0000 | COLLAR ASSY | ₹ 49 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 1 | ||
| 4 | B97F53640000 | DAMPER | ₹ 25 | 6 | ||
| 5 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 6 | B97F53660000 | CLUTCH HUB | ₹ 456 | 1 | ||
| 7 | 93306054Y500 | BEARING | ₹ 170 | 1 | ||
| 8 | B97F53760000 | COLLAR WHEEL | ₹ 41 | 1 | ||
| 9 | 931062680100 | SEAL OIL | ₹ 23 | 1 | ||
| 10 | 2GSF54411000 | SPROCKET, DRIVEN (41T) | ₹ 0 | 1 | ||
| 11 | 901160882600 | BOLT STUD | ₹ 31 | 6 | ||
| 12 | 956020820000 | NUT U FLANGE | ₹ 11 | 6 | ||
| 13A | 941141780100 | TIRE | ₹ 0 | 1 | ||
| 13B | 941141780700 | TIRE -REAR-CEAT LIMITED | ₹ 2939 | 1 | ||
| 14 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 15 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 16 | 901490501000 | SCREW | ₹ 25 | 3 | ||
| 17 | 21CF53810000 | AXLE WHEEL | ₹ 147 | 1 | ||
| 18 | B97F53770000 | COLLAR WHEEL | ₹ 31 | 1 | ||
| 19 | B97F53830000 | COLLAR WHEEL | ₹ 38 | 1 | ||
| 20 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 21 | 902011581400 | WASHER PLAIN | ₹ 27 | 2 | ||
| 22 | 94568K312800 | CHAIN (R428NAR 128L) | ₹ 0 | 1 | ||
| 23 | 21CF53881100 | PULLER CHAIN 1 | ₹ 55 | 2 | ||
| 24 | 21CF21740000 | END 1 | ₹ 9 | 2 | ||
| 25 | 929070860000 | WASHER | ₹ 8 | 2 | ||
| 26 | 9530N0860000 | NUT HEX | ₹ 5 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The delivery of power for the Yamaha FZS V3 occurs through the robust Rear Wheel assembly. This unit features a high strength wheel together with the Clutch Hub which houses the vibration dampening Damper. High quality Bearings plus Oil Seals ensure the wheel rotates with minimal friction for better efficiency. The drive is managed by the Sprocket Driven Forty One Teeth together with the Chain R428nar 128l. Every Bolt Stud plus Nut U Flange ensures a secure connection for the drivetrain. The Axle Wheel provides the central support while the Puller Chain ensures precise adjustment of the chain tension. This assembly also includes a Rotor Sensor for the antilock braking system. The Valve Rim ensures the tire remains properly inflated for optimal grip. Authentic wheel parts are essential for the safety plus performance of the machine. It represents the final link in the power transmission system. Reliability plus strength are guaranteed.
