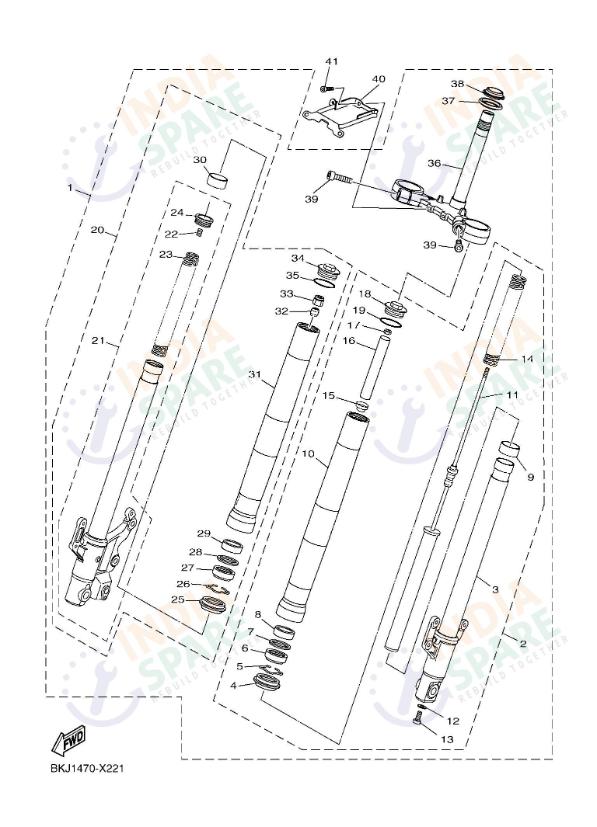

FRONT FORK
0
BXU3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BKJF31000000 | FRONT FORK ASSY | ₹ 23544 | 1 | ||
| 2 | BCWF31021000 | FRONT FORK ASSY (L.H) | ₹ 12297 | 1 | ||
| 3 | BCWF31101000 | INNER TUBE COMP.1 | ₹ 2971 | 1 | ||
| 4 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 5 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 6 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 7 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 8 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 9 | BCWF31710000 | PISTON, FRONT FORK | ₹ 120 | 1 | ||
| 10 | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | ||
| 11 | BCWF31700000 | CYLINDER COMP. FRONT FORK | ₹ 2112 | 1 | ||
| 12 | 2FSF31580000 | GASKET | ₹ 15 | 1 | ||
| 13 | BCWF31810000 | BOLT, HEXAGON SOCKET HEAD | ₹ 36 | 1 | ||
| 14 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 15 | BCWF31170000 | GUIDE, SPRING | ₹ 39 | 1 | ||
| 16 | BCWF31180000 | SPACER | ₹ 85 | 1 | ||
| 17 | BCWF33570000 | NUT | ₹ 24 | 1 | ||
| 18 | BCWF31111000 | BOLT, CAP | ₹ 361 | 1 | ||
| 19 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 20 | BCWF31031000 | FRONT FORK ASSY (R.H) | ₹ 10997 | 1 | ||
| 21 | BCWF31201000 | INNER TUBE COMP.2 | ₹ 2971 | 1 | ||
| 22 | BCWF22220000 | SPRING, SHOCK ABSORBER 2 | ₹ 27 | 1 | ||
| 23 | BCWF31410000 | SPRING FRONT FORK | ₹ 302 | 1 | ||
| 24 | BCWF319U0000 | CAP | ₹ 97 | 1 | ||
| 25 | B48F31440000 | SEAL DUST | ₹ 240 | 1 | ||
| 26 | BCWF31530000 | RING SNAP | ₹ 25 | 1 | ||
| 27 | BK6F31450000 | OIL SEAL | ₹ 313 | 1 | ||
| 28 | BCWF31490000 | WASHER SPRING UPPER | ₹ 34 | 1 | ||
| 29 | BCWF31250000 | METAL SLIDE 1 | ₹ 94 | 1 | ||
| 30 | BCWF31710000 | PISTON, FRONT FORK | ₹ 120 | 1 | ||
| 31 | BCWF31260000 | TUBE OUTER | ₹ 4053 | 1 | ||
| 32 | BCWF332K0000 | BUMP, STOP | ₹ 37 | 1 | ||
| 33 | BCWF33930000 | NUT, SPECIAL | ₹ 93 | 1 | ||
| 34 | BCWF31111000 | BOLT, CAP | ₹ 361 | 1 | ||
| 35 | BCWF31880000 | O-RING | ₹ 36 | 1 | ||
| 36 | BKJF33400000 | UNDER BRACKET COMP. | ₹ 3105 | 1 | ||
| 37 | 5YYF34620000 | SEAL DUST STEERING | ₹ 23 | 1 | ||
| 38 | 2FBF38750000 | .BEARING, STEERING LOWER | ₹ 0 | 1 | ||
| 39 | BCWF33460000 | BOLT 1 | ₹ 55 | 2 | ||
| 40 | BKJF34870000 | STAY PLATE | ₹ 176 | 1 | ||
| 41 | 950270601000 | BOLT FLANGE | ₹ 2 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA BXU3 MT15 V2 Series FRONT FORK
