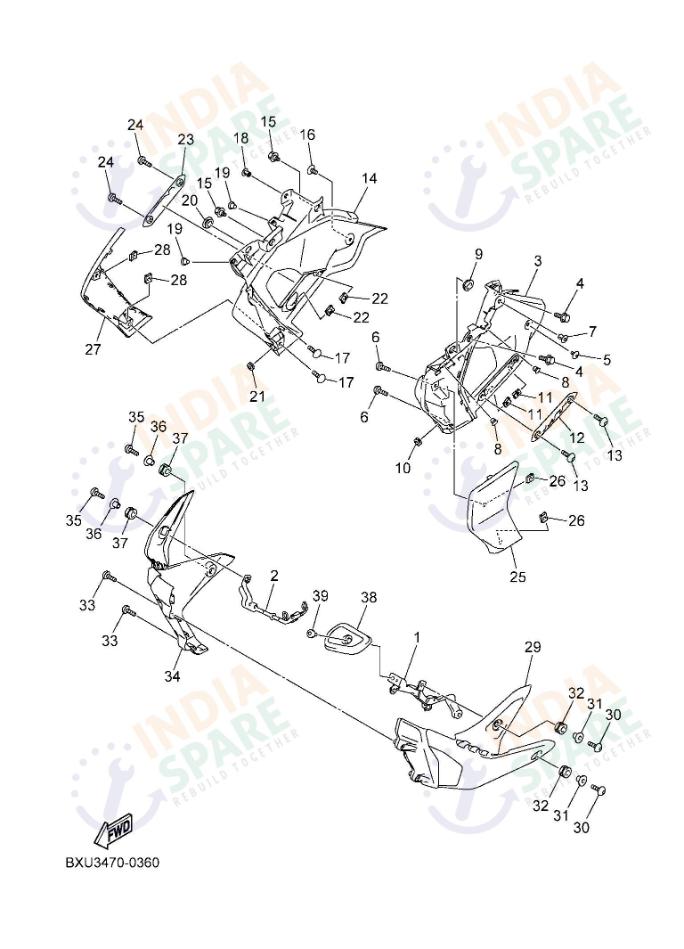

LEG SHIELD

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	BKJF82830000	BRACKET POUCH	₹ 665	1
2	BGMF82840000	BRACKET, UNDER	₹ 184	1
3	B9DF137U0200	GUIDE, AIR 1	₹ 120	1
4	901090620200	BOLT	₹ 13	2
5	901100610200	BOLT, HEXAGON SOCKET HEAD	₹ 39	1
6	977075001200	SCREW TRUSS HD TAP	₹ 5	2
7	902690681200	RIVET	₹ 20	1
8	903380718000	PLUG	₹ 84	2
9	904800155900	GROMMET	₹ 10	1
10	904801062300	GROMMET	₹ 8	1
11	901830580700	NUT SPRING	₹ 9	2
12	B9DF83360000	PLATE	₹ 50	1
13	901600581000	SCREW, ROUND TAPPING	₹ 4	2
14	B9DF137V0000	GUIDE AIR 2	₹ 120	1
15	901090620200	BOLT	₹ 13	2
16	901100610200	BOLT, HEXAGON SOCKET HEAD	₹ 39	1
17	977075001200	SCREW TRUSS HD TAP	₹ 5	2
18	902690681200	RIVET	₹ 20	1
19	903380718000	PLUG	₹ 84	2
20	904800155900	GROMMET	₹ 10	1
21	904801062300	GROMMET	₹ 8	1
22	901830580700	NUT SPRING	₹ 9	2
23	B9DF83360000	PLATE	₹ 50	1
24	901600581000	SCREW, ROUND TAPPING	₹ 4	2
25A	B9DF835U0098	PANEL 1	₹ 264	1		FOR LGB
25B	B9DF835U00P6	B9DF835U00P6	₹ 290	1		FOR S3
25C	B9DF835U00P3	PANEL 1	₹ 824	1		FOR SMX
26	901830580700	NUT SPRING	₹ 9	1
27A	B9DF835V0098	PANEL 2	₹ 264	1		FOR LGB
27B	B9DF835V00P6	B9DF835V00P6	₹ 290	1		FOR S3
27C	B9DF835V00P3	PANEL 2	₹ 824	1		FOR SMX
28	901830580700	NUT SPRING	₹ 9	2
29	B9DF83850000	COVER LOWER	₹ 165	1
30	901110686800	BOLT HEX. SOCKET BUTTON	₹ 26	2
31	903870689900	COLLAR	₹ 30	2
32	904801280800	GROMMET	₹ 10	2
33	977075001600	SCREW TRUSS HD.TAP	₹ 4	2
34	B9DF83950000	COVER UNDER	₹ 165	1
35	901110686800	BOLT HEX. SOCKET BUTTON	₹ 26	2
36	903870689900	COLLAR	₹ 30	2
37	904801280800	GROMMET	₹ 10	2
38	B9DF83650000	COVER	₹ 21	1
39	90109068B300	BOLT	₹ 19	1

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA BXU3 MT15 V2 Series LEG SHIELD
