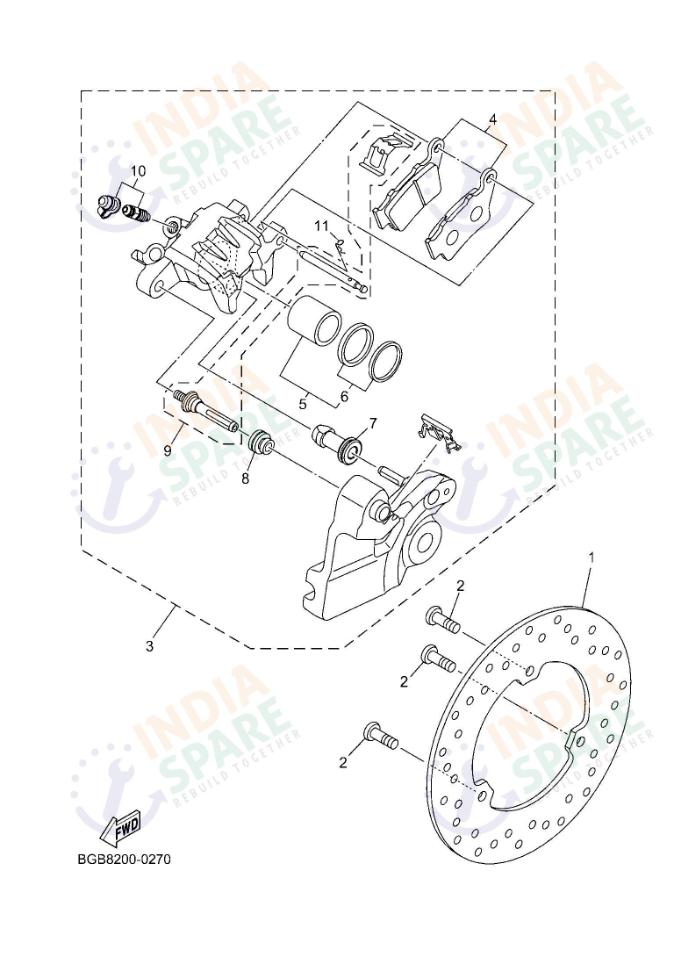

REAR BRAKE CALIPER
BXU3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B97F582W0000 | DISK REAR BRAKE 2 | ₹ 1005 | 1 | ||
| 2 | 901110802900 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 3 | ||
| 3 | BPDF580W0000 | CALIPER ASSY, REAR 2 | ₹ 3429 | 1 | ||
| 4 | BPDF58060000 | BRAKE PAD SET | ₹ 917 | 1 | ||
| 5 | BPDF58025000 | PISTON ASSY, CALIP | ₹ 184 | 1 | ||
| 6 | BPDF58035000 | CALIPER SEAL KIT | ₹ 46 | 1 | ||
| 7 | 54BF59370000 | BOOT 2 | ₹ 27 | 1 | ||
| 8 | 54BF59170000 | BOOT CALIPER | ₹ 23 | 1 | ||
| 9 | BPDWF5990000 | PAD SPRING AND PIN SET | ₹ 87 | 1 | ||
| 10 | BPDW00480000 | BLEED SCREW SET | ₹ 36 | 1 | ||
| 11 | BPDF59250000 | CLIP | ₹ 20 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Stop with absolute confidence using the MT15 Rear Brake Caliper assembly, a critical component for high-performance riding. This kit features the Caliper Assy Rear 2 and the heavy-duty Disk Rear Brake 2, designed for maximum stopping power and heat dissipation. Internal reliability is ensured by the Piston Assy Calip and the Caliper Seal Kit, providing smooth piston movement and a consistent lever feel. The set is complete with the Brake Pad Set, Pad Spring and Pin Set, and Bleed Screw Set for a professional installation. To protect the hydraulic system, we include the Boot 2 and Boot Caliper. Every Bolt Hex. Socket Button and Clip is included to ensure a secure, leak-free connection. These genuine parts offer the technical clarity of a factory-tuned braking system and the purchase confidence needed for aggressive city riding. As a storyteller, you know that control is everything; this genuine Yamaha caliper assembly provides the stopping power and reliability to make every journey safe and spirited on the road.
