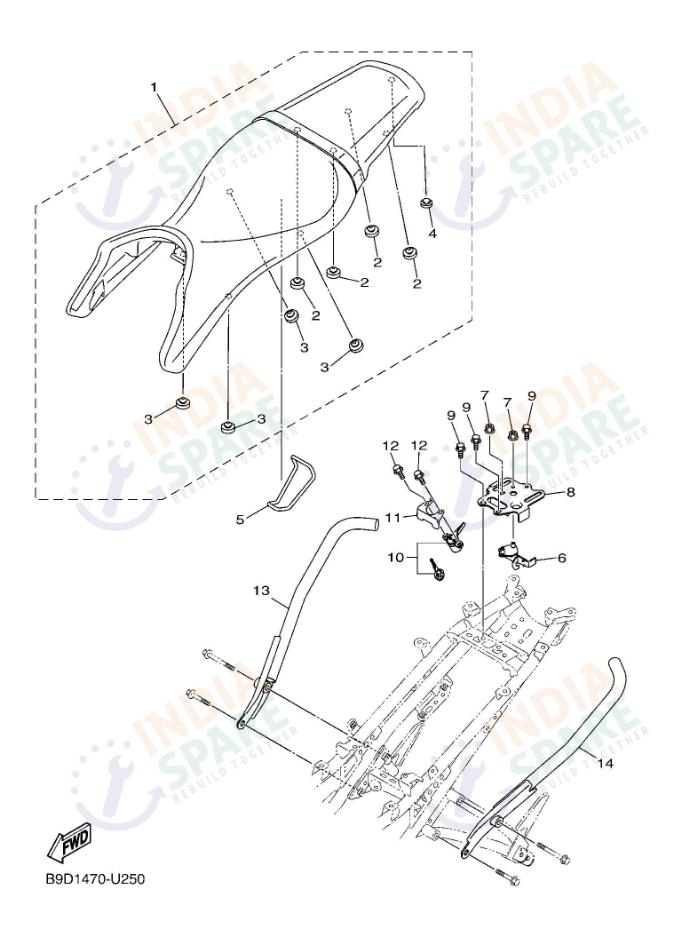

SEAT
0
BXU3
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9DF47300000 | DOUBLE SEAT ASSY | ₹ 1912 | 1 | ||
| 2 | 4LSF47410000 | PAD SEAT | ₹ 8 | 4 | ||
| 3 | 1PMF47410000 | PAD SEAT | ₹ 29 | 4 | ||
| 4 | B9DF47410000 | PAD, SEAT | ₹ 18 | 1 | ||
| 5 | 20PH21310000 | BAND, BATTERY | ₹ 24 | 1 | ||
| 6 | B9DF47800000 | SEAT LOCK ASSY | ₹ 88 | 1 | ||
| 7 | 957070650000 | NUT FLANGE | ₹ 5 | 2 | ||
| 8 | B9DF478X0000 | BRACKET SEAT LOCK | ₹ 89 | 1 | ||
| 9 | 958220601400 | BOLT FLANGE | ₹ 4 | 3 | ||
| 10 | B9DWF4790000 | ROTOR SUB ASSY WIT | ₹ 155 | 1 | ||
| 11 | B9DF479K0000 | PLATE LOCK | ₹ 23 | 1 | ||
| 12 | 950220601600 | BOLT, FLANGE | ₹ 11 | 2 | ||
| 13 | B9DF474A0000 | ASSIST GRIP | ₹ 313 | 1 | ||
| 14 | B9DF474W0000 | ASSIST GRIP 2 | ₹ 313 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA BXU3 MT15 V2 Series SEAT
