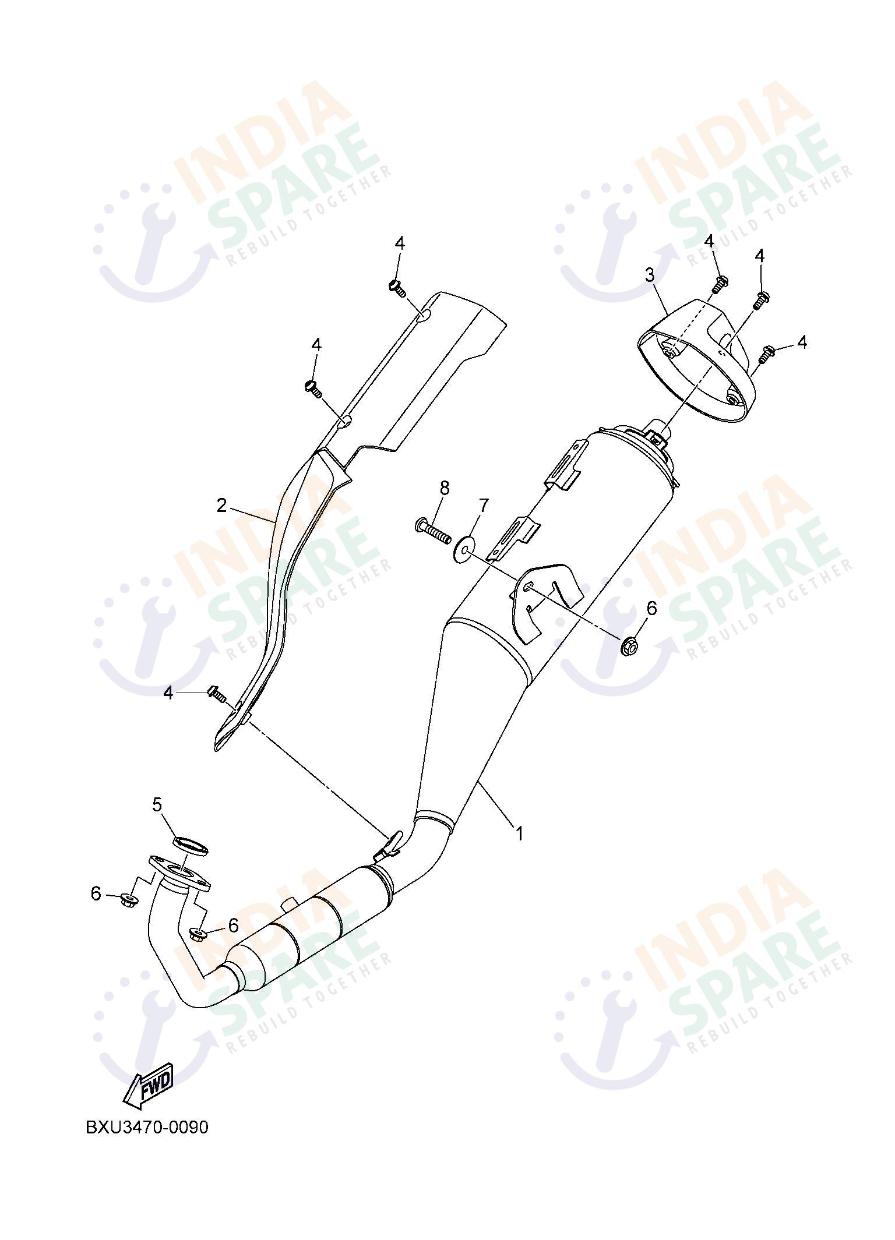

EXHAUST
0
BXU5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BGME47031000 | MUFFLER COMP. 1 | ₹ 12380 | 1 | ||
| 2 | BK7E47180100 | PROTECTOR MUFFLER 1 | ₹ 304 | 1 | ||
| 3 | BK7E47990000 | CAP | ₹ 267 | 1 | ||
| 4 | 901110686400 | BOLT HEX. SOCKET BUTTON | ₹ 7 | 6 | ||
| 5 | BK7E46130000 | GASKET EXHAUST PIPE | ₹ 44 | 1 | ||
| 6 | 957070850000 | NUT FLANGE | ₹ 6 | 3 | ||
| 7 | 902010861200 | WASHER SPECIAL | ₹ 8 | 1 | ||
| 8 | 901490822000 | SCREW | ₹ 95 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - YAMAHA BXU5 MT15 V2 Series EXHAUST
