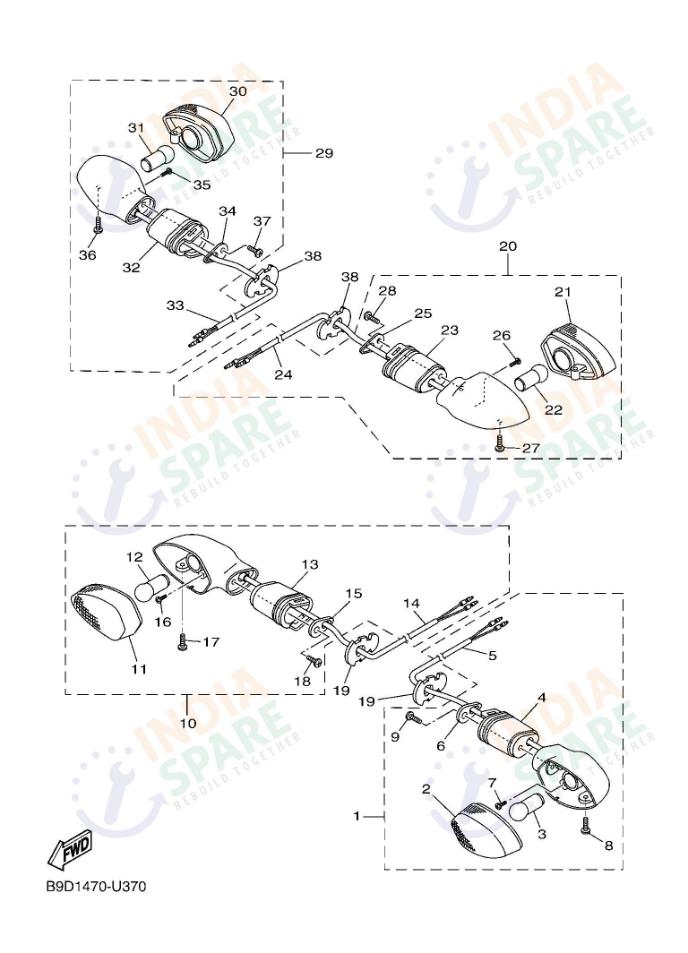

FLASHER LIGHT
BXU5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B1PH33100000 | FRONT FLASHER LIGHT ASSY 1 | ₹ 200 | 1 | ||
| 2 | B1PH334A0000 | LENS COMP | ₹ 50 | 1 | ||
| 3 | 2FBH33110000 | BULB FLASHER M12/6 | ₹ 35 | 1 | ||
| 4 | 20PH33180000 | STAY FLASHER 1 | ₹ 24 | 1 | ||
| 5 | 1CKH331E0000 | CORD ASSY | ₹ 27 | 1 | ||
| 6 | 20PH36180000 | PLATE | ₹ 4 | 1 | ||
| 7 | 20PH213A0000 | SCREW, FITTING | ₹ 1 | 1 | ||
| 8 | 20PH33330000 | SCREW LENS FITTING | ₹ 1 | 1 | ||
| 9 | 20PH21330000 | SCREW FITTING | ₹ 1 | 1 | ||
| 10 | B1PH33200000 | FRONT FLASHER LIGHT ASSY 2 | ₹ 200 | 1 | ||
| 11 | B1PH333A0000 | LENS COMP | ₹ 50 | 1 | ||
| 12 | 2FBH33110000 | BULB FLASHER M12/6 | ₹ 35 | 1 | ||
| 13 | 20PH33180000 | STAY FLASHER 1 | ₹ 24 | 1 | ||
| 14 | 1CKH332E0000 | CORD ASSY | ₹ 27 | 1 | ||
| 15 | 20PH36180000 | PLATE | ₹ 4 | 1 | ||
| 16 | 20PH213A0000 | SCREW, FITTING | ₹ 1 | 1 | ||
| 17 | 20PH33330000 | SCREW LENS FITTING | ₹ 1 | 1 | ||
| 18 | 20PH21330000 | SCREW FITTING | ₹ 1 | 1 | ||
| 19 | 2LPH33180000 | STAY FLASHER 1 | ₹ 5 | 2 | ||
| 20 | B9DH33301000 | REAR FLASHER LIGHT ASSY 1 | ₹ 204 | 1 | ||
| 21 | B1PH334A0000 | LENS COMP | ₹ 50 | 1 | ||
| 22 | 2FBH33110000 | BULB FLASHER M12/6 | ₹ 35 | 1 | ||
| 23 | 20PH33180000 | STAY FLASHER 1 | ₹ 24 | 1 | ||
| 24 | B9DH333E1000 | CORD ASS'Y | ₹ 37 | 1 | ||
| 25 | 20PH36180000 | PLATE | ₹ 4 | 1 | ||
| 26 | 20PH213A0000 | SCREW, FITTING | ₹ 1 | 1 | ||
| 27 | 20PH33330000 | SCREW LENS FITTING | ₹ 1 | 1 | ||
| 28 | 20PH21330000 | SCREW FITTING | ₹ 1 | 1 | ||
| 29 | B9DH33401000 | FLASHER LIGHT ASSY 2 | ₹ 204 | 1 | ||
| 30 | B1PH333A0000 | LENS COMP | ₹ 50 | 1 | ||
| 31 | 2FBH33110000 | BULB FLASHER M12/6 | ₹ 35 | 1 | ||
| 32 | 20PH33180000 | STAY FLASHER 1 | ₹ 24 | 1 | ||
| 33 | B9DH334E1000 | CORD ASS'Y | ₹ 37 | 1 | ||
| 34 | 20PH36180000 | PLATE | ₹ 4 | 1 | ||
| 35 | 20PH213A0000 | SCREW, FITTING | ₹ 1 | 1 | ||
| 36 | 20PH33330000 | SCREW LENS FITTING | ₹ 1 | 1 | ||
| 37 | 20PH21330000 | SCREW FITTING | ₹ 1 | 1 | ||
| 38 | 2LPH33180000 | STAY FLASHER 1 | ₹ 5 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Signalling your intentions with clarity is vital for safety, and the Flasher Light assembly delivers comprehensive coverage for your Aerox. This set includes the Front Flasher Light Assy 1 and 2, along with the Rear Flasher Light Assy 1 and 2. Each unit is equipped with a high-output Bulb Flasher M12/6 and protected by a durable Lens Comp. The kit is built for long-term durability, featuring the Stay Flasher 1, Plate, and Screw Fitting hardware to resist road vibration. We’ve also included the specific Cord Assy and Screw Lens Fitting components for a seamless electrical integration. These signals are designed to be bright enough to cut through city glare, offering the technical clarity and purchase confidence required for safe lane changes. Don’t compromise your safety with dim imitations; choose the genuine Yamaha flasher set for professional performance and the confidence of being seen. Every Screw and Plate is factory-engineered to meet the exact tolerances of your high-performance scooter.
