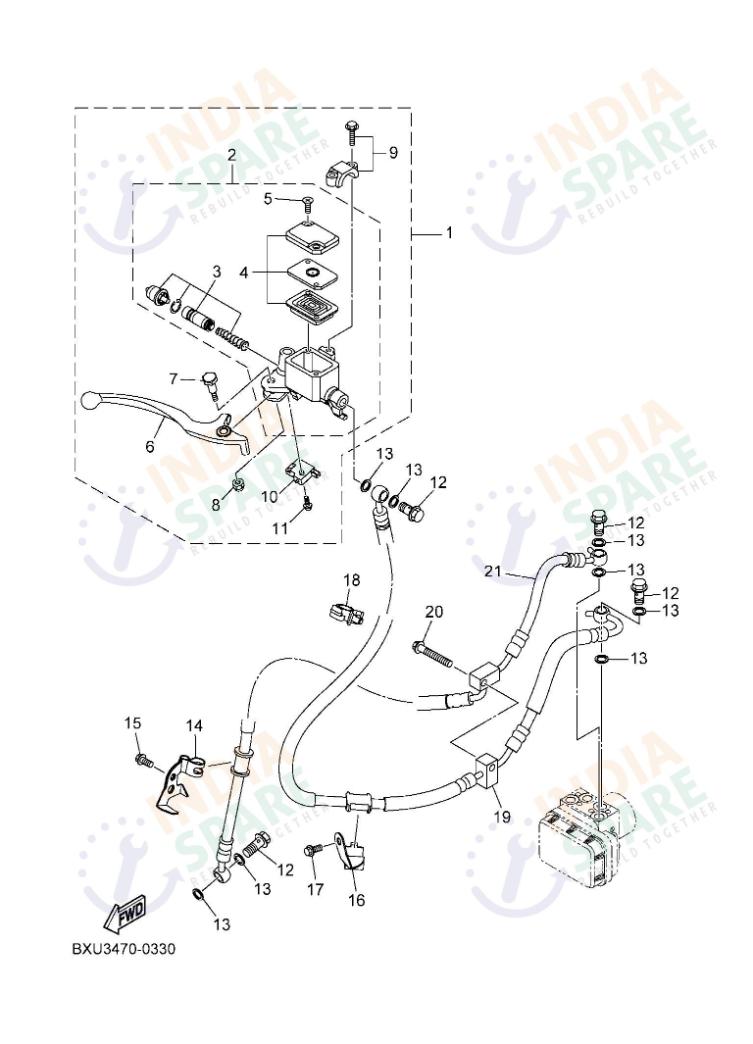

FRONT MASTER CYLINDER
BXU5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF583T0000 | MASTER CYLINDER ASSY | ₹ 1539 | 1 | ||
| 2 | BPDF580A0000 | MASTER CYLINDER SU | ₹ 2304 | 1 | ||
| 3 | BPDF58070000 | CYLINDER KIT, MAST | ₹ 525 | 1 | ||
| 4 | BPDWF5850000 | CAP RESERVOIR KIT | ₹ 474 | 1 | ||
| 5 | 54BF589H0000 | SCREW | ₹ 5 | 2 | ||
| 6 | B97H39220000 | LEVER 2 | ₹ 193 | 1 | ||
| 7 | 901090685900 | BOLT | ₹ 14 | 1 | ||
| 8 | 54BF63380000 | NUT ADJUSTING | ₹ 6 | 1 | ||
| 9 | BPDWF5860000 | CLAMP SCREW KIT | ₹ 359 | 1 | ||
| 10 | B97H39800000 | FRONT STOP SWITCH | ₹ 81 | 1 | ||
| 11 | B97F589H0000 | SCREW | ₹ 5 | 1 | ||
| 12 | 904011001500 | BOLT UNION | ₹ 34 | 4 | ||
| 13 | 902011011800 | WASHER PLAIN | ₹ 5 | 8 | ||
| 14 | BKJF58750000 | HOLDER BRAKE HOSE 1 | ₹ 51 | 1 | ||
| 15 | 950220602500 | BOLT FLANGE | ₹ 11 | 1 | ||
| 16 | BKJF58751000 | HOLDER BRAKE HOSE 1 | ₹ 28 | 1 | ||
| 17 | 950270601000 | BOLT FLANGE | ₹ 2 | 1 | ||
| 18 | 904641401300 | CLAMP | ₹ 11 | 1 | ||
| 19 | BXUF584A0000 | BRAKE HOSE ASSY | ₹ 1755 | 1 | ||
| 20 | 950220603000 | BOLT FLANGE | ₹ 14 | 1 | ||
| 21 | BXUF584B0000 | HOSE, BRAKE | ₹ 1435 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Achieve ultimate stopping control with the Front Master Cylinder assembly, the core of your Aeroxs hydraulic power. This kit features the Master Cylinder Sub Assy and Cylinder Kit Mast, ensuring a consistent, firm lever feel. Safety is prioritized with the Cap Reservoir Kit, Diaphragm Reservoir, and a specialized Screw set to keep your fluid pure. The assembly includes the ergonomic Lever 2 and its mounting Bolt and Nut Adjusting. Connectivity is handled by the high-pressure Hose Brake and Hose Brake 2, secured by the Bolt Union and Washer Plain. To keep your lines organized, we provide the Holder Brake Hose 1, Clamp, and Bolt Flange units. The kit also features the Front Stop Switch and its mounting Screw for instant safety communication. These parts offer the technical clarity of a perfectly calibrated braking system and the purchase confidence of genuine Yamaha engineering. For the storyteller who values performance, this master cylinder is the only choice for a factory-standard rebuild.
