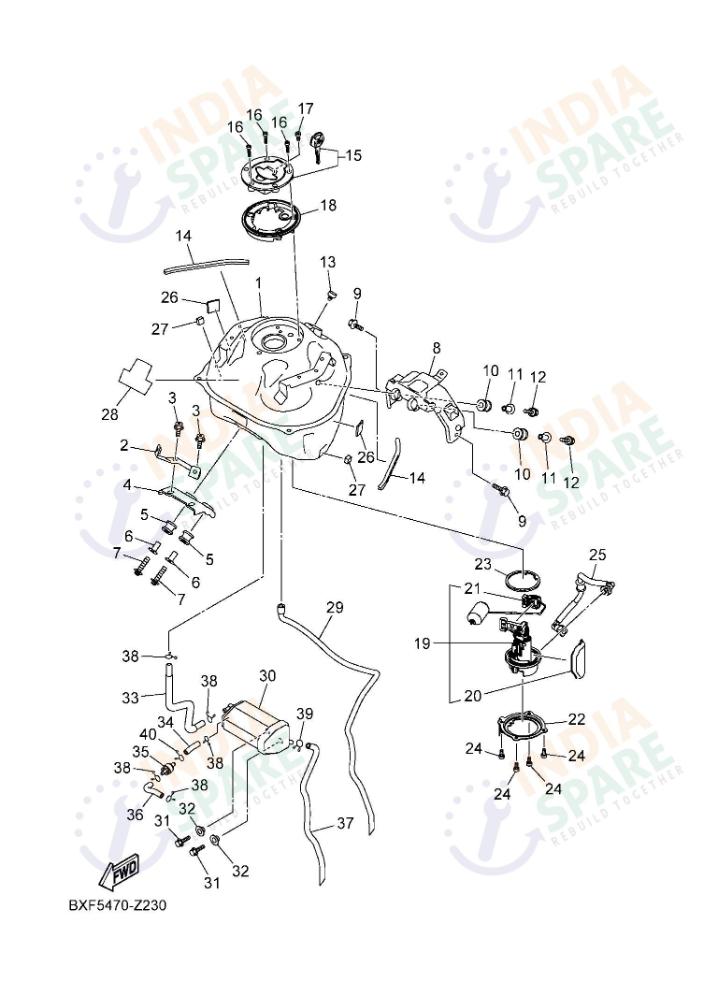

FUEL TANK

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	B9DF41100000	FUEL TANK COMP.	₹ 2438	1
2	B9DF411F0000	PLATE FITTING	₹ 43	1
3	901100805200	BOLT HEXAGON SOCKET HEAD	₹ 16	2
4	B9DF412Y0000	BRKT. TANK FITTING FR.	₹ 159	1
5	904801881300	GROMMET	₹ 18	2
6	90387068M300	COLLAR	₹ 12	2
7	950220603000	BOLT FLANGE	₹ 14	2
8	B9DF41910000	BRACKET FUEL TANK 1	₹ 343	1
9	901100624500	BOLT HEXAGON SOCKET HEAD	₹ 25	2
10	904801881300	GROMMET	₹ 18	2
11	90387068M300	COLLAR	₹ 12	2
12	950220603000	BOLT FLANGE	₹ 14	2
13	903380681300	PLUG	₹ 10	1
14	B9DF12780000	MOLD	₹ 13	2
15	2FBWF4610200	CAP ASSY WITH LOCK	₹ 0	1
16	901100580600	BOLT HEXAGON SOCKET HEAD	₹ 12	3
17	913120501000	BOLT	₹ 8	1
18	B97F414F0000	COVER, FILLER COMP.	₹ 33	1
19	BCFE39070100	FUEL PUMP COMP.	₹ 6072	1
20	B7JE39150000	FILTER	₹ 211	1
21	BCFH57520000	SENDER UNIT ASSY FUEL METER	₹ 892	1
22	BCFF44910000	BRACKET FUEL PUMP	₹ 90	1
23	2GSF414G0100	SEAL	₹ 160	1
24	913120501000	BOLT	₹ 8	4
25	B0TE39710000	PIPE FUEL 1	₹ 523	1
26	905200380000	SEAT PIPE	₹ 7	2
27	905200800700	SEAT PIPE	₹ 5	2
28	B9DF414J0000	DAMPER PLATE 2	₹ 32	1
29	BK7F43120000	PIPE 2	₹ 56	1
30	2FBF41701100	CANISTER ASSY	₹ 505	1
31	970120601400	BOLT	₹ 5	2
32	903870604800	COLLAR	₹ 7	2
33	BK7F43130000	PIPE 3	₹ 30	1
34	BCWF43140000	PIPE 4	₹ 12	1
35	B7JF44210100	VALVE, CHECK	₹ 115	1
36	BCWF43160000	PIPE 6	₹ 12	1
37	2FBF43150000	PIPE 5	₹ 25	1
38	904670900600	CLIP	₹ 5	5
39	90467100A100	CLIP	₹ 3	1
40	904671100900	CLIP	₹ 37	1

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA BXU5 MT15 V2 Series FUEL TANK
