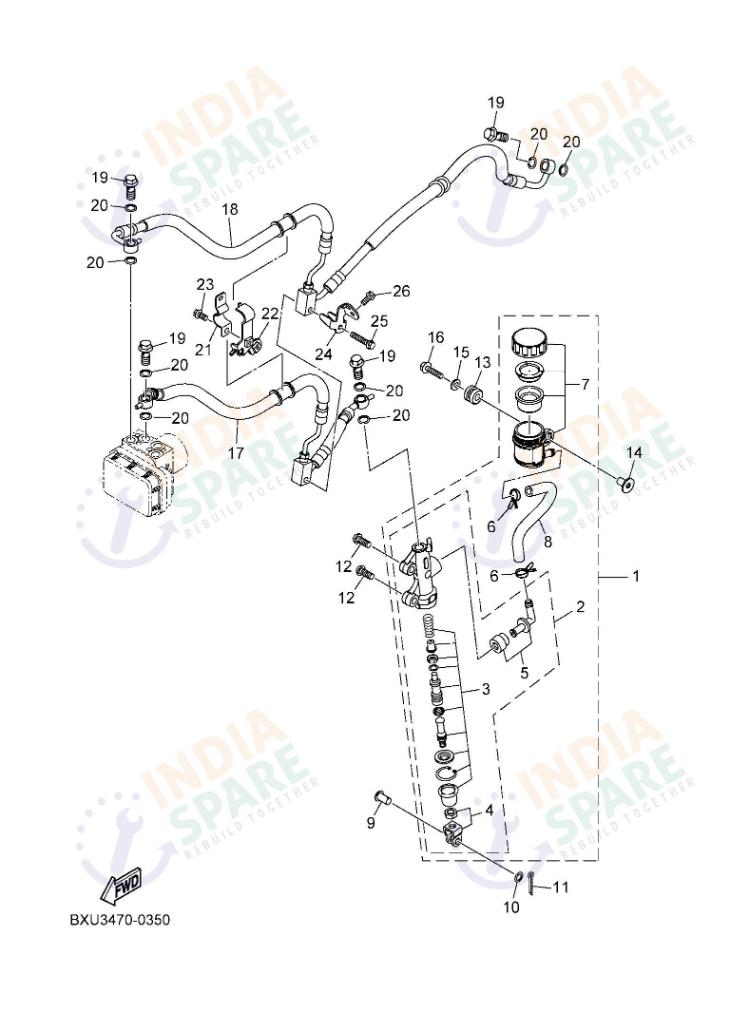

REAR MASTER CYLINDER
BXU5
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BXUF580E0000 | REAR MASTER CYLINDER ASSY | ₹ 1903 | 1 | ||
| 2 | BPDF583V0000 | RR. MASTER CYLINDE | ₹ 2198 | 1 | ||
| 3 | BPDF58080000 | CYLINDER KIT, MAST | ₹ 562 | 1 | ||
| 4 | BPDWF7220000 | PUSH ROD SET | ₹ 387 | 1 | ||
| 5 | BPDWF5820000 | CONNECTOR AND BUSH SET | ₹ 27 | 1 | ||
| 6 | BPDF72680000 | CLIP, WIRE | ₹ 36 | 2 | ||
| 7 | BPDF58045000 | RESERVE TANK ASSY. | ₹ 92 | 1 | ||
| 8 | BXUF58950000 | HOSE, RESERVOIR | ₹ 46 | 1 | ||
| 9 | 902400800500 | PIN CLEVIS | ₹ 52 | 1 | ||
| 10 | 902010806600 | WASHER PLATE | ₹ 14 | 1 | ||
| 11 | 902521880000 | PIN SPLIT | ₹ 1 | 1 | ||
| 12 | 920170802500 | BOLT BUTTON HEAD | ₹ 48 | 2 | ||
| 13 | BK7F47420000 | GROMMET | ₹ 10 | 1 | ||
| 14 | BK7F62590000 | COLLAR | ₹ 42 | 1 | ||
| 15 | 902010682800 | WASHER PLATE | ₹ 4 | 1 | ||
| 16 | 958020602500 | BOLT FLANGE | ₹ 6 | 1 | ||
| 17 | BXUF584C0000 | HOSE, BRAKE | ₹ 2250 | 1 | ||
| 18 | BXUF584D0000 | HOSE, BRAKE | ₹ 2250 | 1 | ||
| 19 | 904011001500 | BOLT UNION | ₹ 34 | 4 | ||
| 20 | 902011011800 | WASHER PLAIN | ₹ 5 | 8 | ||
| 21 | BGMF58860000 | HOLDER, BRAKE HOSE | ₹ 69 | 1 | ||
| 22 | BGMF58861000 | HOLDER, BRAKE HOSE | ₹ 69 | 1 | ||
| 23 | 950220601000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 24 | B9EF58870000 | HOLDER BRAKE HOSE | ₹ 20 | 1 | ||
| 25 | 950220603000 | BOLT FLANGE | ₹ 14 | 1 | ||
| 26 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Experience surgical precision in your rear braking with the Rear Master Cylinder assembly. This comprehensive kit features the RR. Master Cylinder Assy and its dedicated Cylinder Kit Mast for smooth, consistent hydraulic pressure. The system is complete with the Reserve Tank Assy, Hose Reservoir, and a high-durability Hose Brake. Reliability is prioritized via the Push Rod Set, Connector and Bush Set, and essential hardware like the Pin Clevis, Pin Split, and Washer Plate. We’ve included a series of Holder Brake Hose units and various Bolt Flange and Bolt Union units to ensure a leak-free, perfectly routed line. The assembly is secured by specialized Bolt Button Head and Collar hardware for a professional finish. These parts offer the technical clarity of a perfectly bled system and the purchase confidence that only genuine Yamaha engineering can provide. For the storyteller who enjoys technical riding, this master cylinder kit is the essential choice for restoring factory-standard braking response and safety.
