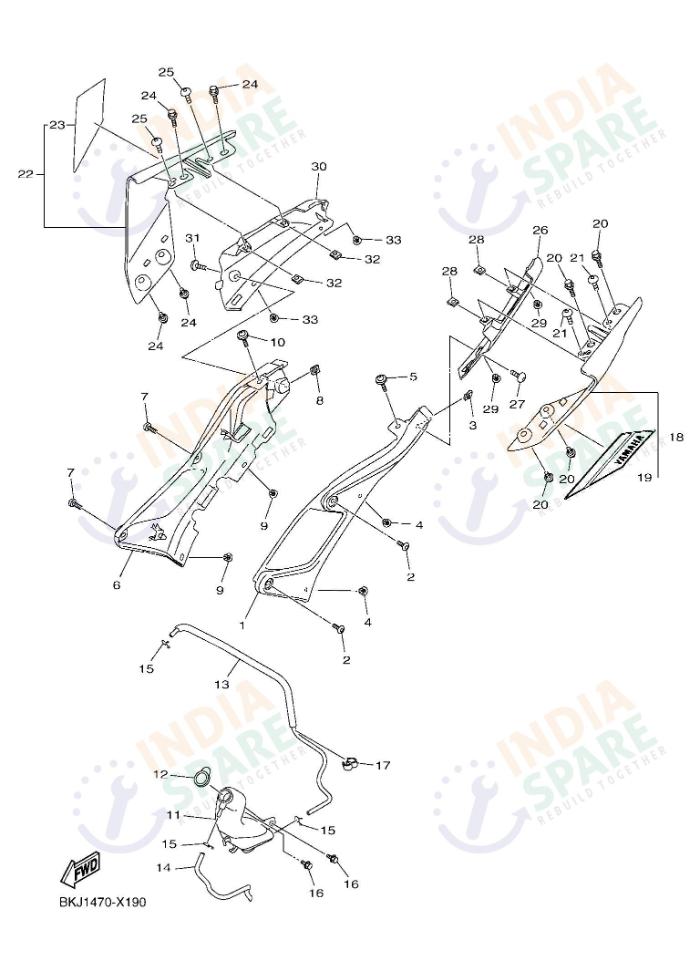

SIDE COVER

Ref No	Part No	Part Name	Rate	Qnty	Order	Remarks
1	B9DF17110100	COVER SIDE 1	₹ 133	1
2	901110685600	BOLT,HEX. SOCKET BUTTON	₹ 8	2
3	901830580700	NUT SPRING	₹ 9	1
4	902690681200	RIVET	₹ 20	2
5	901590686000	SCREW, WITH WASHER	₹ 12	1
6	B9DF17210100	COVER, SIDE 2	₹ 133	1
7	901110685600	BOLT,HEX. SOCKET BUTTON	₹ 8	2
8	901830580700	NUT SPRING	₹ 9	1
9	902690681200	RIVET	₹ 20	2
10	901590686000	SCREW, WITH WASHER	₹ 12	1
11	BK7F18710000	TANK RECOVERY	₹ 105	1
12	BK7F18750000	CAP	₹ 12	1
13	BK7F18170000	PIPE 2	₹ 81	1
14	BK7F247A0000	HOSE 1	₹ 11	1
15	904670800300	CLIP OIL PIPE	₹ 8	3
16	901090622000	BOLT	₹ 19	2
17	904681581100	CLIP	₹ 5	1
18A	B9DXF17340P0	COVER SIDE 3	₹ 733	1		FOR SMX
18B	BXUXF17300P0	BXUXF17300P0	₹ 737	1		FOR CM7
19A	BKJF173E0000	GRAPHIC 1	₹ 45	1		FOR SMX
19B	BXUF173E3000	BXUF173E3000	₹ 75	1		FOR CM7
20	90109068B200	BOLT	₹ 13	4
21	977075001600	SCREW TRUSS HD.TAP	₹ 4	2
22A	B9DXF17440P0	COVER SIDE 4	₹ 733	1		FOR SMX
22B	BXUXF17400P0	BXUXF17400P0	₹ 737	1		FOR CM7
23A	BKJF173F0000	GRAPHIC 2	₹ 45	1		FOR SMX
23B	BXUF173F3000	BXUF173F3000	₹ 75	1		FOR CM7
24	90109068B200	BOLT	₹ 13	4
25	977075001600	SCREW TRUSS HD.TAP	₹ 4	2
26	B9DF171E0000	COVER SIDE 5	₹ 60	1
27	977075001600	SCREW TRUSS HD.TAP	₹ 4	1
28	901830580700	NUT SPRING	₹ 9	2
29	902690681200	RIVET	₹ 20	2
30	B9DF171X0000	COVER, SIDE 6	₹ 60	1
31	977075001600	SCREW TRUSS HD.TAP	₹ 4	1
32	901830580700	NUT SPRING	₹ 9	2
33	902690681200	RIVET	₹ 20	2

Color Legend:

• Red: Canceled part - unavailable for any operations.
• Blue: Part of a kit - cannot be ordered individually.
• Gray (Dimmed): Disabled part - non-interactive for various reasons.
• Part Number : Superseded part - replaced by a newer part.

Description: - YAMAHA BXU5 MT15 V2 Series SIDE COVER
