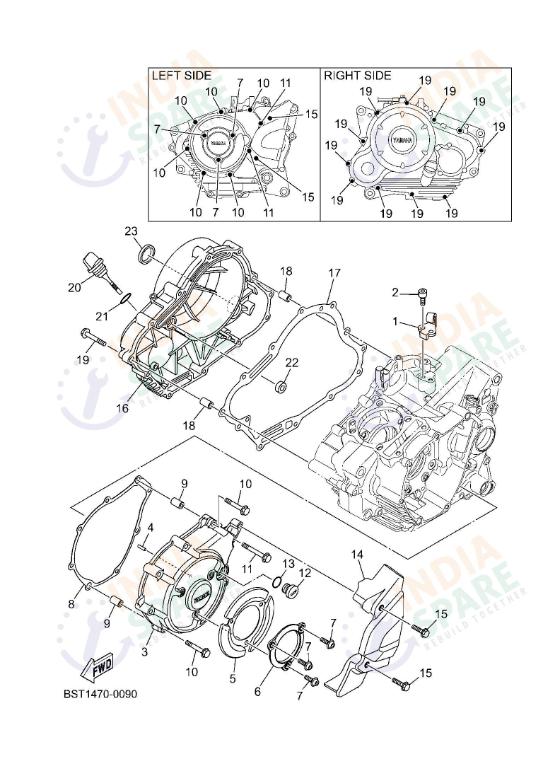

CRANKCASE COVER 1
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CE54410000 | HOLDER CLUTCH CABLE | ₹ 13 | 1 | ||
| 2 | 913120601400 | BOLT | ₹ 5 | 2 | ||
| 3 | BSTE54110000 | COVER, CRANKCASE 1 | ₹ 1152 | 1 | ||
| 4 | 994800301200 | PIN | ₹ 7 | 1 | ||
| 5 | BSTE54170000 | COVER, CAP | ₹ 428 | 1 | ||
| 6 | BSTE54270000 | COVER, CAP 2 | ₹ 216 | 1 | ||
| 7 | 901110680700 | BOLT HEX. WITH WASHER | ₹ 30 | 3 | ||
| 8 | BSTE54510000 | GASKET, CRANKCASE COVER 1 | ₹ 15 | 1 | ||
| 9 | 918302101400 | PIN DOWEL | ₹ 3 | 2 | ||
| 10 | 950220604000 | BOLT FLANGE | ₹ 18 | 6 | ||
| 11 | 950220605000 | BOLT FLANGE | ₹ 17 | 2 | ||
| 12 | 903401411700 | PLUG STRAIGHT SCREW-BLACK | ₹ 11 | 1 | ||
| 13 | 932101489900 | O RING | ₹ 9 | 1 | ||
| 14 | BSTE54180000 | COVER, CHAIN CASE | ₹ 156 | 1 | ||
| 15 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 16 | 21CE54210000 | COVER CRANKCASE 2 | ₹ 857 | 1 | ||
| 17 | BSTE54610000 | GASKET, CRANKCASE COVER 2 | ₹ 100 | 1 | ||
| 18 | 918302101400 | PIN DOWEL | ₹ 3 | 2 | ||
| 19 | 950220604000 | BOLT FLANGE | ₹ 18 | 11 | ||
| 20 | 54BE53620000 | PLUG OIL LEVEL | ₹ 16 | 1 | ||
| 21 | 932101980900 | O RING | ₹ 4 | 1 | ||
| 22 | 931011083800 | OIL SEAL IN RH COVER | ₹ 18 | 1 | ||
| 23 | 903383080200 | PLUG | ₹ 89 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting the vital heart of your engine is the primary task of this high quality crankcase cover assembly. Featuring the durable Cover Crankcase plus a precision Gasket Crankcase Cover, it ensures a perfect oil tight seal for all your journeys. The assembly includes functional parts like the Holder Clutch Cable plus the Plug Oil Level with its dedicated O Ring, allowing for easy monitoring of engine health. Additional convenience is provided by the Cap Cover plus various Bolt Hex With Washer hardware for a secure plus professional fit. The Cover Chain Case shields the drive system from road debris, while every Pin Dowel ensures perfect alignment. The sleek finish of the cover enhances the engine appearance, while the Plug Straight Screw provides a clean finish. This assembly is essential for your engine lubrication plus cooling, ensuring that your motorcycle remains reliable, powerful, plus clean on every road you choose to explore in India.
