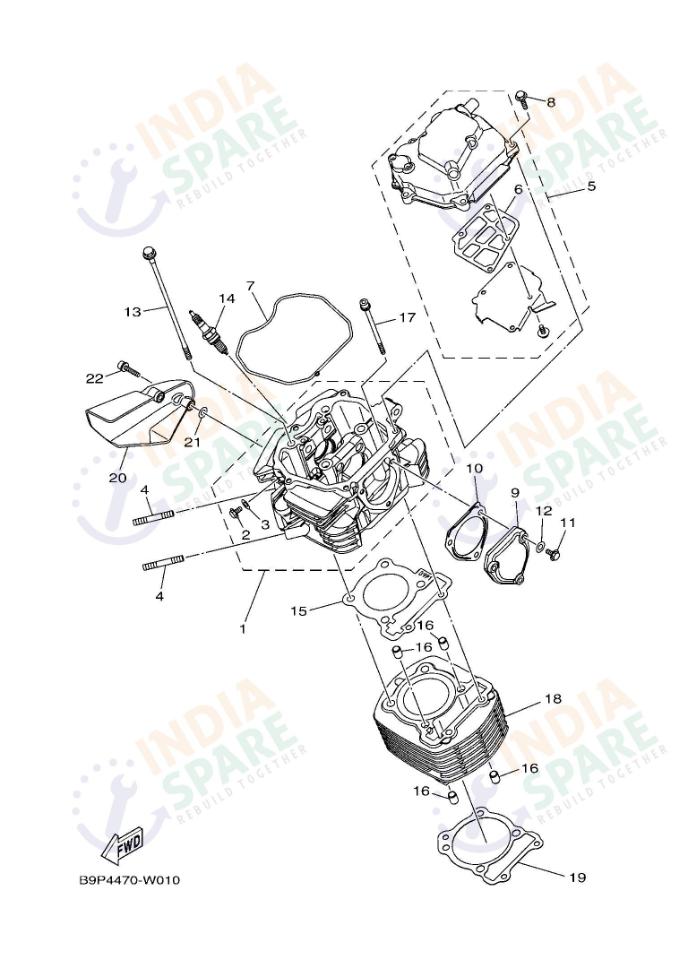

CYLINDER
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BACE11020000 | CYLINDER HEAD ASSY | ₹ 2891 | 1 | ||
| 2 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 3 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 4 | 956120863500 | BOLT STUD | ₹ 11 | 2 | ||
| 5 | BSTE11900000 | COVER, CYLINDER HEAD 1 | ₹ 562 | 1 | ||
| 6 | BSTE11690000 | GASKET, BREATHER COVER | ₹ 10 | 1 | ||
| 7 | 2GSE11932000 | GASKET HEAD COVER 1 | ₹ 75 | 1 | ||
| 8 | 950220602500 | BOLT FLANGE | ₹ 11 | 5 | ||
| 9 | 2GSE11860000 | COVER CYLINDER HEAD SIDE | ₹ 87 | 1 | ||
| 10 | BSTE24350000 | GASKET | ₹ 35 | 1 | ||
| 11 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 12 | 904300681700 | GASKET | ₹ 8 | 3 | ||
| 13 | 90105088K000 | BOLT, FLANGE | ₹ 60 | 4 | ||
| 14 | 947030088500 | SPARK PLUG | ₹ 190 | 1 | ||
| 15 | B9PE11810000 | GASKET CYLINDER HEAD 1 | ₹ 148 | 1 | ||
| 16 | 918101480400 | PIN DOWEL | ₹ 7 | 4 | ||
| 17 | 901100687000 | BOLT, HEXAGON SOCKET HEAD | ₹ 35 | 2 | ||
| 18 | BACE13100000 | CYLINDER | ₹ 0 | 1 | ||
| 19 | 21CE13511000 | GASKET CYLINDER | ₹ 85 | 1 | ||
| 20 | 21CE26611000 | DUCT | ₹ 59 | 1 | ||
| 21 | 902010582000 | WASHER PLATE | ₹ 12 | 2 | ||
| 22 | 901100625600 | BOLT, HEXAGON SOCKET HEAD | ₹ 42 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Maintaining peak power plus cooling efficiency is the responsibility of this premium cylinder head assembly designed for the modern rider. Featuring the high strength Cylinder Head Assy plus the precision machined Cylinder, it provides a perfect environment for high performance combustion. The Gasket Cylinder Head plus Gasket Cylinder ensure an absolute seal for both pressure plus lubricants. Every Spark Plug plus Bolt Stud is engineered for long life under high thermal stress, ensuring consistent ignition plus structural stability. The assembly includes protective covers like the Cover Cylinder Head plus various Gaskets to keep the top end clean, quiet, plus efficient. Secured by high grade Bolt Flange plus Bolt Hexagon Socket Head hardware, the cylinder assembly is built to withstand the rigors of high speed travel in any climate. This is the heart of your motorcycle performance, engineered to provide the power plus reliability you need for every adventure you take.
