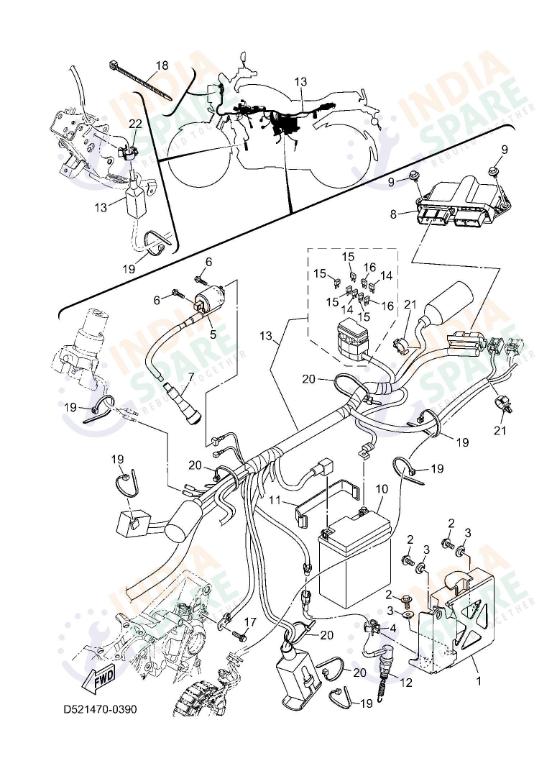

ELECTRICAL 1
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BSTF177G0000 | BOX, BATTERY | ₹ 87 | 1 | ||
| 2 | 901190620900 | BOLT WITH WASHER | ₹ 17 | 3 | ||
| 3 | 90387068M600 | COLLAR | ₹ 11 | 3 | ||
| 4 | 904641401300 | CLAMP | ₹ 11 | 1 | ||
| 5 | B9XH23100000 | IGNITION COIL ASSY | ₹ 285 | 1 | ||
| 6 | 975020552000 | BOLT WITH WASHER | ₹ 3 | 2 | ||
| 7 | B4GH23700000 | PLUG CAP ASSY | ₹ 87 | 1 | ||
| 8 | D52H594B0000 | SGCU. ASSY.,2 | ₹ 12814 | 1 | ||
| 9 | 901090620200 | BOLT | ₹ 13 | 2 | ||
| 10 | BSTH21000000 | BATTERY ASSY | ₹ 0 | 1 | ||
| 11 | 5YYH21311000 | BAND BATTERY | ₹ 11 | 1 | ||
| 12 | B9XH25300000 | STOP SWITCH ASSY | ₹ 253 | 1 | ||
| 13 | D52H25900000 | WIRE HARNESS ASSY | ₹ 7900 | 1 | ||
| 14 | BK7H21511000 | FUSE -15 AMP | ₹ 7 | 2 | ||
| 15 | B4GH21510000 | FUSE (7.5A) | ₹ 4 | 4 | ||
| 16 | B4GH21513000 | FUSE | ₹ 20 | 2 | ||
| 17 | 950220602000 | BOLT FLANGE | ₹ 15 | 1 | ||
| 18 | 904647080000 | CLAMP | ₹ 14 | 1 | ||
| 19 | 904641606100 | CLAMP | ₹ 8 | 6 | ||
| 20 | 904645080000 | CLAMP | ₹ 6 | 4 | ||
| 21 | 904641600600 | CLAMP | ₹ 59 | 2 | ||
| 22 | 904641401300 | CLAMP | ₹ 11 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Delivering consistent power to your motorcycle systems is the role of this robust electrical foundation assembly. Featuring the reliable Battery Assy plus the powerful Ignition Coil Assy, it ensures that your engine starts easily plus runs smoothly in all weather conditions. The system is protected by a comprehensive Fuse network, including a specialized Fuse fifteen Amp plus Fuse seven point five Amp, which shield the delicate electronics from power surges. The Rectifier plus Regulator Assy manages the charging circuit, keeping your battery healthy for long term use. Securely housed in the Battery Box plus held by a durable Band Battery, the components are shielded from road vibration plus debris. Every Clamp plus Bolt With Washer is precision engineered for a secure plus weather resistant fit. This assembly is the backbone of your motorcycle electrical health, providing the reliability needed for thousands of kilometers of worry free riding across India.
