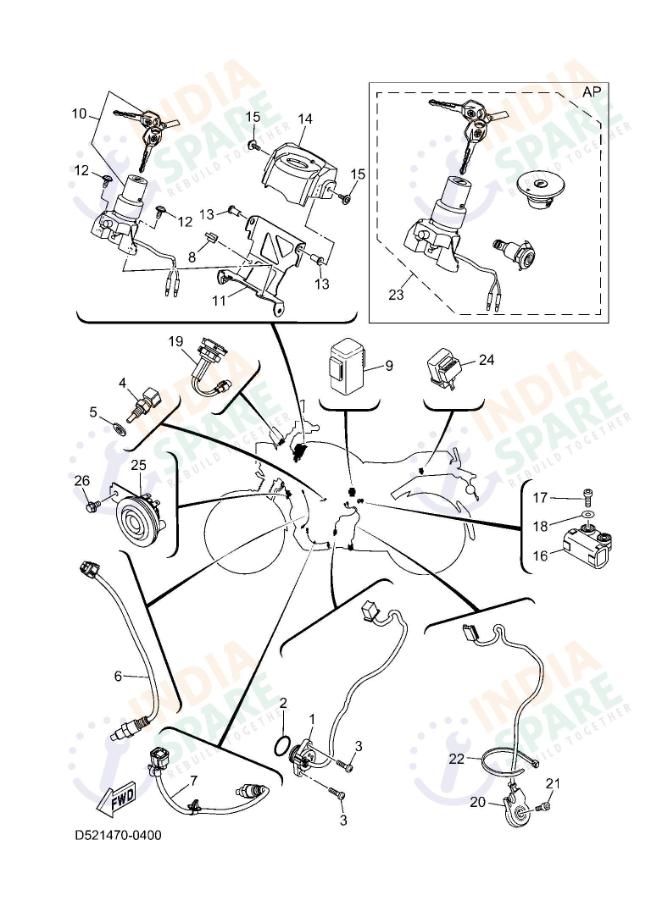

ELECTRICAL 2
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BSTH25400000 | NEUTRAL SWITCH ASSY | ₹ 495 | 1 | ||
| 2 | 932102180100 | O-RING | ₹ 11 | 1 | ||
| 3 | 901570581700 | SCREW PAN HEAD | ₹ 5 | 2 | ||
| 4 | B4RH35910000 | THERMO UNIT | ₹ 375 | 1 | ||
| 5 | 902011012800 | WASHER, PLATE | ₹ 18 | 1 | ||
| 6 | BFWH592A0000 | SENSOR | ₹ 2500 | 1 | ||
| 7 | BSTH592A0000 | SENSOR | ₹ 2700 | 1 | ||
| 8 | 904641200100 | CLAMP | ₹ 74 | 1 | ||
| 9 | BSTH19400000 | STARTER RELAY ASSY | ₹ 250 | 1 | ||
| 10 | B4GH25010000 | MAIN SWITCH STEERING LOCK | ₹ 745 | 1 | ||
| 11 | BCLH25140000 | STAY MAIN SWITCH | ₹ 156 | 1 | ||
| 12 | 901490611800 | SCREW | ₹ 48 | 2 | ||
| 13 | 901790580400 | NUT | ₹ 10 | 2 | ||
| 14 | BCLH25680000 | COVER MAIN SWITCH | ₹ 36 | 1 | ||
| 15 | 901590506500 | SCREW WITH WASHER | ₹ 6 | 2 | ||
| 16 | B9PH25760000 | SENSOR LEAN ANGLE | ₹ 413 | 1 | ||
| 17 | 913120402500 | BOLT | ₹ 15 | 2 | ||
| 18 | 90201047A200 | WASHER PLATE | ₹ 47 | 2 | ||
| 19 | D52H21E00000 | USB ASSY | ₹ 1152 | 1 | ||
| 20 | BKHH25660000 | SWITCH, SIDE STAND | ₹ 460 | 1 | ||
| 21 | 901100689300 | BOLT HEXAGON SOCKET HEAD | ₹ 10 | 1 | ||
| 22 | 904646500100 | CLAMP | ₹ 14 | 1 | ||
| 23 | B4GXH2502000 | MAIN SW. STRG. LOC | ₹ 1560 | 1 | ||
| 24 | BMNH33500000 | FLASHER RELAY ASSY | ₹ 580 | 1 | ||
| 25 | 2GSH33710100 | HORN | ₹ 260 | 1 | ||
| 26 | 958270601400 | BOLT FLANGE | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The intricate electrical heartbeat of your vehicle is managed by a collection of precise components that communicate every rider movement to the engine brain. This assembly features the Neutral Switch Assy which confirms safe starting conditions, plus the sophisticated Sensor Lean Angle that monitors your motorcycle orientation for maximum stability. Every Relay Assy plus Starter Relay Assy is built to withstand the rigorous demands of daily city commutes or long highway tours, providing consistent ignition power. Essential safety hardware like the Main Switch Steering Lock protects your machine from theft while the Thermo Unit manages thermal data to prevent overheating issues. Utilizing high quality Clamps plus the Bolt Hexagon Socket Head, the wiring remains perfectly routed plus secure against harsh vibrations. This collection of genuine parts ensures a flawless interface between you plus your machine on every Indian road journey.
