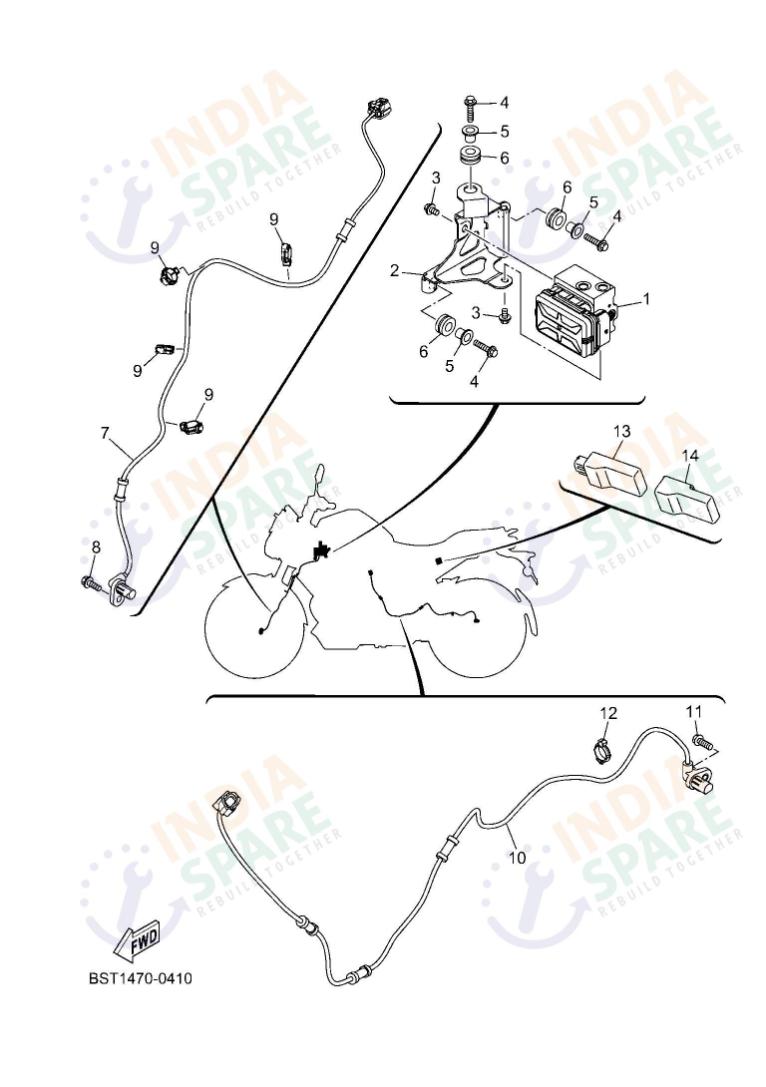

ELECTRICAL 3
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BSTH59300900 | HYDRAULIC UNIT ASSY | ₹ 12758 | 1 | ||
| 2 | B4GF175T0000 | BRACKET 1 | ₹ 188 | 1 | ||
| 3 | 950220601000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 4 | 950220602000 | BOLT FLANGE | ₹ 15 | 3 | ||
| 5 | 90387068N800 | COLLAR | ₹ 13 | 3 | ||
| 6 | 904801422900 | GROMMET | ₹ 9 | 3 | ||
| 7 | B9PH59700100 | WHEEL SENSOR ASSY, FRONT | ₹ 1150 | 1 | ||
| 8 | 950220601600 | BOLT FLANGE | ₹ 11 | 1 | ||
| 9 | 904641201300 | CLAMP | ₹ 120 | 4 | ||
| 10 | BKHH59800100 | WHEEL SENSOR ASSY, REAR | ₹ 760 | 1 | ||
| 11 | 950220601600 | BOLT FLANGE | ₹ 11 | 1 | ||
| 12 | 904641201300 | CLAMP | ₹ 120 | 1 | ||
| 13 | D52H58100100 | COMMUNICATION CONT | ₹ 0 | 1 | ||
| 14 | BCLH55460000 | BAND | ₹ 38 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Precision safety plus electronic control are the hallmarks of this advanced electrical assembly designed for modern riding confidence. Featuring the Hydraulic Unit Assy plus the sophisticated Wheel Sensor Assy Front plus Rear, this system monitors every rotation to prevent wheel lockup during emergency stops. The inclusion of durable Brackets plus secure Clamps ensures that the electronic signals remain consistent even when traversing rough rural paths or bumpy urban streets. Every Grommet plus Collar is designed to absorb high frequency vibrations, protecting the delicate circuitry from mechanical stress. The assembly also includes a high quality Band for secure wiring management, ensuring a clean plus reliable installation. This setup represents the pinnacle of braking technology, providing the rider with the peace of mind needed to navigate the diverse traffic conditions of the Indian subcontinent with total control plus absolute confidence in every situation.
