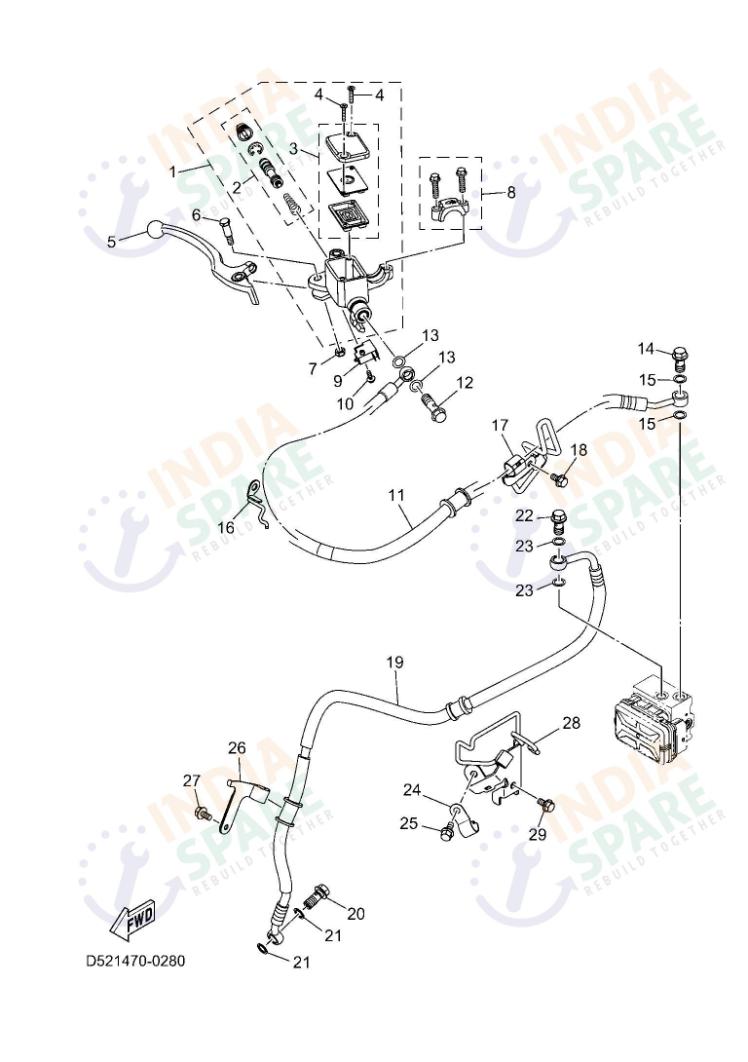

FRONT MASTER CYLINDER
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF580A0000 | MASTER CYLINDER SU | ₹ 2304 | 1 | ||
| 2 | BPDF58070000 | CYLINDER KIT, MAST | ₹ 525 | 1 | ||
| 3 | BPDWF5850000 | CAP RESERVOIR KIT | ₹ 474 | 1 | ||
| 4 | 54BF589H0000 | SCREW | ₹ 5 | 2 | ||
| 5 | B97H39220000 | LEVER 2 | ₹ 193 | 1 | ||
| 6 | 901090685900 | BOLT | ₹ 14 | 1 | ||
| 7 | 54BF63380000 | NUT ADJUSTING | ₹ 6 | 1 | ||
| 8 | BPDWF5860000 | CLAMP SCREW KIT | ₹ 359 | 1 | ||
| 9 | B97H39800000 | FRONT STOP SWITCH | ₹ 81 | 1 | ||
| 10 | B97F589H0000 | SCREW | ₹ 5 | 1 | ||
| 11 | D52F58720000 | HOSE, BRAKE 1 | ₹ 780 | 1 | ||
| 12 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 13 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 14 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 15 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 16 | BCLF587A0000 | HOLDER BREAK HOSE | ₹ 19 | 1 | ||
| 17 | BFJF61310000 | GUIDE, CABLE 1 | ₹ 147 | 1 | ||
| 18 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 19 | BFJF58740000 | HOSE, BRAKE | ₹ 1360 | 1 | ||
| 20 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 21 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 22 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 23 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 24 | BFJF58750000 | HOLDER, BRAKE HOSE 1 | ₹ 32 | 1 | ||
| 25 | 920120601000 | BOLT BUTTON HEAD | ₹ 14 | 1 | ||
| 26 | B4GF58760000 | HOLDER BRAKE HOSE 2 | ₹ 37 | 1 | ||
| 27 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 28 | D52F58870000 | HOLDER, BRAKE HOSE | ₹ 156 | 1 | ||
| 29 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Mastering the stopping power of your motorcycle requires a front master cylinder that offers both sensitivity plus strength. This assembly features the Master Cylinder SU plus the precision Cylinder Kit Mast, designed to provide a consistent plus powerful hydraulic response. The Lever plus Cap Reservoir Kit allow for effortless operation plus easy monitoring of fluid levels, while the Front Stop Switch ensures your brake lights activate instantly. Secured by the Holder Brake Hose plus various Guide Cable components, the hydraulic lines are routed perfectly for clear steering movement. Every Bolt Union plus Washer Plain is engineered to provide an airtight seal, preserving the integrity of your braking force. This master cylinder is critical for navigating the unpredictable traffic of modern India, providing the high performance feedback you need for total control plus absolute safety during every moment of your ride.
