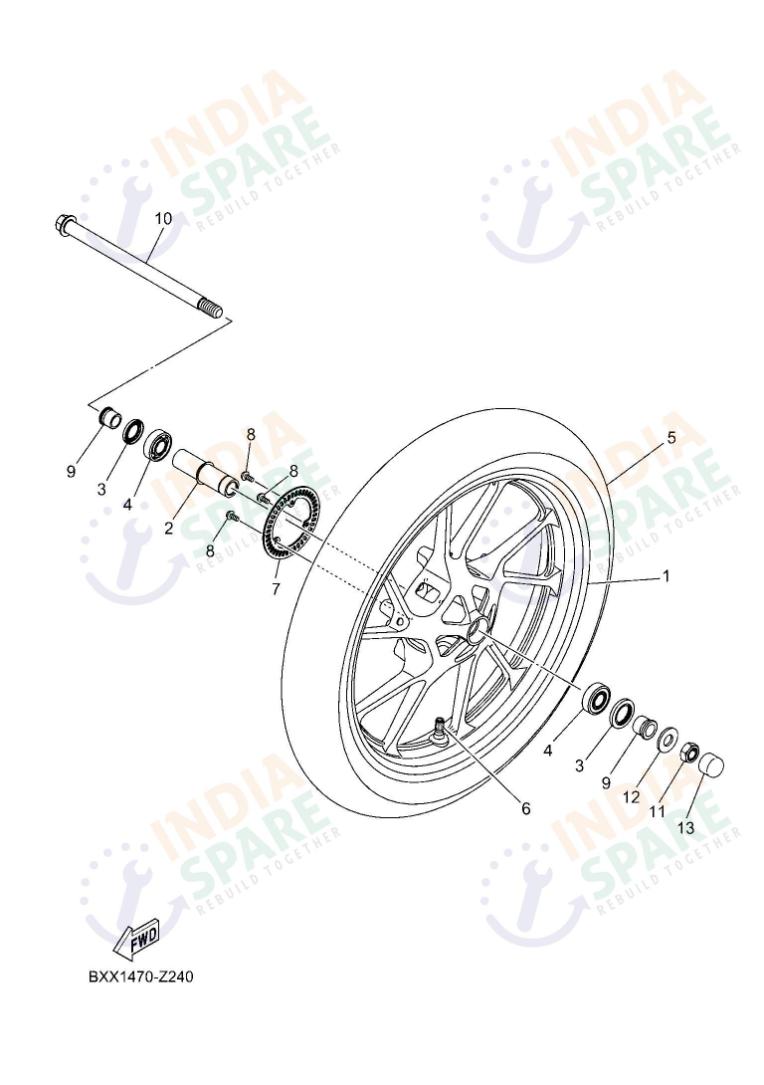

FRONT WHEEL
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9EF516801P6 | CAST WHEEL, FRONT | ₹ 5213 | 1 | FOR MT2 | |
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5 | 941101783000 | TIRE (100/80-17 M/C 52P) | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 12 | 929071420000 | WASHER | ₹ 8 | 1 | ||
| 13 | BCLF51880000 | CAP | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The front wheel is the leading edge of your motorcycle performance, requiring precision engineering for stable plus responsive handling. This assembly features the stylish plus strong Cast Wheel Front, designed to provide superior strength plus a modern aesthetic. High quality Bearings plus an Oil Seal ensure that the wheel rotates smoothly while remaining protected from dust plus water. The Axle Wheel plus Nut Self Locking provide a secure connection to the front suspension, while the Washer plus Cap provide a professional finish. A high grip Tire ensures maximum traction during cornering plus braking on all Indian road surfaces. The integrated Rotor Sensor plus Screw setup provide critical speed information to your dashboard plus safety systems. Every component in this front wheel assembly is built to provide the reliability plus performance needed for a superior riding experience, ensuring every journey is smooth, safe, plus controlled from start to finish.
