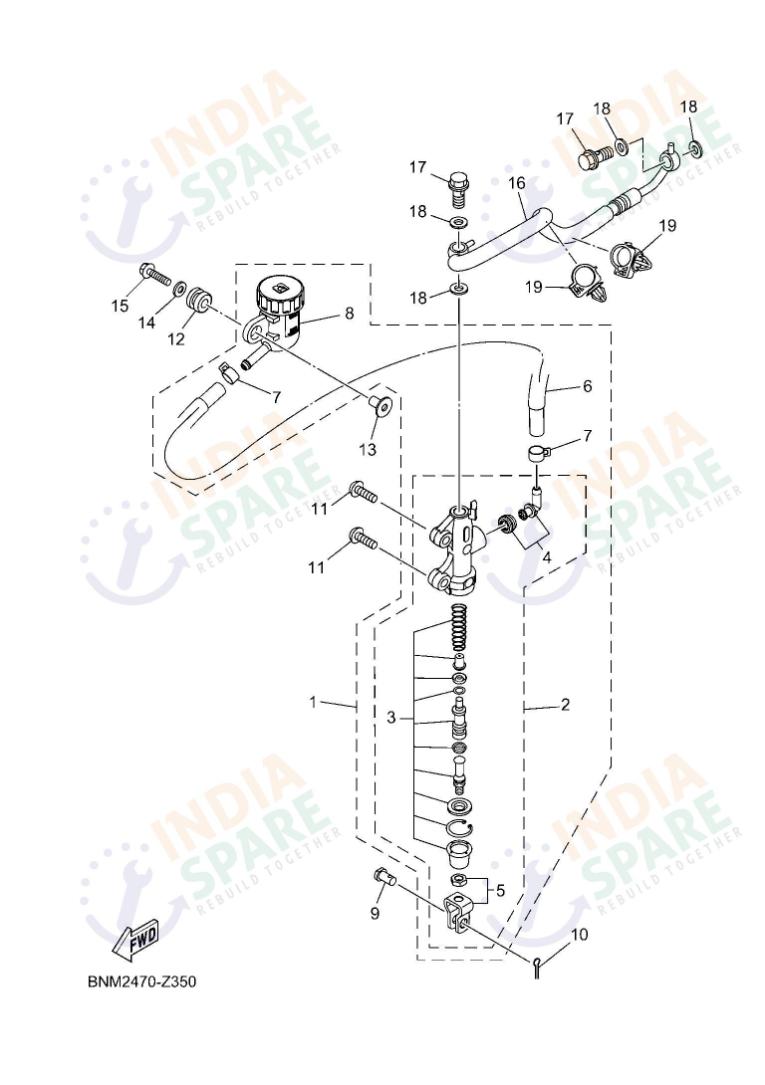

REAR MASTER CYLINDER
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | D52F580E0000 | REAR MASTER CYLINDER ASSY | ₹ 1816 | 1 | ||
| 2 | BPDF583V0000 | RR. MASTER CYLINDE | ₹ 2198 | 1 | ||
| 3 | BPDF58080000 | CYLINDER KIT, MAST | ₹ 562 | 1 | ||
| 4 | BPDWF7220000 | PUSH ROD SET | ₹ 387 | 1 | ||
| 5 | BPDWF5820000 | CONNECTOR AND BUSH SET | ₹ 27 | 1 | ||
| 6 | D52F58950000 | HOSE, RESERVOIR | ₹ 138 | 1 | ||
| 7 | BPDF72680000 | CLIP, WIRE | ₹ 36 | 2 | ||
| 8 | BPDF58045000 | RESERVE TANK ASSY. | ₹ 92 | 1 | ||
| 9 | 902400800500 | PIN CLEVIS | ₹ 52 | 1 | ||
| 10 | 902521880000 | PIN SPLIT | ₹ 1 | 1 | ||
| 11 | 920120802000 | BOLT BUTTON HEAD | ₹ 20 | 2 | ||
| 12 | BK7F47420000 | GROMMET | ₹ 10 | 1 | ||
| 13 | BK7F62590000 | COLLAR | ₹ 42 | 1 | ||
| 14 | 902010682800 | WASHER PLATE | ₹ 4 | 1 | ||
| 15 | 958020602500 | BOLT FLANGE | ₹ 6 | 1 | ||
| 16 | D52F58730000 | HOSE, BRAKE 2 | ₹ 650 | 1 | ||
| 17 | 904011001500 | BOLT UNION | ₹ 34 | 2 | ||
| 18 | 902011011800 | WASHER PLAIN | ₹ 5 | 4 | ||
| 19 | 904641700300 | CLAMP | ₹ 83 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Responsive braking is the foundation of rider safety, plus it starts with the hydraulic precision of the rear master cylinder assembly. Featuring the Rear Master Cylinder plus the high quality Cylinder Kit Mast, this system provides a progressive plus firm feel for every stop. The Reserve Tank Assy ensures an ample supply of brake fluid, while the Connector plus Bush Set maintain a leak free hydraulic circuit. Secured by the Bolt Flange plus Pin Clevis, the assembly offers a tactile connection between the rider foot plus the braking system. Every Bolt Union plus Washer Plain is engineered to maintain a perfect seal under high pressure, preventing any air from compromising your stopping power. Designed for both durability plus ease of maintenance, this rear master cylinder provides the confidence you need to navigate steep descents plus sudden traffic changes with absolute control plus technical reliability on every single ride.
