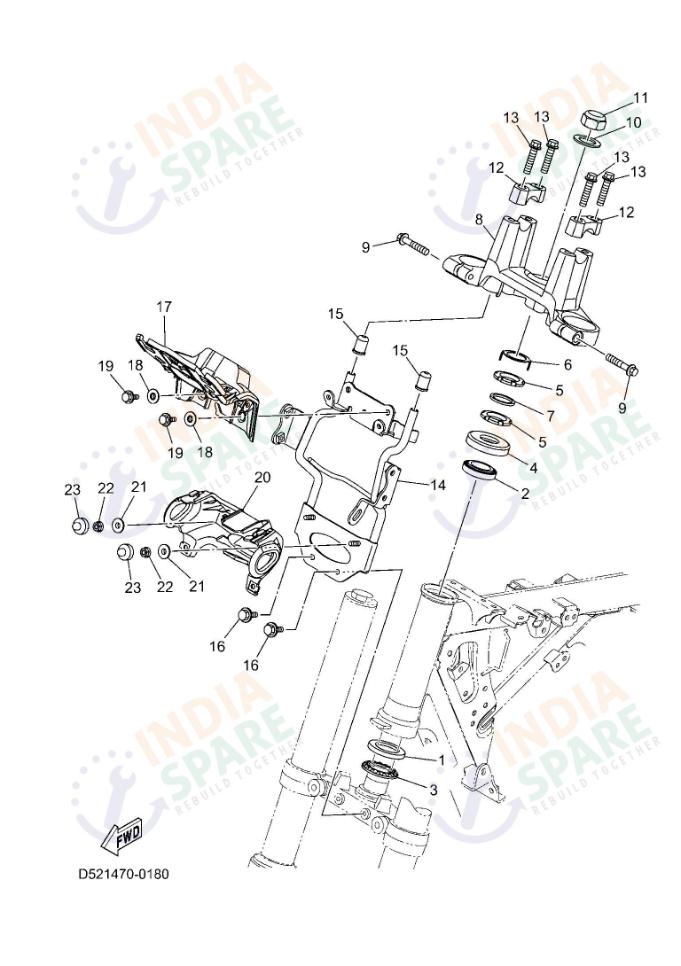

STEERING
D521
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CF34120000 | RACE, BALL 2 | ₹ 0 | 1 | ||
| 2 | 93399999X300 | BEARING | ₹ 0 | 1 | ||
| 3 | 4LSF341E1000 | RETAINER, BALL BEARING | ₹ 0 | 1 | ||
| 4 | 5YYF34160000 | COVER BALL RACE 2 | ₹ 103 | 1 | ||
| 5 | 901792561500 | NUT | ₹ 40 | 2 | ||
| 6 | 20PF34180000 | WASHER SPECIAL | ₹ 11 | 1 | ||
| 7 | 902022614200 | WASHER PLATE | ₹ 5 | 1 | ||
| 8 | B4GF34350000 | CROWN HANDLE | ₹ 1313 | 1 | ||
| 9 | 950270804000 | BOLT FLANGE | ₹ 23 | 2 | ||
| 10 | 902012201800 | WASHER PLATE | ₹ 198 | 1 | ||
| 11 | 901762208100 | NUT CROWN | ₹ 564 | 1 | ||
| 12 | B97F34410000 | HOLDER HANDLE UPPER | ₹ 52 | 2 | ||
| 13 | 950220803500 | BOLT FLANGE | ₹ 8 | 4 | ||
| 14 | D52F31740000 | STAY, HEADLIGHT | ₹ 594 | 1 | ||
| 15 | 4LSF317J0000 | DAMPER 1 | ₹ 3 | 2 | ||
| 16 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 17 | D52F317E0100 | STAY | ₹ 69 | 1 | ||
| 18 | 90387068S100 | COLLAR | ₹ 12 | 2 | ||
| 19 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 20 | D52F317F0000 | STAY 2 | ₹ 92 | 1 | ||
| 21 | 903870781900 | COLLAR | ₹ 10 | 2 | ||
| 22 | 9570N0650000 | NUT FLANGE | ₹ 2 | 2 | ||
| 23 | BCLF18240000 | PROTECTOR HOSE | ₹ 17 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Agile handling plus precise steering are the results of this high quality steering head assembly designed for maximum control. Featuring the Crown Handle plus Holder Handle Upper, it provides a rigid plus ergonomic mounting point for your steering controls. The high grade Race Ball plus Bearing Retaier ensure that the steering rotates with absolute smoothness plus zero play. Protective components like the Cover Ball Race plus Seal Dust Steering keep the bearings clean plus lubricated for years of trouble free operation. The Stay Headlight plus various Damper components ensure that your front lighting remains stable plus vibration free even on rough roads. Secured by the Nut Crown plus Washer Special, the entire steering assembly is built to withstand the stresses of high speed travel while providing the tactical feedback every rider needs. This setup is the secret to the nimble handling that makes your motorcycle a joy to ride through every twist plus turn.
