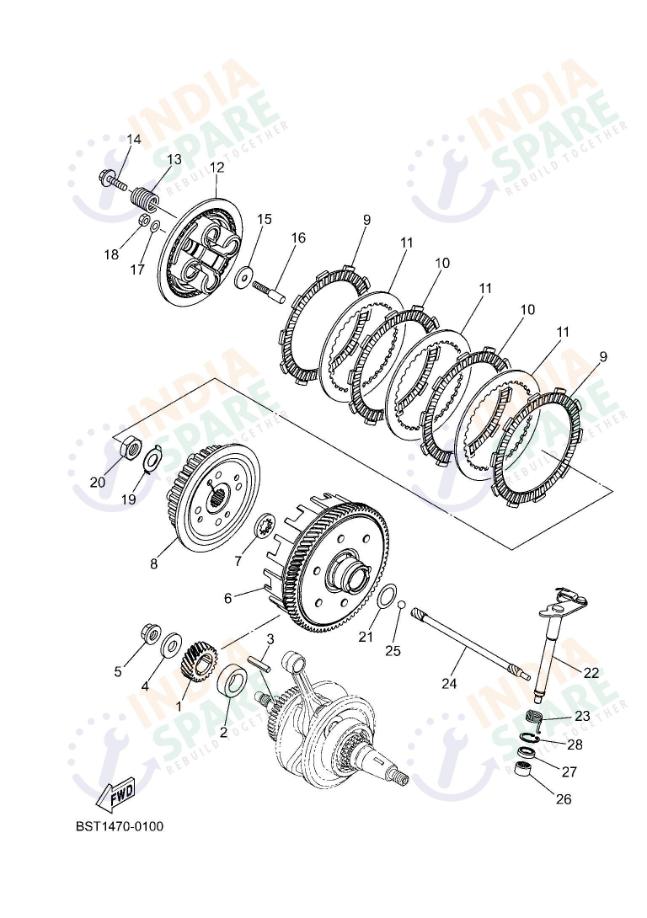

CLUTCH
D531
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 2GSE61110000 | GEAR PRIMARY DRIVE | ₹ 360 | 1 | ||
| 2 | 54BE72580000 | COLLAR 1 | ₹ 26 | 1 | ||
| 3 | 21CE61930000 | KEY FEATHER | ₹ 14 | 1 | ||
| 4 | 902011283600 | WASHER PLATE | ₹ 40 | 1 | ||
| 5 | 901791281000 | NUT | ₹ 23 | 1 | ||
| 6 | BACE61501100 | PRIMARY DRIVEN GEAR COMP. | ₹ 2092 | 1 | ||
| 7 | 21CE61540000 | PLATE THRUST 1 | ₹ 47 | 1 | ||
| 8 | BACE63710000 | BOSS CLUTCH | ₹ 317 | 1 | ||
| 9 | BSTE63210000 | PLATE, FRICTION | ₹ 152 | 2 | ||
| 10 | BACE63310000 | PLATE FRICTION 2 | ₹ 151 | 2 | ||
| 11 | B9PE63240000 | PLATE CLUTCH 1 | ₹ 37 | 3 | ||
| 12 | BACE63510000 | PLATE PRESSURE 1 | ₹ 154 | 1 | ||
| 13 | B9PE63330000 | SPRING CLUTCH 1 | ₹ 20 | 4 | ||
| 14 | 21CE63370000 | SCREW SPRING | ₹ 6 | 4 | ||
| 15 | 21CE63580000 | PLATE PUSH | ₹ 32 | 1 | ||
| 16 | 21CE63560100 | ROD PUSH 1 | ₹ 28 | 1 | ||
| 17 | 54BE61440000 | WASHER | ₹ 5 | 1 | ||
| 18 | 3C1E63440000 | NUT, ADJUSTING | ₹ 6 | 1 | ||
| 19 | 902151480200 | WASHER LOCK | ₹ 9 | 1 | ||
| 20 | 901701480100 | NUT | ₹ 9 | 1 | ||
| 21 | 902082000300 | WASHER CONICAL SPRING | ₹ 39 | 1 | ||
| 22 | 21CE63800200 | PUSH LEVER ASSY | ₹ 72 | 1 | ||
| 23 | 1PME63450000 | SPRING RETURN | ₹ 6 | 1 | ||
| 24 | 54BE63570000 | ROD PUSH 2 | ₹ 55 | 1 | ||
| 25 | 935051684400 | BALL ( SIZE 7.937MM ) | ₹ 1 | 1 | ||
| 26 | 93315112Y900 | BEARING | ₹ 52 | 1 | ||
| 27 | 931021287700 | OIL SEAL PUSH LEVER | ₹ 12 | 1 | ||
| 28 | 990092050000 | CIRCLIP | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Managing engine power with precision is the job of the clutch assembly, a critical component for every gear change plus smooth takeoff. This assembly features the robust Boss Clutch plus the Primary Driven Gear Comp, providing the foundation for the friction system. High performance Plate Friction plus Plate Clutch units ensure consistent engagement without slipping, even under high thermal loads. The Push Lever Assy plus Rod Push work in perfect harmony with the Spring Clutch to provide a light plus responsive lever feel at the handlebar. Technical components like the Washer Conical Spring plus Nut Adjusting allow for precise setup plus maintenance. Every Bearing plus Oil Seal is engineered for long life in a high heat environment. This clutch system is designed to provide the rider with total control over power delivery, making every ride through Indian traffic or open highways a smooth plus enjoyable experience.
