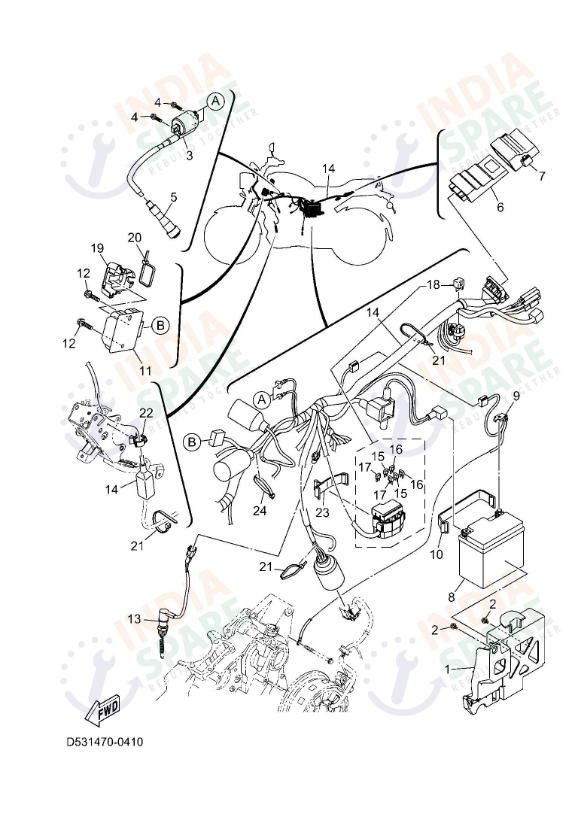

ELECTRICAL 1
D531
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9PF177G0000 | BOX BATTERY | ₹ 80 | 1 | ||
| 2 | 90109068C200 | BOLT | ₹ 14 | 2 | ||
| 3 | B9XH23100000 | IGNITION COIL ASSY | ₹ 285 | 1 | ||
| 4 | 975020552000 | BOLT WITH WASHER | ₹ 3 | 2 | ||
| 5 | B4GH23700000 | PLUG CAP ASSY | ₹ 87 | 1 | ||
| 6 | D53H591A0000 | ENGINE CONTROL UNIT ASSY | ₹ 4222 | 1 | ||
| 7 | B9PH55460100 | BAND | ₹ 0 | 1 | ||
| 8 | B9PH21000000 | BATTERY ASSY (YUASA YTZ4) | ₹ 0 | 1 | ||
| 9 | B4GH21160000 | WIRE, MINUS LEAD | ₹ 143 | 1 | ||
| 10 | 5YYH21311000 | BAND BATTERY | ₹ 11 | 1 | ||
| 11 | BKHH19601000 | RECTIFIER & REGULATOR ASSY | ₹ 1000 | 1 | ||
| 12 | 958020602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 13 | B9XH25300000 | STOP SWITCH ASSY | ₹ 253 | 1 | ||
| 14 | D53H25900000 | WIRE HARNESS ASSY | ₹ 7135 | 1 | ||
| 15 | B4GH21510000 | FUSE (7.5A) | ₹ 4 | 2 | ||
| 16 | B4GH21513000 | FUSE | ₹ 20 | 2 | ||
| 17 | BK7H21518000 | FUSE -2 AMP | ₹ 25 | 2 | ||
| 18 | 3WP819800000 | DIODE ASSY | ₹ 270 | 1 | ||
| 19 | BCLH252U0000 | COVER | ₹ 13 | 1 | ||
| 20 | 904645080000 | CLAMP | ₹ 6 | 1 | ||
| 21 | 904641606100 | CLAMP | ₹ 8 | 3 | ||
| 22 | 904641401300 | CLAMP | ₹ 11 | 1 | ||
| 23 | 4UUF811G0000 | BAND ASSY | ₹ 11 | 1 | ||
| 24 | 904645080000 | CLAMP | ₹ 6 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Your motorcycle relies on a steady flow of power to perform at its peak, whether you are commuting through heavy traffic or exploring scenic highways. This electrical assembly houses the core energy management system, featuring the robust Battery Assy plus the efficient Rectifier plus Regulator Assy. These components ensure that the electrical load is balanced plus the battery remains charged for consistent performance. The Ignition Coil Assy provides the necessary spark to ignite your passion for riding, while the Plug Cap Assy ensures a weather resistant connection to the engine. Safety is further enhanced by a comprehensive Fuse system plus the Stop Switch Assy, protecting the delicate circuitry from power surges. Every component, from the Battery Box to the various Clamps, is engineered to withstand the demanding tropical climate plus vibration levels found across the diverse Indian subcontinent.
