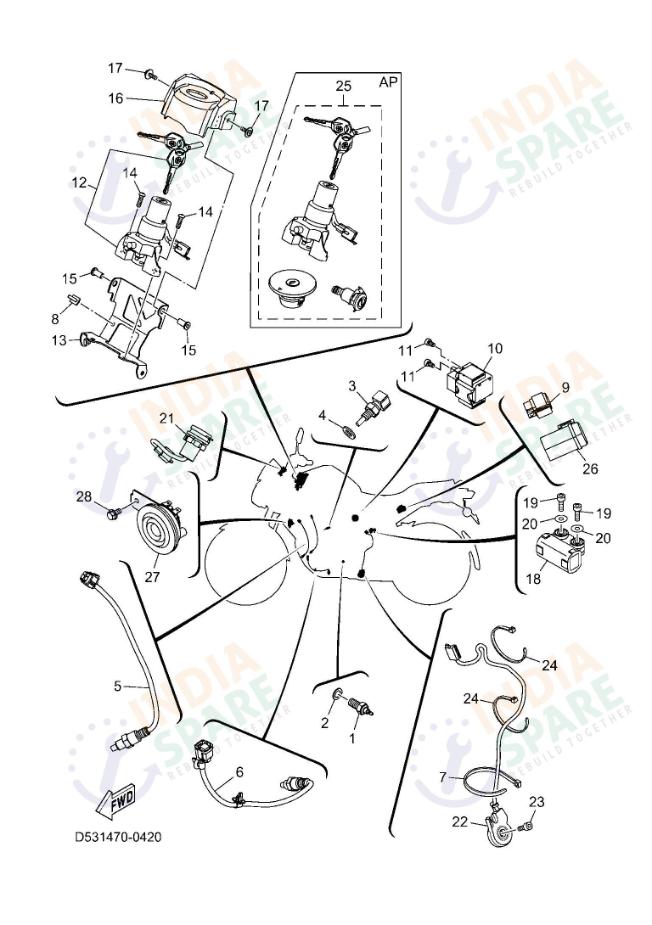

ELECTRICAL 2
D531
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CH25400000 | NEUTRAL SWITCH ASSY | ₹ 65 | 1 | ||
| 2 | 904301014800 | NEUTRAL SWITCH GASKET | ₹ 9 | 1 | ||
| 3 | B4RH35910000 | THERMO UNIT | ₹ 375 | 1 | ||
| 4 | 902011012800 | WASHER, PLATE | ₹ 18 | 1 | ||
| 5 | BFWH592A0000 | SENSOR | ₹ 2500 | 1 | ||
| 6 | BSTH592A0000 | SENSOR | ₹ 2700 | 1 | ||
| 7 | 904646500100 | CLAMP | ₹ 14 | 1 | ||
| 8 | 904641200100 | CLAMP | ₹ 74 | 1 | ||
| 9 | B4GH19500000 | RELAY ASSY | ₹ 90 | 1 | ||
| 10 | 54BH19400100 | STARTER RELAY ASSY | ₹ 250 | 1 | ||
| 11 | 913320500800 | BOLT | ₹ 2 | 2 | ||
| 12 | BCLH25010000 | MAIN SWITCH STEERING LOCK | ₹ 839 | 1 | ||
| 13 | BCLH25140000 | STAY MAIN SWITCH | ₹ 156 | 1 | ||
| 14 | 901490611800 | SCREW | ₹ 48 | 2 | ||
| 15 | 901790580400 | NUT | ₹ 10 | 2 | ||
| 16 | BCLH25680000 | COVER MAIN SWITCH | ₹ 36 | 1 | ||
| 17 | 901590506500 | SCREW WITH WASHER | ₹ 6 | 2 | ||
| 18 | B9PH25760000 | SENSOR LEAN ANGLE | ₹ 413 | 1 | ||
| 19 | 913120402500 | BOLT | ₹ 15 | 2 | ||
| 20 | 90201047A200 | WASHER PLATE | ₹ 47 | 2 | ||
| 21 | BCLH254B0000 | TERMINAL COMP. | ₹ 299 | 1 | ||
| 22 | BKHH25660000 | SWITCH, SIDE STAND | ₹ 460 | 1 | ||
| 23 | 901100689300 | BOLT HEXAGON SOCKET HEAD | ₹ 10 | 1 | ||
| 24 | 904641606100 | CLAMP | ₹ 8 | 2 | ||
| 25 | BCLXH2501000 | MAIN SW. STRG. LOC | ₹ 1590 | 1 | ||
| 26 | B44H33500000 | FLASHER RELAY ASSY | ₹ 180 | 1 | ||
| 27 | 2GSH33710100 | HORN | ₹ 260 | 1 | ||
| 28 | 958270601400 | BOLT FLANGE | ₹ 18 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Experience a seamless connection between your motorcycle plus the road with an electrical system designed for maximum reliability. This assembly manages critical engine signals plus rider safety through advanced components like the Neutral Switch Assy plus the Sensor Lean Angle. Whether you are navigating tight city corners or parking on uneven surfaces, these sensors provide the necessary data to keep your machine operating within safe parameters. The Relay Assy plus Starter Relay Assy work in perfect harmony to ensure effortless ignition every time you press the start button. Additional security is provided by the Main Switch Steering Lock, which protects your pride plus joy from unauthorized access. High quality hardware like the Bolt Hexagon Socket Head plus various Clamps keep the wiring harness organized plus secure, reflecting the superior engineering standards expected by every passionate Indian motorcyclist today.
