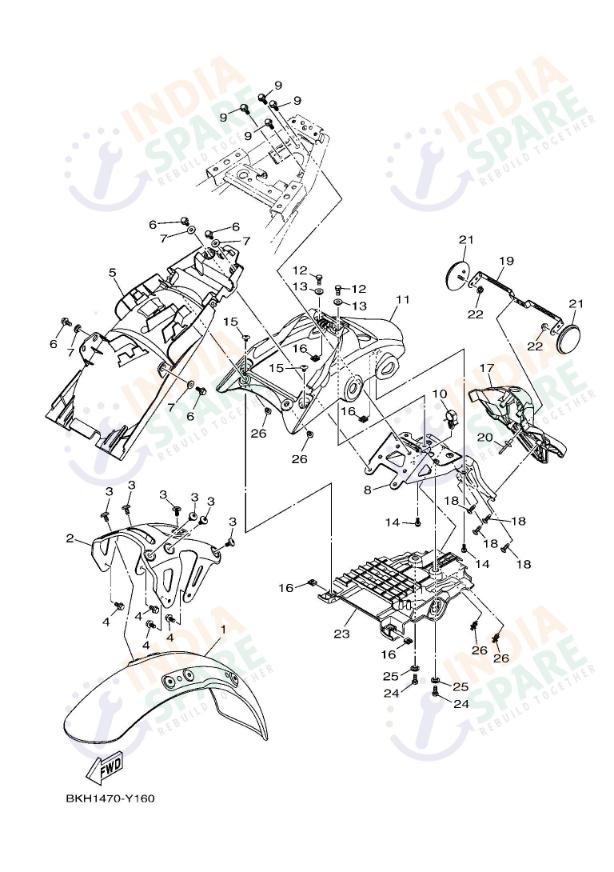

FENDER
D531
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|

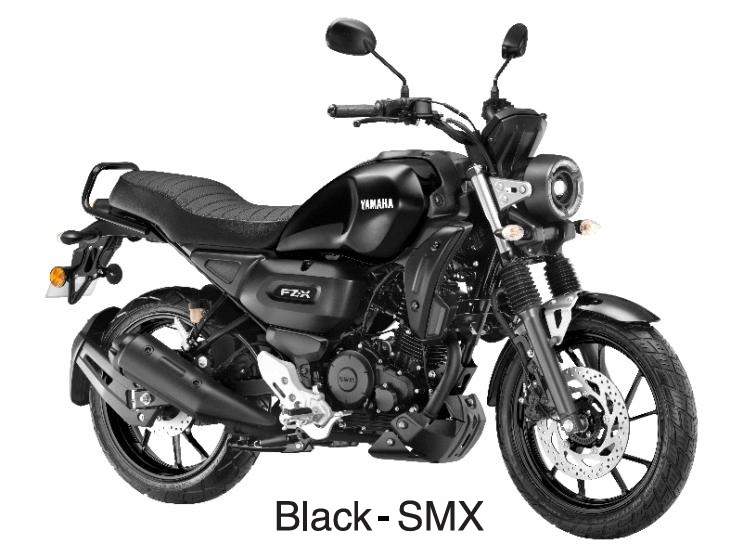

| 1A | BCLF151100P2 | FENDER, FRONT | ₹ 1599 | 1 | FOR SMX | |
| 1B | BCLF151100P0 | FENDER, FRONT | ₹ 1599 | 1 | FOR MDPBM1 | |
| 2 | BCLF151200P0 | BRACKET FENDER | ₹ 1167 | 1 | ||
| 3 | 901110688200 | BOLT,HEX. SOCKET BUTTON | ₹ 8 | 6 | ||
| 4 | 958120601200 | BOLT FLANGE | ₹ 3 | 4 | ||
| 5 | BCLF16110000 | FENDER REAR | ₹ 148 | 1 | ||
| 6 | 958120601400 | BOLT FLANGE | ₹ 5 | 4 | ||
| 7 | 903870604800 | COLLAR | ₹ 7 | 4 | ||
| 8 | BCLF16130000 | STAY FENDER 1 | ₹ 818 | 1 | ||
| 9 | 958220602000 | BOLT FLANGE | ₹ 5 | 4 | ||
| 10 | 904641515700 | CLAMP | ₹ 55 | 1 | ||
| 11 | BCLF16510000 | COVER REAR FENDER | ₹ 147 | 1 | ||
| 12 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 13 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 14 | 901050536100 | BOLT FLANGE | ₹ 10 | 2 | ||
| 15 | 901110500300 | BOLT HEX. SOCKET BUTTON | ₹ 30 | 2 | ||
| 16 | 90183050A700 | NUT SPRING | ₹ 22 | 4 | ||
| 17 | BCLF16290000 | GUARD MUD | ₹ 161 | 1 | ||
| 18 | 977025001600 | SCREW TAPPING | ₹ 10 | 4 | ||
| 19 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 20 | 902674884500 | RIVET BLIND | ₹ 9 | 1 | ||
| 21 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 22 | 957070550000 | NUT FLANGE | ₹ 1 | 2 | ||
| 23 | BCLF163A0000 | COVER REAR FENDER 1 | ₹ 86 | 1 | ||
| 24 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 25 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 26 | 902690681400 | RIVET | ₹ 8 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protection from road spray plus debris is essential for maintaining both rider comfort plus motorcycle cleanliness. This assembly features the Front Fender plus the Rear Fender, both aerodynamically designed for maximum coverage. The Stay Fender plus various Brackets provide a rigid mounting system that prevents vibrations even on the roughest Indian roads. Securely attached with the Bolt Flange plus Collar hardware, these fenders are built from high impact materials to resist cracking from stones. Additional components like the Guard Mud plus Cover Rear Fender ensure that the tail section remains protected from grime. The inclusion of the Reflector Front plus Bracket Reflector provides an extra layer of safety for night riding. Every Screw Tapping plus Nut Spring is chosen for its durability, ensuring that the fender system remains a reliable plus silent part of your motorcycle bodywork through every season.
