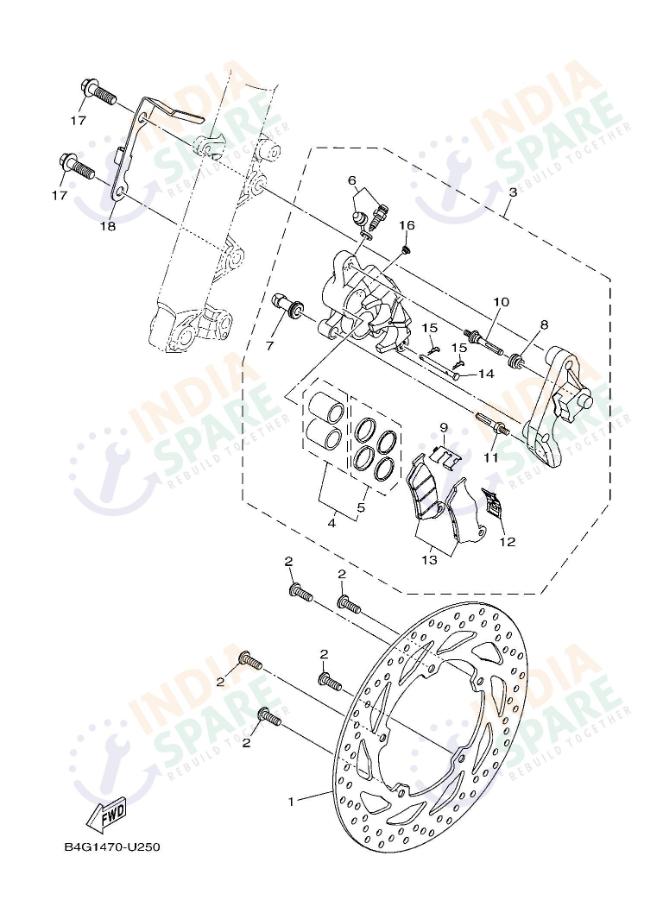

FRONT BRAKE CALIPER
D531
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B97F582U0000 | DISC BRAKE (RIGHT) | ₹ 1280 | 1 | ||
| 2 | 901110802900 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 5 | ||
| 3 | B9EF580U0000 | CALIPER ASSY (RIGHT) | ₹ 2000 | 1 | ||
| 4 | 54BW00570000 | PISTON ASSY CALIPER | ₹ 557 | 1 | ||
| 5 | 54BW00470000 | CALIPER SEAL SET | ₹ 99 | 1 | ||
| 6 | 5USW00480000 | BLEED SCREW SET | ₹ 27 | 1 | ||
| 7 | 54BF59370000 | BOOT 2 | ₹ 27 | 1 | ||
| 8 | 54BF59170000 | BOOT CALIPER | ₹ 23 | 1 | ||
| 9 | 54BF59390000 | CLIP PAD | ₹ 11 | 1 | ||
| 10 | 54BF59140000 | PIN SLIDE | ₹ 27 | 1 | ||
| 11 | 54BF59260000 | BOLT | ₹ 26 | 1 | ||
| 12 | 54BF59190000 | SUPPORT PAD | ₹ 28 | 1 | ||
| 13 | B97W00450000 | BRAKE PAD SET | ₹ 425 | 1 | ||
| 14 | 54BF59240000 | PIN PAD | ₹ 35 | 1 | ||
| 15 | 54BF59250000 | CLIP | ₹ 10 | 2 | ||
| 16 | 54BF59160000 | PLUG | ₹ 6 | 1 | ||
| 17 | 901051031900 | BOLT FLANGE | ₹ 40 | 2 | ||
| 18 | B4GF33170000 | HOLDER CABLE | ₹ 58 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Front braking requires immediate response plus high thermal stability to handle the stresses of heavy traffic plus high speed stops. This assembly features the large diameter Disc Brake Right plus the powerful Caliper Assy Right, offering exceptional stopping power. The Piston Assy Caliper plus Caliper Seal Set ensure a leak free hydraulic system, while the Brake Pad Set provides high friction performance with excellent durability. Technical components like the Bleed Screw Set plus Pin Slide allow for precise maintenance plus smooth operation of the caliper mechanism. Protected by the Boot plus Clip Pad, the system is designed to perform reliably even in the dusty plus muddy conditions often found on Indian roads. Secured by high strength Bolt Flange hardware, this front caliper assembly provides the safety plus control every rider needs to navigate the world with complete confidence plus peace of mind.
