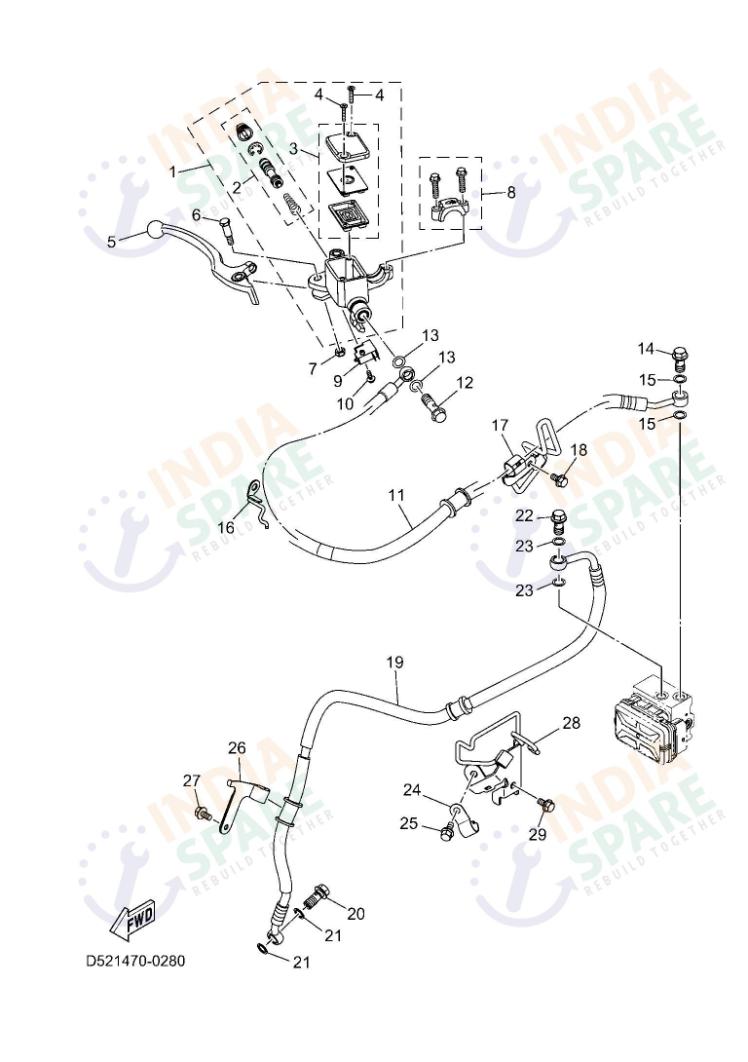

FRONT MASTER CYLINDER
D531
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF580A0000 | MASTER CYLINDER SU | ₹ 2304 | 1 | ||
| 2 | BPDF58070000 | CYLINDER KIT, MAST | ₹ 525 | 1 | ||
| 3 | BPDWF5850000 | CAP RESERVOIR KIT | ₹ 474 | 1 | ||
| 4 | 54BF589H0000 | SCREW | ₹ 5 | 2 | ||
| 5 | B97H39220000 | LEVER 2 | ₹ 193 | 1 | ||
| 6 | 901090685900 | BOLT | ₹ 14 | 1 | ||
| 7 | 54BF63380000 | NUT ADJUSTING | ₹ 6 | 1 | ||
| 8 | BPDWF5860000 | CLAMP SCREW KIT | ₹ 359 | 1 | ||
| 9 | B97H39800000 | FRONT STOP SWITCH | ₹ 81 | 1 | ||
| 10 | B97F589H0000 | SCREW | ₹ 5 | 1 | ||
| 11 | D52F58720000 | HOSE, BRAKE 1 | ₹ 780 | 1 | ||
| 12 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 13 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 14 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 15 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 16 | BCLF587A0000 | HOLDER BREAK HOSE | ₹ 19 | 1 | ||
| 17 | BFJF61310000 | GUIDE, CABLE 1 | ₹ 147 | 1 | ||
| 18 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 19 | BFJF58740000 | HOSE, BRAKE | ₹ 1360 | 1 | ||
| 20 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 21 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 22 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 23 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 24 | BFJF58750000 | HOLDER, BRAKE HOSE 1 | ₹ 32 | 1 | ||
| 25 | 920120601000 | BOLT BUTTON HEAD | ₹ 14 | 1 | ||
| 26 | B4GF58760000 | HOLDER BRAKE HOSE 2 | ₹ 37 | 1 | ||
| 27 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 28 | D52F58870000 | HOLDER, BRAKE HOSE | ₹ 156 | 1 | ||
| 29 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The front braking system is your primary tool for speed control, requiring a master cylinder that offers both power plus precision. This assembly features the Master Cylinder SU plus the high quality Cylinder Kit Mast, designed to provide a progressive plus firm lever feel. The Lever plus Cap Reservoir Kit allow for easy operation plus fluid monitoring, while the Front Stop Switch ensures that your brake light activates instantly upon engagement. Secured by the Holder Brake Hose plus various Guide Cable components, the hydraulic lines are routed perfectly to prevent interference with steering. Every Bolt Union plus Washer Plain is engineered to maintain a perfect seal, ensuring that no air enters the system. This master cylinder provides the high performance feedback necessary for navigating the unpredictable traffic of Indian cities with total control plus absolute confidence in your stopping ability.
