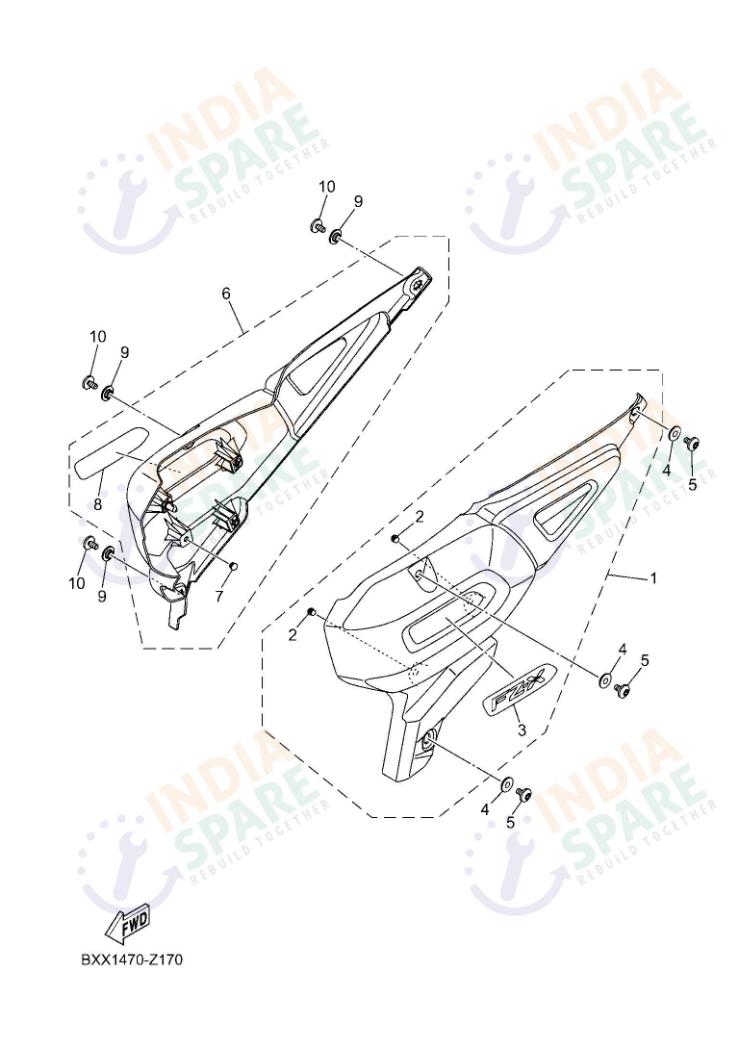

SIDE COVER
0
D531
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | D53XF1710000 | D53XF1710000 | ₹ 0 | 1 | ||
| 2 | 21CF17170000 | DAMPER | ₹ 2 | 2 | ||
| 3 | D53F173E0000 | D53F173E0000 | ₹ 0 | 1 | ||
| 4 | 903870781900 | COLLAR | ₹ 10 | 3 | ||
| 5 | 901110686300 | BOLT,HEX. SOCKET BUTTON | ₹ 7 | 3 | ||
| 6 | D53XF1720000 | D53XF1720000 | ₹ 0 | 1 | ||
| 7 | 21CF17170000 | DAMPER | ₹ 2 | 1 | ||
| 8 | D53F173F0000 | D53F173F0000 | ₹ 0 | 1 | ||
| 9 | 903870781900 | COLLAR | ₹ 10 | 3 | ||
| 10 | 901110686300 | BOLT,HEX. SOCKET BUTTON | ₹ 7 | 3 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.

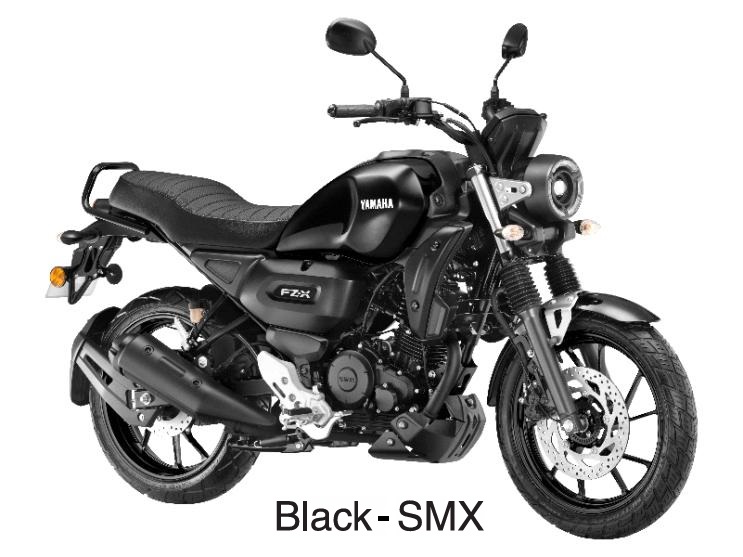

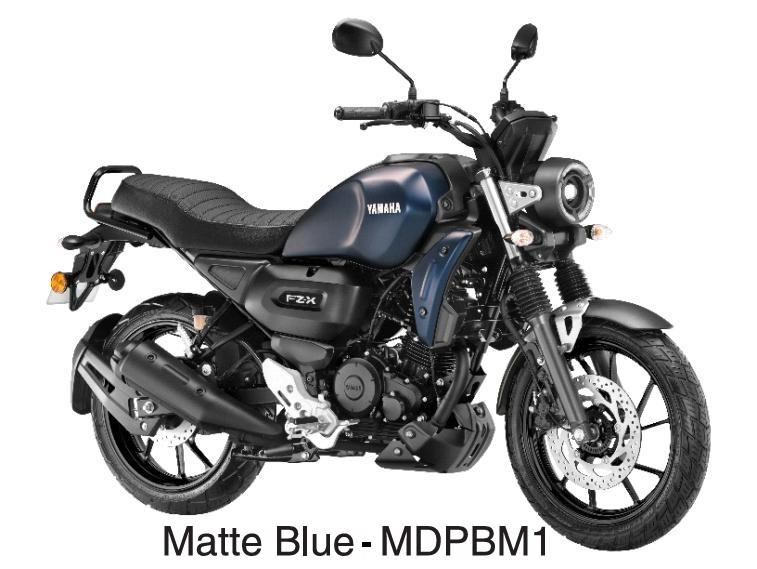

Description: - YAMAHA D531 FZX Series SIDE COVER
