HEADLIGHT
D704/D734
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GH43000000 | HEADLIGHT ASSY | ₹ 3222 | 1 | ||
| 2 | 2LPH43470000 | BULB ( 12V-5W ) | ₹ 23 | 1 | ||
| 3 | B4GH43120000 | HOLDER SOCKET | ₹ 145 | 1 | ||
| 4 | 904801410100 | GROMMET | ₹ 10 | 2 | ||
| 5 | 90387068D400 | COLLAR | ₹ 7 | 2 | ||
| 6 | 958270602500 | BOLT FLANGE | ₹ 6 | 2 | ||
| 7 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 8 | B4GF31750000 | BRACKET HEADLIGHT STAY 1 | ₹ 79 | 1 | ||
| 9 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 10 | 958270801600 | BOLT FLANGE | ₹ 10 | 2 | ||
| 11 | B4GF31210000 | COVER UPPER 1 | ₹ 82 | 1 | ||
| 12 | 977025001200 | SCREW TAPPING | ₹ 11 | 2 | ||
| 13 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 14 | 958270801600 | BOLT FLANGE | ₹ 10 | 1 | ||
| 15 | 90387068N200 | COLLAR | ₹ 11 | 1 | ||

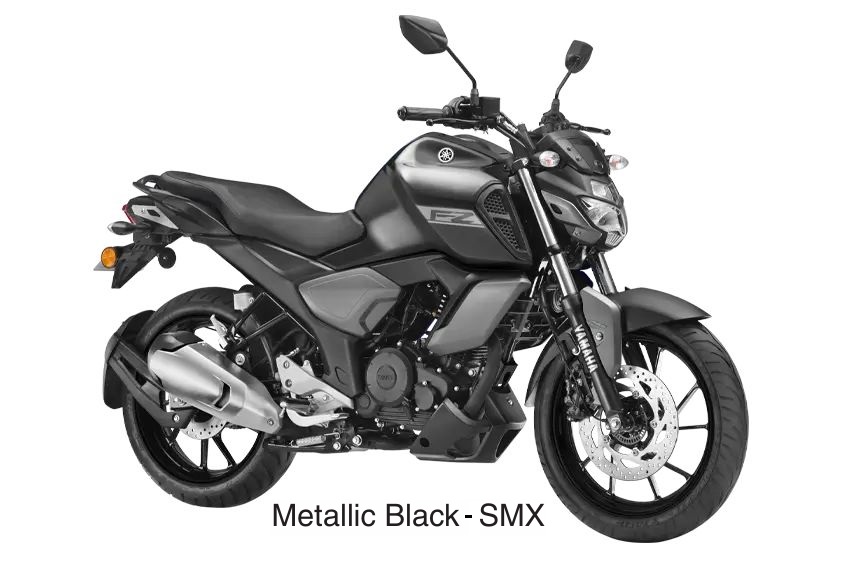

| 16A | B4GF312200P0 | COVER OUTER 1 SMX | ₹ 132 | 1 | FOR SMX | |

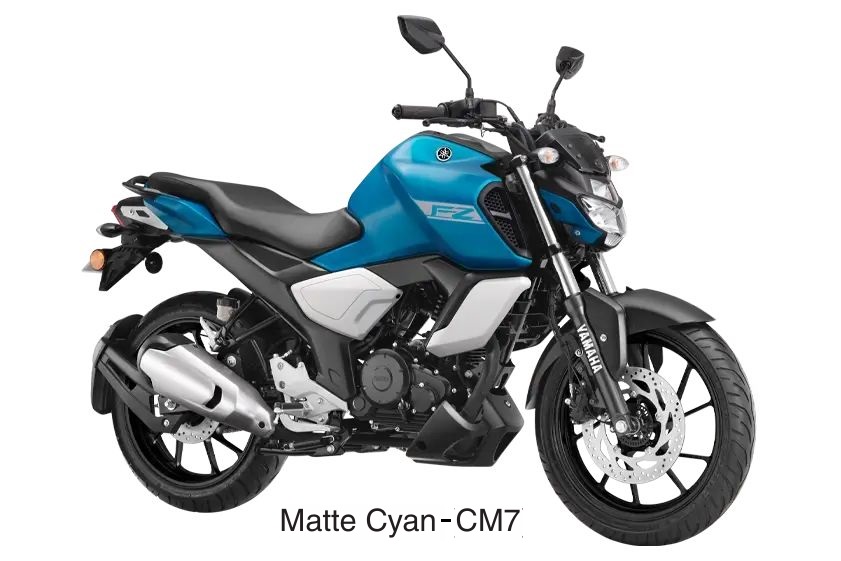

| 16B | B4GF312200PA | COVER, OUTER 1 | ₹ 198 | 1 | FOR CM7 | |
| 17 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 1 | ||
| 19A | B4GF313200P0 | COVER OUTER 2 SMX | ₹ 132 | 1 | FOR SMX | |
| 19B | B4GF313200PA | COVER, OUTER 2 | ₹ 198 | 1 | FOR CM7 | |
| 20 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 1 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Piercing through the darkness of a midnight highway, the Headlight Assy of your Yamaha FZ V3 is your primary source of confidence. This unit features a bright Bulb casting a wide plus clear beam on the road. The assembly remains perfectly stable even on broken pavement thanks to the robust Bracket Headlight Stay one plus various Nut Spring fasteners. Protecting the internal optics is the Cover Upper one, along with the Cover Outer SMX panels that define the aggressive face of the motorcycle. Every Collar plus Grommet in the mounting system is designed to dampen engine harmonics, extending the life of the illumination components. A well maintained headlight is crucial for identifying hazards early on Indian roads. Ensure your vision remains uncompromised by using genuine Yamaha lighting parts that offer superior fitment plus durability for every night time excursion you plan. Clarity meets high performance engineering in this module.
