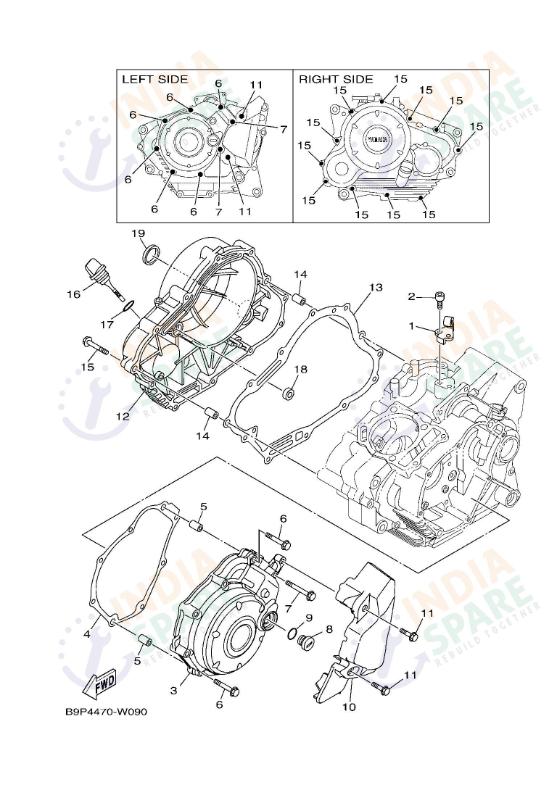

CRANKCASE COVER 1
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21CE54410000 | HOLDER CLUTCH CABLE | ₹ 13 | 1 | ||
| 2 | 913120601400 | BOLT | ₹ 5 | 2 | ||
| 3 | B9PE54110000 | COVER CRANKCASE 1 | ₹ 543 | 1 | ||
| 4 | 2GSE54510000 | GASKET CRANKCASE COVER 1 | ₹ 13 | 1 | ||
| 5 | 918302101400 | PIN DOWEL | ₹ 3 | 2 | ||
| 6 | 950220604000 | BOLT FLANGE | ₹ 18 | 6 | ||
| 7 | 950220605000 | BOLT FLANGE | ₹ 17 | 2 | ||
| 8 | 903401411700 | PLUG STRAIGHT SCREW-BLACK | ₹ 11 | 1 | ||
| 9 | 932101489900 | O RING | ₹ 9 | 1 | ||
| 10 | B9PE54180000 | COVER CHAIN CASE | ₹ 138 | 1 | ||
| 11 | 950220601600 | BOLT FLANGE | ₹ 11 | 2 | ||
| 12 | B1NE54210000 | COVER CRANKCASE 2 | ₹ 1073 | 1 | ||
| 13 | 2GSE54610000 | GASKET CRANKCASE COVER 2 | ₹ 88 | 1 | ||
| 14 | 918302101400 | PIN DOWEL | ₹ 3 | 2 | ||
| 15 | 950220604000 | BOLT FLANGE | ₹ 18 | 11 | ||
| 16 | 54BE53620000 | PLUG OIL LEVEL | ₹ 16 | 1 | ||
| 17 | 932101980900 | O RING | ₹ 4 | 1 | ||
| 18 | 931011083800 | OIL SEAL IN RH COVER | ₹ 18 | 1 | ||
| 19 | 903383080200 | PLUG | ₹ 89 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The internal heart of the Yamaha FZ RAVE is protected plus sealed by the Crankcase Cover One assembly. These outer shells include the Cover Crankcase One together with the matching Cover Crankcase Two which maintain the engine oil level. Between the metal surfaces, the Gasket Crankcase Cover ensures a leak proof seal for the lubrication system. For rider convenience, the assembly includes a Plug Oil Level for quick inspection of the engine oil. The Holder Clutch Cable provides a secure anchor point for the control lines. Furthermore, the Cover Chain Case protects the drive sprocket from road debris plus dust. Every Pin Dowel plus Bolt Flange ensures that the covers remain perfectly aligned with the engine block. The use of high quality O-ring plus Oil Seal in Rh Cover prevents moisture ingress. These covers are finished in a durable mat black coating to resist heat plus environmental wear. Choosing genuine covers keeps your engine clean plus protected from the elements.
