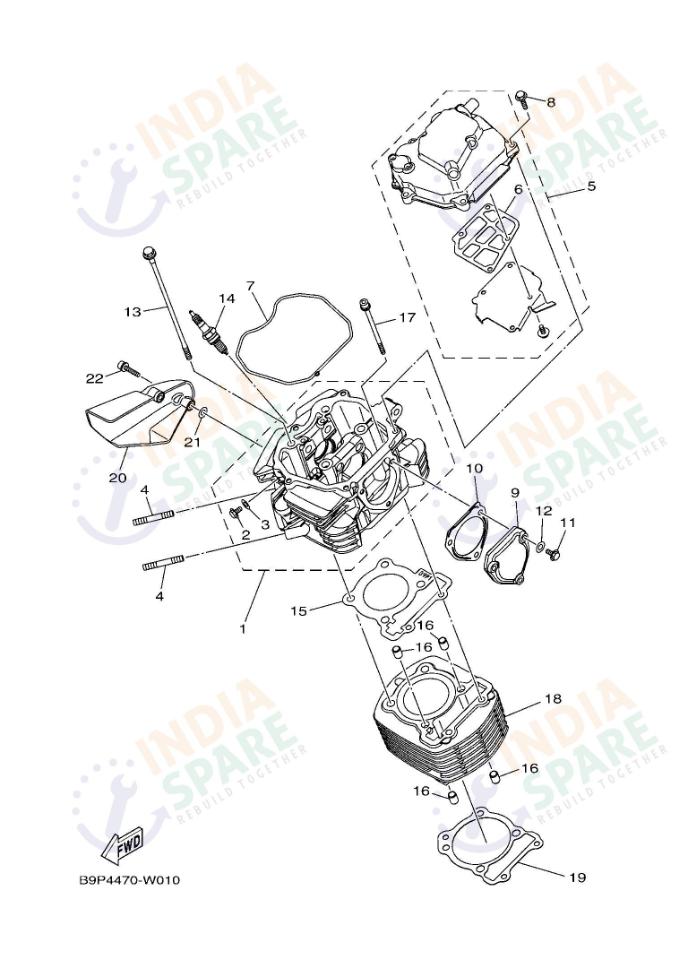

CYLINDER
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9PE11020000 | CYLINDER HEAD ASSY | ₹ 2891 | 1 | ||
| 2 | 950220601200 | BOLT FLANGE | ₹ 8 | 1 | ||
| 3 | 904300681700 | GASKET | ₹ 8 | 1 | ||
| 4 | 956120863500 | BOLT STUD | ₹ 11 | 2 | ||
| 5 | 2GSE11901100 | COVER CYLINDER HEAD 1 | ₹ 359 | 1 | ||
| 6 | 2GSE11690000 | GASKET BREATHER COVER | ₹ 10 | 1 | ||
| 7 | 2GSE11932000 | GASKET HEAD COVER 1 | ₹ 75 | 1 | ||
| 8 | 950220602500 | BOLT FLANGE | ₹ 11 | 5 | ||
| 9 | 2GSE11860000 | COVER CYLINDER HEAD SIDE | ₹ 87 | 1 | ||
| 10 | 2GSE24351000 | GASKET | ₹ 30 | 1 | ||
| 11 | 950220602500 | BOLT FLANGE | ₹ 11 | 3 | ||
| 12 | 904300681700 | GASKET | ₹ 8 | 3 | ||
| 13 | 90105088K000 | BOLT, FLANGE | ₹ 60 | 4 | ||
| 14 | 947030088500 | SPARK PLUG | ₹ 190 | 1 | ||
| 15 | B9PE11810000 | GASKET CYLINDER HEAD 1 | ₹ 148 | 1 | ||
| 16 | 918101480400 | PIN DOWEL | ₹ 7 | 4 | ||
| 17 | 901100687000 | BOLT, HEXAGON SOCKET HEAD | ₹ 35 | 2 | ||
| 18 | BACE13100000 | CYLINDER | ₹ 0 | 1 | ||
| 19 | 21CE13511000 | GASKET CYLINDER | ₹ 85 | 1 | ||
| 20 | 21CE26611000 | DUCT | ₹ 59 | 1 | ||
| 21 | 902010582000 | WASHER PLATE | ₹ 12 | 2 | ||
| 22 | 901100625600 | BOLT, HEXAGON SOCKET HEAD | ₹ 42 | 2 |
