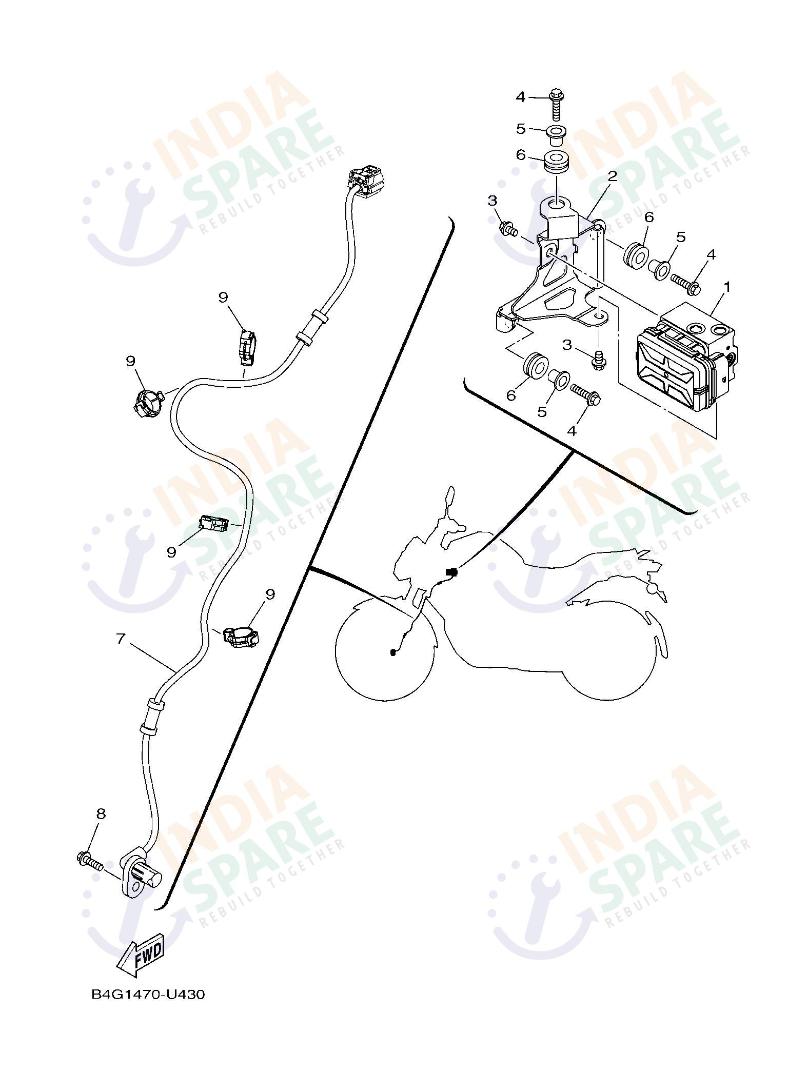

ELECTRICAL 3
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BKHH59300800 | HYDRAULIC UNIT ASSY | ₹ 13840 | 1 | ||
| 2 | B4GF175T0000 | BRACKET 1 | ₹ 188 | 1 | ||
| 3 | 950220601000 | BOLT FLANGE | ₹ 15 | 2 | ||
| 4 | 950220602000 | BOLT FLANGE | ₹ 15 | 3 | ||
| 5 | 90387068N800 | COLLAR | ₹ 13 | 3 | ||
| 6 | 904801422900 | GROMMET | ₹ 9 | 3 | ||
| 7 | B9PH59700100 | WHEEL SENSOR ASSY, FRONT | ₹ 1150 | 1 | ||
| 8 | 950220601600 | BOLT FLANGE | ₹ 11 | 1 | ||
| 9 | 904641201300 | CLAMP | ₹ 120 | 4 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The Yamaha FZ RAVE introduces a new era of braking intelligence with the advanced Electrical Three system. This assembly integrates the sophisticated Hydraulic Unit Assy which manages fluid pressure with extreme precision. Mounted securely via the primary Bracket plus specialized Bolt Flange hardware, this unit serves as the brain of the antilock braking mechanism. The Wheel Sensor Assy Front constantly monitors rotational speed to prevent wheel lock during emergency stops on slippery Indian roads. Every Collar plus Grommet within this setup ensures vibration dampening for long term durability. Choosing genuine components ensures that the communication between sensors remains uninterrupted. This technology provides riders with immense confidence while navigating through unpredictable traffic or monsoon rain. It represents a significant step forward in motorcycle safety engineering. Proper installation of these clamps plus bolts ensures the system stays rigid. Reliability remains the cornerstone of this electrical architecture.
