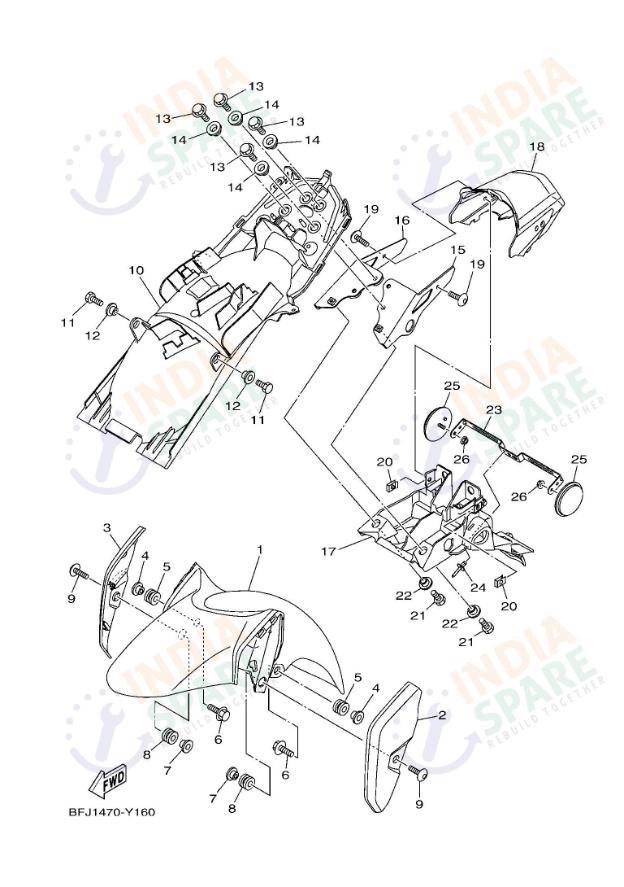

FENDER
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF15110000 | FENDER FRONT | ₹ 234 | 1 | ||

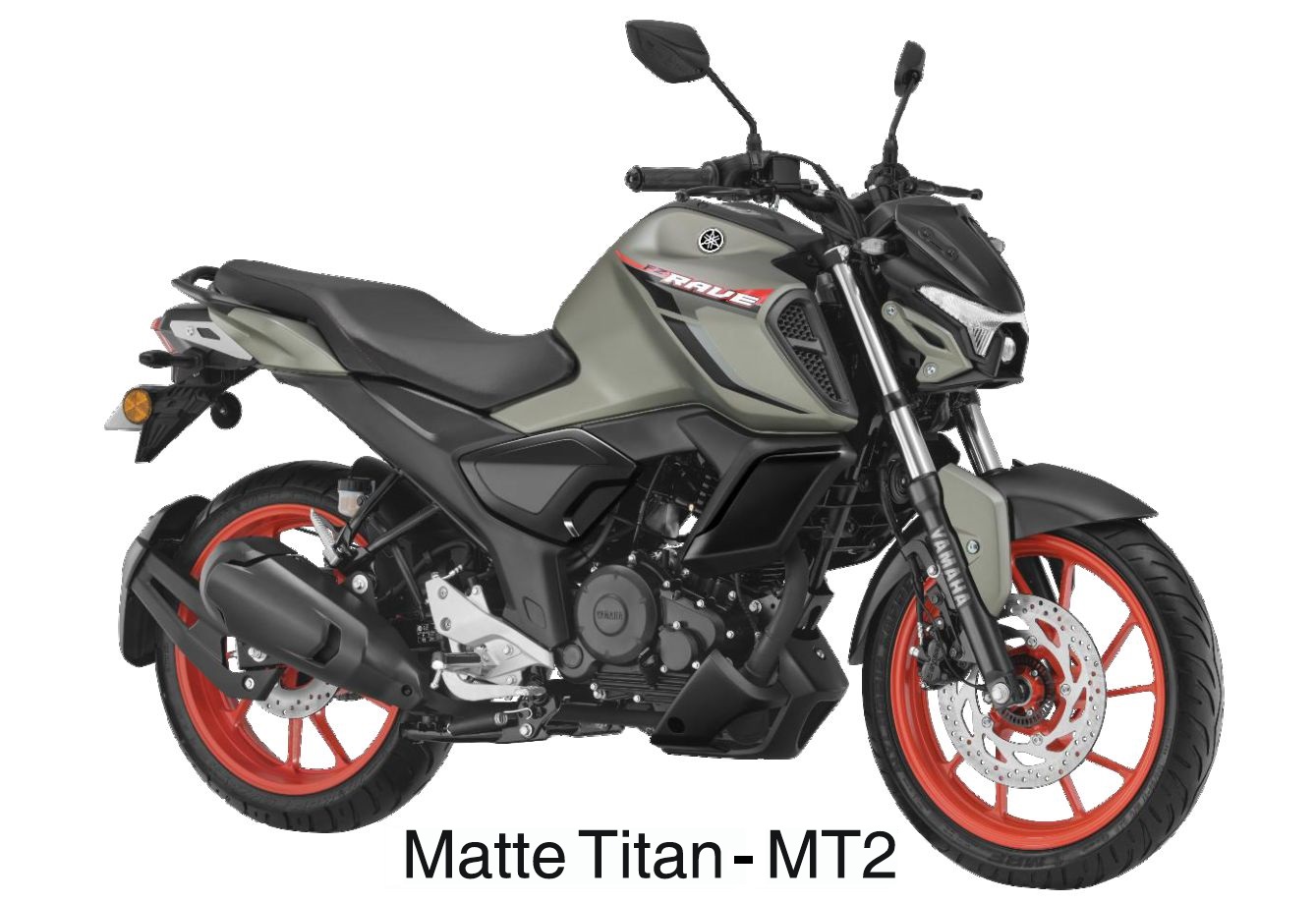

| 2A | B4GF155100PD | FENDER, OVER | ₹ 195 | 1 | FOR MT2 | |

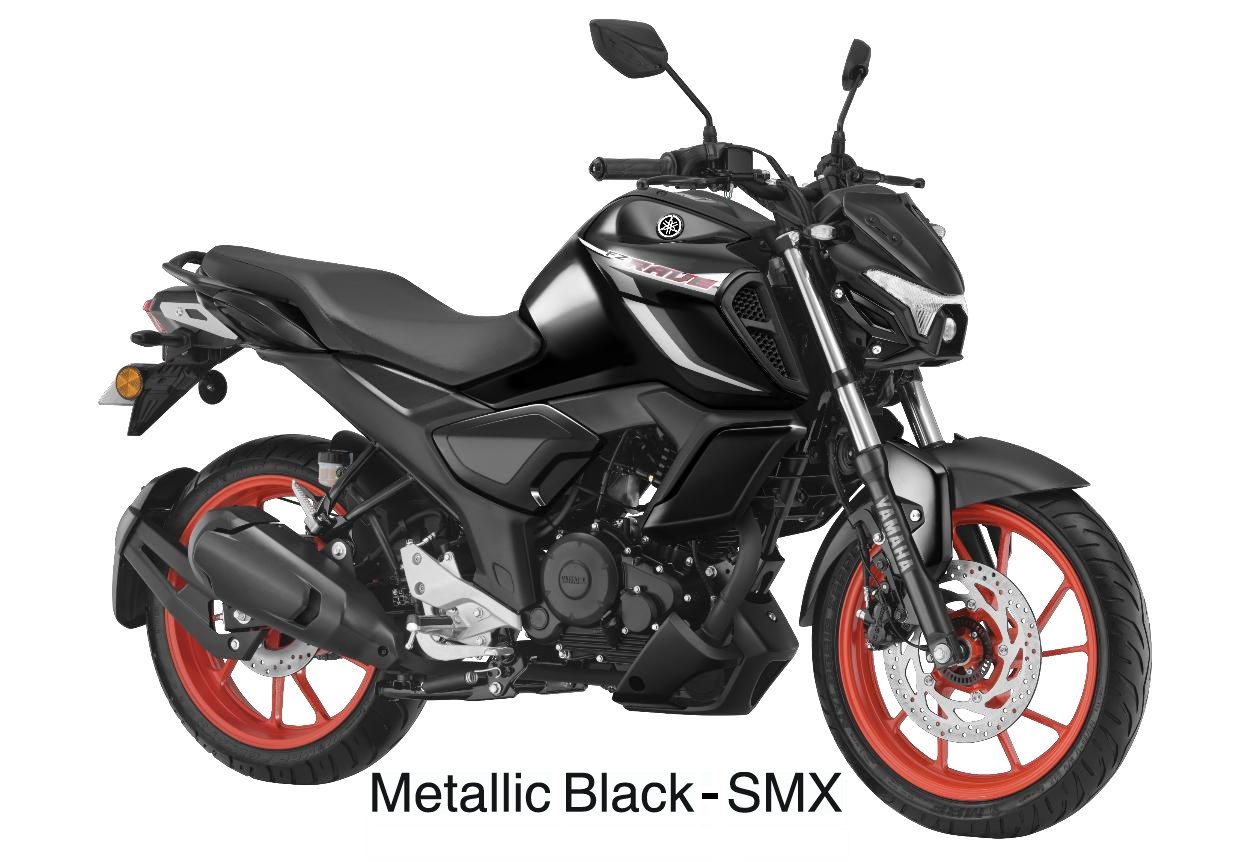

| 2B | B4GF155100P2 | FENDER, OVER | ₹ 553 | 1 | FOR SMX | |
| 3A | B4GF155500PD | FENDER, OVER 2 | ₹ 195 | 1 | FOR MT2 | |
| 3B | B4GF155500P2 | FENDER, OVER 2 | ₹ 553 | 1 | FOR SMX | |
| 4 | 90387068C500 | COLLAR | ₹ 8 | 2 | ||
| 5 | 904800880100 | GROMMET | ₹ 10 | 2 | ||
| 6 | 958220602000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 7 | 90387068S500 | COLLAR | ₹ 20 | 2 | ||
| 8 | 904801282400 | GROMMET | ₹ 14 | 2 | ||
| 9 | 901110686800 | BOLT HEX. SOCKET BUTTON | ₹ 26 | 2 | ||
| 10 | BFJF16110000 | FENDER, REAR | ₹ 244 | 1 | ||
| 11 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 12 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 13 | 958220602000 | BOLT FLANGE | ₹ 5 | 4 | ||
| 14 | 903870807900 | COLLAR | ₹ 81 | 4 | ||
| 15 | B4GF16130000 | STAY FENDER 1 | ₹ 167 | 1 | ||
| 16 | B4GF16140000 | STAY FENDER 2 | ₹ 167 | 1 | ||
| 17 | B4GF16510000 | COVER REAR FENDER | ₹ 110 | 1 | ||
| 18 | B4GF163A0000 | COVER REAR FENDER 1 | ₹ 24 | 1 | ||
| 19 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 20 | 901830606900 | NUT SPRING | ₹ 159 | 2 | ||
| 21 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 22 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 23 | BK7F16410000 | BRACKET REFLECTOR | ₹ 35 | 1 | ||
| 24 | 902674884500 | RIVET BLIND | ₹ 9 | 1 | ||
| 25 | 2FCH51110000 | REFLECTOR FRONT 1 | ₹ 23 | 2 | ||
| 26 | 957070550000 | NUT FLANGE | ₹ 1 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Protecting the Yamaha FZ RAVE from road grime is the primary task of the Fender assembly. This kit includes the Fender Front together with the Fender Rear for complete coverage of both tires. The front unit features an additional Fender Over plus Fender Over Two for enhanced protection against water spray. Every fender is secured using specialized Bolt Flange together with resilient Grommet plus Collar hardware. The Rear Fender houses the license plate plus includes a dedicated Stay Fender plus Reflector Front for safety. Protective elements like the Cover Rear Fender ensure the plastic remains durable against stone chips. Every Bolt Hex Socket Button plus Nut Spring within this catalog is manufactured to resist corrosion. Using genuine fenders ensures a perfect fit plus prevents the plastic from cracking under engine vibrations. These components are vital for maintaining the cleanliness of the motorcycle engine plus the rider clothing. They provide a refined plus practical finishing touch to the chassis.
