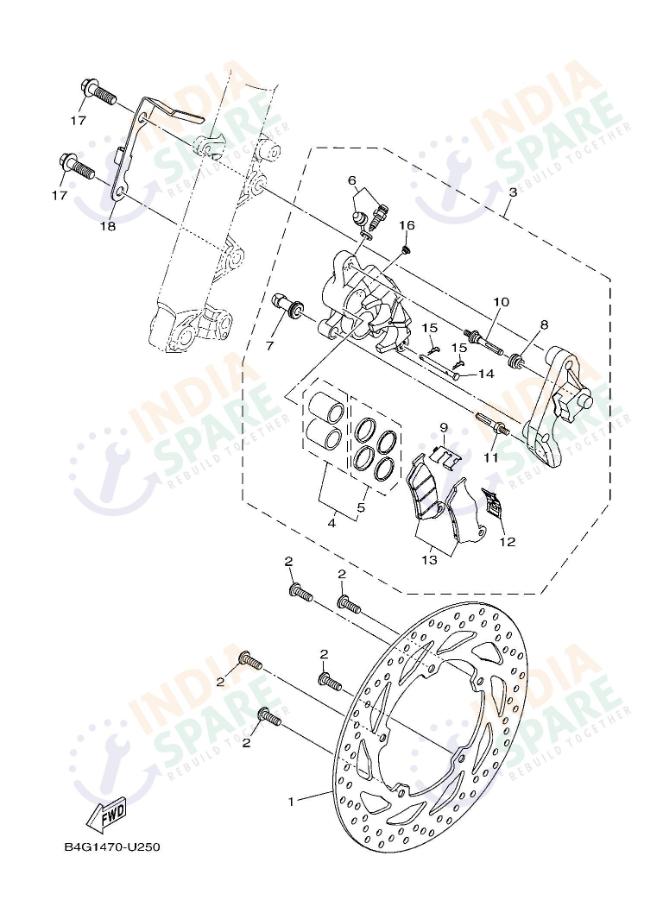

FRONT BRAKE CALIPER
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B97F582U0000 | DISC BRAKE (RIGHT) | ₹ 1280 | 1 | ||
| 2 | 901110802900 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 5 | ||
| 3 | B9EF580U0000 | CALIPER ASSY (RIGHT) | ₹ 2000 | 1 | ||
| 4 | 54BW00570000 | PISTON ASSY CALIPER | ₹ 557 | 1 | ||
| 5 | 54BW00470000 | CALIPER SEAL SET | ₹ 99 | 1 | ||
| 6 | 5USW00480000 | BLEED SCREW SET | ₹ 27 | 1 | ||
| 7 | 54BF59370000 | BOOT 2 | ₹ 27 | 1 | ||
| 8 | 54BF59170000 | BOOT CALIPER | ₹ 23 | 1 | ||
| 9 | 54BF59390000 | CLIP PAD | ₹ 11 | 1 | ||
| 10 | 54BF59140000 | PIN SLIDE | ₹ 27 | 1 | ||
| 11 | 54BF59260000 | BOLT | ₹ 26 | 1 | ||
| 12 | 54BF59190000 | SUPPORT PAD | ₹ 28 | 1 | ||
| 13 | B97W00450000 | BRAKE PAD SET | ₹ 425 | 1 | ||
| 14 | 54BF59240000 | PIN PAD | ₹ 35 | 1 | ||
| 15 | 54BF59250000 | CLIP | ₹ 10 | 2 | ||
| 16 | 54BF59160000 | PLUG | ₹ 6 | 1 | ||
| 17 | 901051031900 | BOLT FLANGE | ₹ 40 | 2 | ||
| 18 | B4GF33170000 | HOLDER CABLE | ₹ 58 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Frontal stopping force for the Yamaha FZ RAVE is provided by the precision Front Brake Caliper assembly. This unit clamps onto the Disc Brake Right using a high friction Brake Pad Set for rapid deceleration. The Piston Assy Caliper moves within the housing supported by the Caliper Seal Set which prevents hydraulic fluid loss. Every Boot plus the secondary Boot Caliper protects the sliding pins from dust plus moisture. The assembly is secured via the Bolt Flange plus includes a dedicated Holder Cable for the sensor lines. To ensure a quiet operation, the unit features a Pad Support plus specific Clip Pad hardware. The Bleed Screw Set allows for easy air removal from the brake lines. Genuine caliper parts provide the stopping power plus feel required for modern street riding. This component is a critical safety module for avoiding collisions in traffic. Every Pin Slide plus Plug is engineered for high durability plus heat resistance during intense usage.
