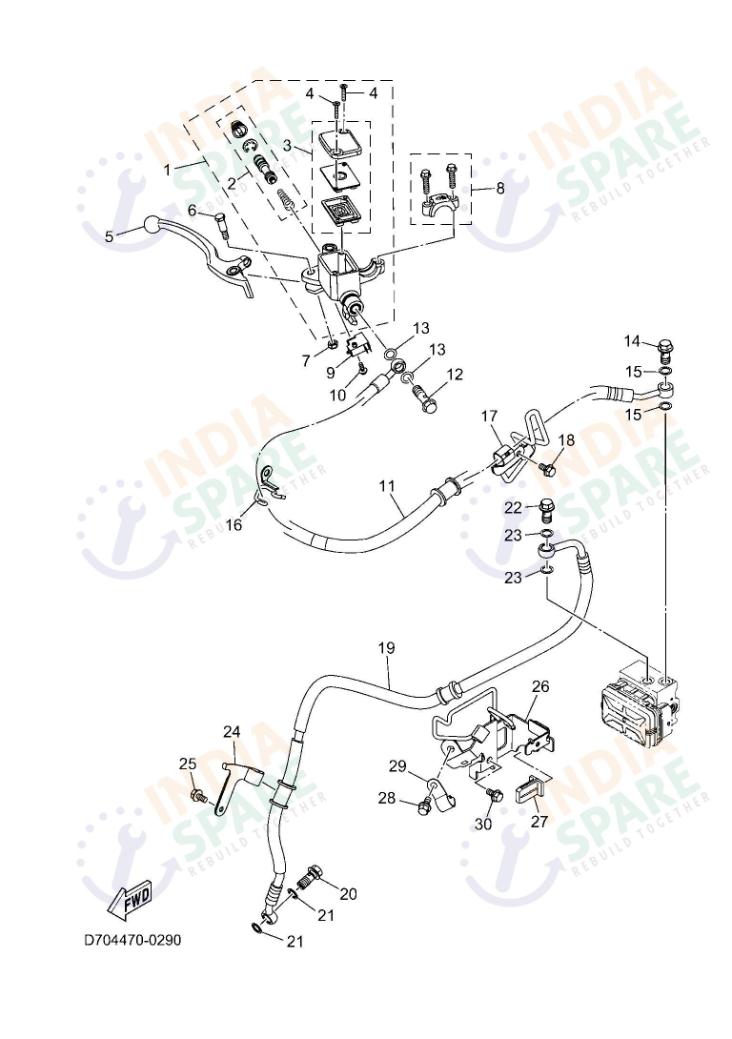

FRONT MASTER CYLINDER
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BPDF580A0000 | MASTER CYLINDER SU | ₹ 2304 | 1 | ||
| 2 | BPDF58070000 | CYLINDER KIT, MAST | ₹ 525 | 1 | ||
| 3 | BPDWF5850000 | CAP RESERVOIR KIT | ₹ 474 | 1 | ||
| 4 | 54BF589H0000 | SCREW | ₹ 5 | 2 | ||
| 5 | B97H39220000 | LEVER 2 | ₹ 193 | 1 | ||
| 6 | 901090685900 | BOLT | ₹ 14 | 1 | ||
| 7 | 54BF63380000 | NUT ADJUSTING | ₹ 6 | 1 | ||
| 8 | BPDWF5860000 | CLAMP SCREW KIT | ₹ 359 | 1 | ||
| 9 | B97H39800000 | FRONT STOP SWITCH | ₹ 81 | 1 | ||
| 10 | B97F589H0000 | SCREW | ₹ 5 | 1 | ||
| 11 | BFJF58720000 | HOSE, BRAKE 1 | ₹ 750 | 1 | ||
| 12 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 13 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 14 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 15 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 16 | B4GF587A0000 | HOLDER BREAK HOSE | ₹ 18 | 1 | ||
| 17 | BGBF61311000 | GUIDE, CABLE 1 | ₹ 161 | 1 | ||
| 18 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 19 | BFJF58740000 | HOSE, BRAKE | ₹ 1360 | 1 | ||
| 20 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 21 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 22 | 904011001500 | BOLT UNION | ₹ 34 | 1 | ||
| 23 | 902011011800 | WASHER PLAIN | ₹ 5 | 2 | ||
| 24 | B4GF58760000 | HOLDER BRAKE HOSE 2 | ₹ 37 | 1 | ||
| 25 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 26 | BFJF58871000 | HOLDER, BRAKE HOSE | ₹ 424 | 1 | ||
| 27 | 45SF17780000 | DAMPER LOCATING 1 | ₹ 8 | 1 | ||
| 28 | 958120601200 | BOLT FLANGE | ₹ 3 | 1 | ||
| 29 | BFJF58750000 | HOLDER, BRAKE HOSE 1 | ₹ 32 | 1 | ||
| 30 | 920120601000 | BOLT BUTTON HEAD | ₹ 14 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The primary stopping power of the Yamaha FZ RAVE is controlled by the Front Master Cylinder assembly at the handlebar. This hydraulic unit includes the Cylinder Kit Mast which builds the pressure needed for the front disc brake. The Cap Reservoir Kit provides a secure seal for the brake fluid while the Lever Two offers an ergonomic grip for the rider. For safety, the Front Stop Switch is integrated to signal following traffic during deceleration. The assembly is connected to the caliper via the high pressure Hose Brake plus specialized Bolt Union hardware. Every Washer Plain plus Holder Brake Hose ensures the lines remain secure plus leak free. Choosing genuine master cylinder parts provides a crisp plus predictable braking response. This system is critical for navigating through unpredictable city traffic where quick stops are common. High quality internal components resist wear plus maintain hydraulic integrity over thousands of kilometers. Safety is the ultimate goal.
