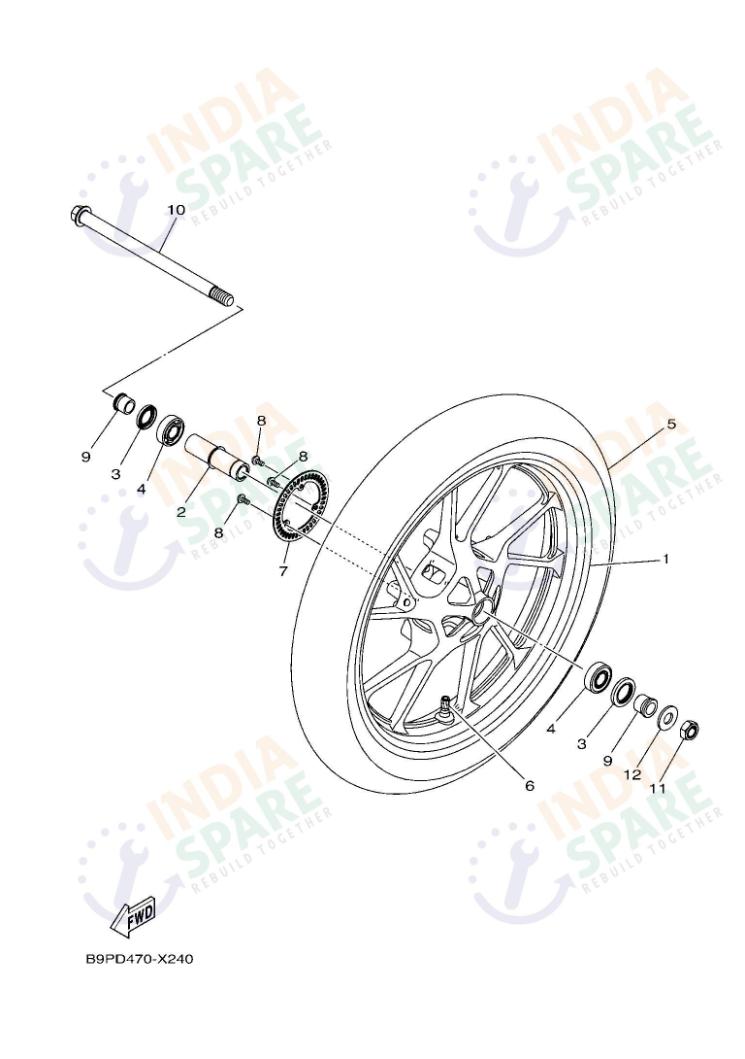

FRONT WHEEL
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9EF516801P1 | CAST WHEEL FRONT | ₹ 5019 | 1 | ||
| 2 | 21CF510C1000 | COLLAR ASSY. | ₹ 27 | 1 | ||
| 3 | 931062280800 | OIL SEAL | ₹ 9 | 2 | ||
| 4 | 93306202XT00 | BEARING ( USE IN REAR WHEEL H | ₹ 185 | 2 | ||
| 5A | 941101781800 | TIRE FRONT ( 100/80-17 ) MRF | ₹ 1751 | 1 | ||
| 5B | 941101782400 | TIRE | ₹ 0 | 1 | ||
| 6 | 939000082400 | VALVE RIM | ₹ 19 | 1 | ||
| 7 | B9EF517G0000 | ROTOR SENSOR | ₹ 107 | 1 | ||
| 8 | 901490503000 | SCREW | ₹ 21 | 3 | ||
| 9 | 1CKF51860000 | COLLAR WHEEL | ₹ 23 | 2 | ||
| 10 | 21CF51810000 | AXLE WHEEL | ₹ 152 | 1 | ||
| 11 | 901851480000 | NUT SELF-LOCKING | ₹ 28 | 1 | ||
| 12 | 929071420000 | WASHER | ₹ 8 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Leading the way for the Yamaha FZ RAVE is the Front Wheel assembly which defines the steering response plus stability. This unit features a lightweight Cast Wheel Front designed for agile direction changes. It is equipped with the Tire Front 100 80 17 Mrf which offers exceptional grip on diverse Indian road conditions. The central Axle Wheel provides the strength needed for the front end while the Nut Self Locking ensures everything stays secure. Inside the hub, the high quality Bearing plus Oil Seal reduce rotational resistance for a smoother ride. The assembly also includes a Rotor Sensor which is vital for the antilock braking system. Every Collar Wheel plus Washer ensures perfect alignment within the fork tubes. Choosing genuine wheel components ensures the structural integrity plus safety of your machine. This wheel is the first point of contact with the road and must be maintained with care. It provides the feedback needed for confident cornering.
