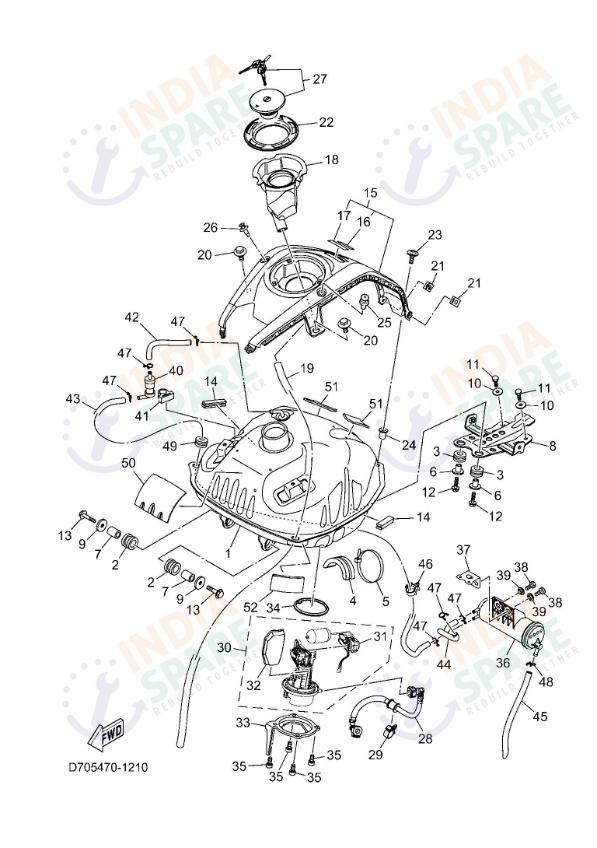

FUEL TANK
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GF41100000 | FUEL TANK COMP. | ₹ 2138 | 1 | ||
| 2 | 21CF41810000 | DAMPER LOCATING 1 | ₹ 7 | 2 | ||
| 3 | 904801536300 | GROMMET | ₹ 110 | 2 | ||
| 4 | 21CF41830000 | DAMPER LOCATING 3 | ₹ 19 | 1 | ||
| 5 | 904648080200 | CLAMP | ₹ 13 | 1 | ||
| 6 | 90387068B200 | COLLAR | ₹ 11 | 2 | ||
| 7 | 90387107H600 | COLLAR | ₹ 10 | 2 | ||
| 8 | B4GF41910000 | BRACKET FUEL TANK 1 | ₹ 215 | 1 | ||
| 9 | 90201060A300 | WASHER PLAIN | ₹ 8 | 2 | ||
| 10 | 902010638000 | WASHER PLAIN | ₹ 3 | 2 | ||
| 11 | 970120601400 | BOLT | ₹ 5 | 2 | ||
| 12 | 901050616900 | BOLT FLANGE | ₹ 5 | 2 | ||
| 13 | 958220603000 | BOLT FLANGE | ₹ 5 | 2 | ||
| 14 | B97F41880000 | MOLD, FUEL TANK | ₹ 5 | 2 | ||
| 15 | B4GXF17D0000 | COVER TOP | ₹ 204 | 1 | ||
| 16 | B4GF45490000 | EMBLEM | ₹ 20 | 1 | ||
| 17 | B97F15680000 | LABEL WARNING | ₹ 9 | 1 | ||
| 18 | B4GF414A0000 | COVER FILLER | ₹ 94 | 1 | ||
| 19 | 904451481100 | HOSE | ₹ 47 | 1 | ||
| 20 | 90109068B200 | BOLT | ₹ 13 | 2 | ||
| 21 | 901830580700 | NUT SPRING | ₹ 9 | 2 | ||
| 22 | 21CF461400P0 | PLATE CAP - S8 (SILVER) | ₹ 68 | 1 | ||
| 23 | 901590506500 | SCREW WITH WASHER | ₹ 6 | 1 | ||
| 24 | 901790580400 | NUT | ₹ 10 | 1 | ||
| 25 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 26 | 902690681200 | RIVET | ₹ 20 | 1 | ||
| 27 | 21CWF4612000 | CAP ASSY WITH LOCK | ₹ 410 | 1 | ||
| 28 | B9PE39711000 | PIPE FUEL 1 | ₹ 870 | 1 | ||
| 29 | 904641600600 | CLAMP | ₹ 59 | 1 | ||
| 30 | B9PE39070100 | FUEL PUMP COMP. | ₹ 5512 | 1 | ||
| 31 | B9PH57520000 | SENDER UNIT ASSY FUEL METER | ₹ 690 | 1 | ||
| 32 | B7JE39150000 | FILTER | ₹ 211 | 1 | ||
| 33 | B7JF44910000 | BRACKET FUEL PUMP | ₹ 73 | 1 | ||
| 34 | 2GSF414G0100 | SEAL | ₹ 160 | 1 | ||
| 35 | 913320501000 | BOLT | ₹ 2 | 4 | ||
| 36 | B9PF41700000 | CANISTER ASSY | ₹ 275 | 1 | ||
| 37 | B9PH60120000 | BRACKET SENSOR FITTING 1 | ₹ 22 | 1 | ||
| 38 | 958120601600 | BOLT FLANGE | ₹ 3 | 2 | ||
| 39 | 903870604800 | COLLAR | ₹ 7 | 2 | ||
| 40 | 2GSF41800000 | ROLL OVER VALVE ASSY | ₹ 120 | 1 | ||
| 41 | 2GSF419A0000 | HOLDER | ₹ 10 | 1 | ||
| 42 | 904451083700 | HOSE | ₹ 60 | 1 | ||
| 43 | B4GF43130000 | PIPE 3 | ₹ 66 | 1 | ||
| 44 | 2GSF43140000 | PIPE 4 | ₹ 15 | 1 | ||
| 45 | 2GSF43150000 | PIPE 5 | ₹ 25 | 1 | ||
| 46 | 904641600600 | CLAMP | ₹ 59 | 1 | ||
| 47 | 904670900600 | CLIP | ₹ 5 | 6 | ||
| 48 | 90467100A100 | CLIP | ₹ 3 | 1 | ||
| 49 | 904801536300 | GROMMET | ₹ 110 | 1 | ||
| 50 | 905200284500 | SEAT PIPE | ₹ 20 | 1 | ||
| 51 | 905200382900 | SEAT PIPE | ₹ 12 | 2 | ||
| 52 | 905200881300 | SEAT PIPE | ₹ 12 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Storing the energy for the Yamaha FZ RAVE is the role of the robust Fuel Tank assembly. The Fuel Tank Comp is a high strength metal reservoir designed to survive the vibrations of the road. It features a high performance Fuel Pump Comp together with a Sender Unit Assy for accurate fuel level monitoring. The system is protected by various Dampers including the Damper Locating Three to isolate the tank from the chassis. Every Pipe Fuel plus specialized Clamp ensures a secure plus leak free delivery to the engine. The Cap Assy with Lock provides security while allowing for easy refueling. Furthermore, the Canister Assy plus Roll Over Valve Assy are integrated for environmental safety plus pressure management. Every Bolt plus Nut Spring within this kit is manufactured to strict factory standards. Using genuine fuel system parts ensures the longevity of the fuel pump plus consistent engine performance. This assembly is the heart of your long distance touring capability.
