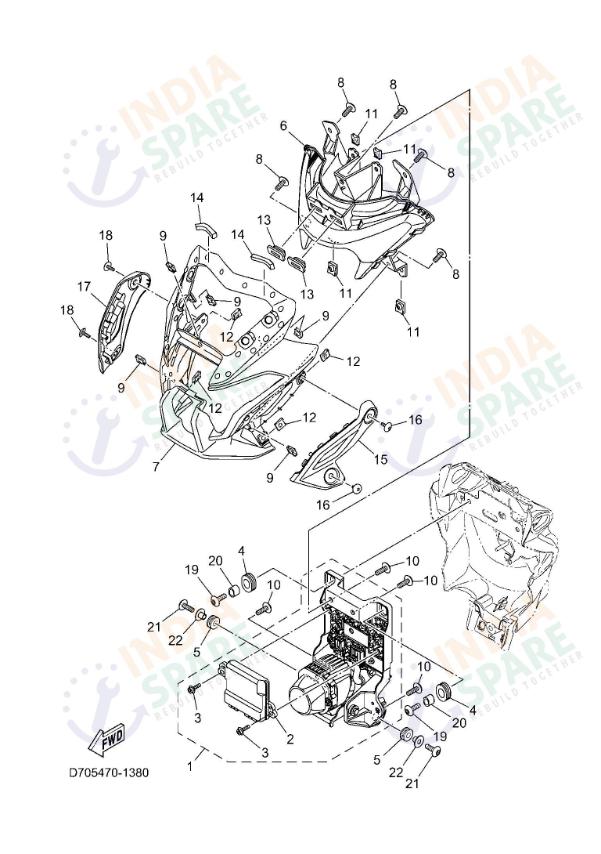

HEADLIGHT
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | BFWH43000100 | HEADLIGHT ASSY | ₹ 17760 | 1 | ||
| 2 | BEB854900100 | LIGHT CONTROL UNIT | ₹ 5155 | 1 | ||
| 3 | 2PW841920000 | 2PW841920000 | ₹ 0 | 2 | ||
| 4 | 904800181100 | GROMMET | ₹ 8 | 2 | ||
| 5 | 904801281500 | GROMMET | ₹ 8 | 2 | ||
| 6 | BFWH43011000 | PILOT LIGHT ASSY 1 | ₹ 2310 | 1 | ||
| 7 | D70F31210000 | COVER, UPPER 1 | ₹ 95 | 1 | ||
| 8 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 5 | ||
| 9 | 901830581800 | NUT SPRING | ₹ 9 | 5 | ||
| 10 | 977075001600 | SCREW TRUSS HD.TAP | ₹ 4 | 4 | ||
| 11 | 901830581800 | NUT SPRING | ₹ 9 | 4 | ||
| 12 | 901830581800 | NUT SPRING | ₹ 9 | 4 | ||
| 13 | B9XF63260000 | GROMMET | ₹ 10 | 2 | ||
| 14 | 905201083400 | SEAT PIPE | ₹ 18 | 2 | ||

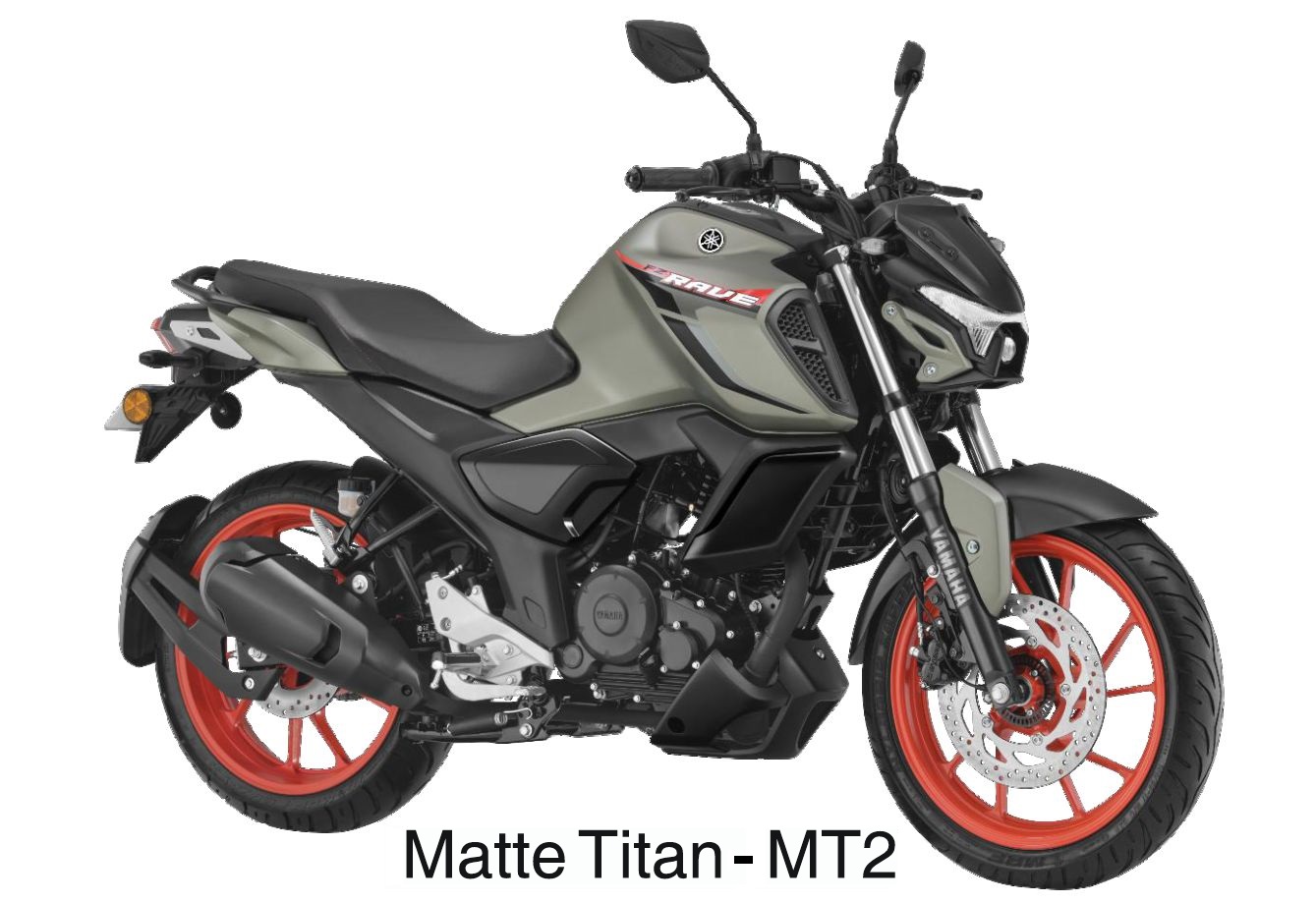

| 15A | D70F312200P0 | COVER, OUTER 1 | ₹ 215 | 1 | FOR MT2 | |

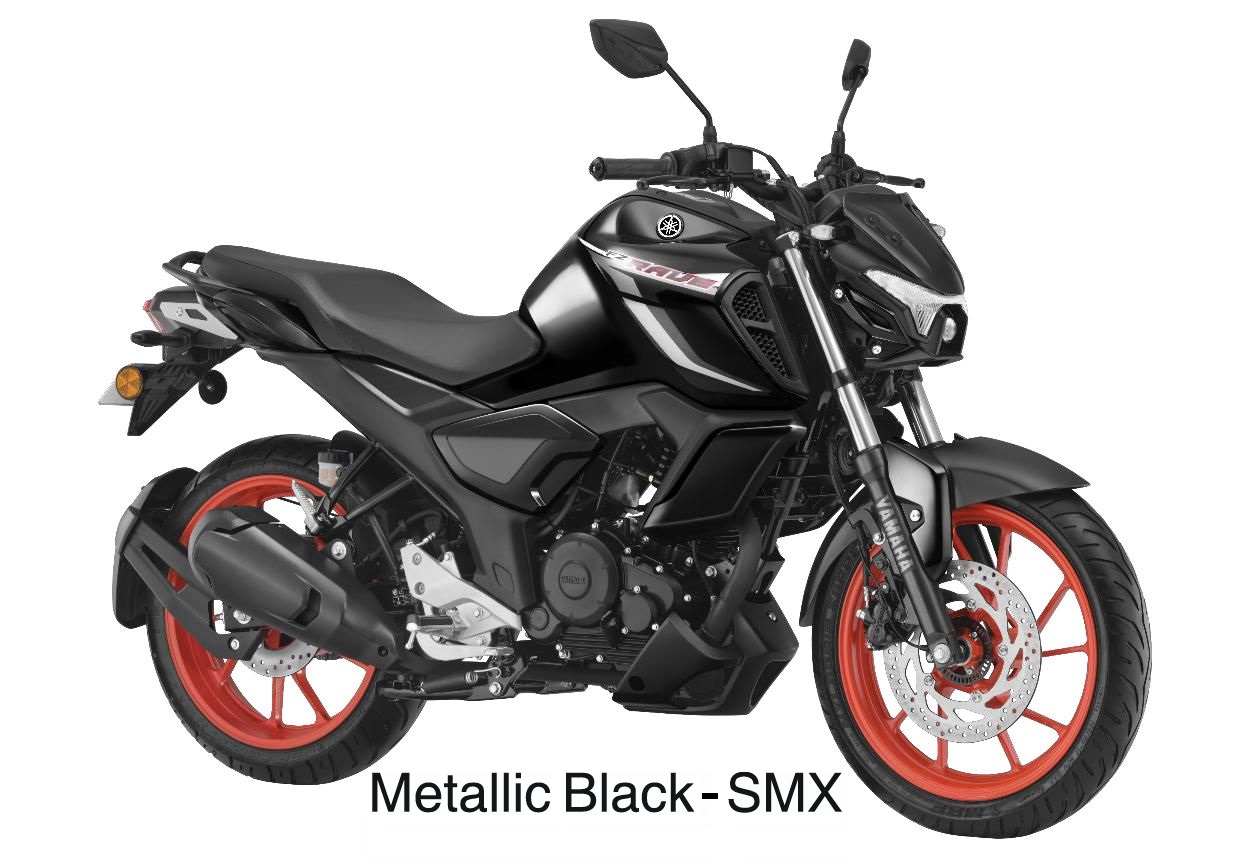

| 15B | D70F312200P1 | COVER, OUTER 1 | ₹ 215 | 1 | FOR SMX | |
| 16 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 17A | D70F313200P0 | COVER, OUTER 2 | ₹ 215 | 1 | FOR MT2 | |
| 17B | D70F313200P1 | COVER, OUTER 2 | ₹ 215 | 1 | FOR SMX | |
| 18 | 901600581200 | SCREW ROUND TAPPING | ₹ 10 | 2 | ||
| 19 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 20 | 20PF17490000 | COLLAR | ₹ 4 | 2 | ||
| 21 | 901490682900 | SCREW | ₹ 25 | 2 | ||
| 22 | 90387068C500 | COLLAR | ₹ 8 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Piercing through the darkness requires the advanced Headlight assembly of the Yamaha FZ RAVE which features modern lighting technology. This system utilizes a dedicated Light Control Unit to manage the power output for the main beam plus the Pilot Light Assy. The housing is secured using specialized Nut Spring plus Screw Truss Hd Tap hardware for a flush aerodynamic fit. Protective elements like the Seat Pipe plus various Grommets ensure that the internal electronics remain isolated from engine vibrations. The distinctive look of the motorcycle is enhanced by the Cover Outer panels which give the front end its aggressive streetfighter personality. Every Collar plus Screw within this setup is engineered to maintain precise alignment of the light beam. Using genuine headlight components ensures maximum road illumination for safer night riding. This assembly provides the clarity needed to spot potholes or obstacles well in advance. Style meets function in this essential front end module.
