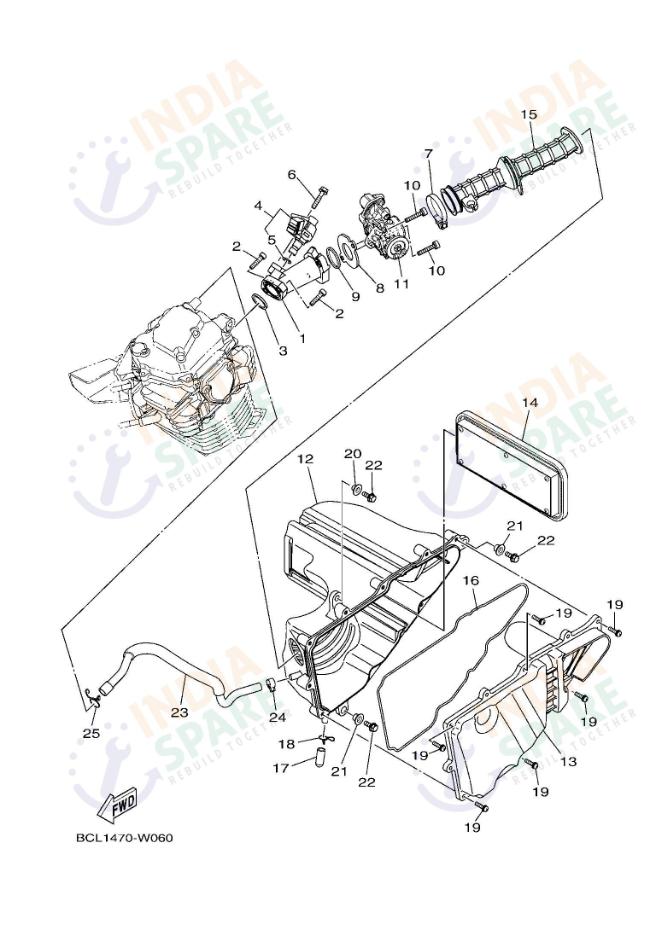

INTAKE
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9PE35852000 | MANIFOLD | ₹ 208 | 1 | ||
| 2 | 913120602500 | BOLT | ₹ 7 | 2 | ||
| 3 | 2GSE36450000 | GASKET MANIFOLD 1 | ₹ 30 | 1 | ||
| 4 | BACE37700000 | INJECTOR ASSY | ₹ 2681 | 1 | ||
| 5 | BACE41A10000 | SEAL RING | ₹ 145 | 1 | ||
| 6 | 958120603000 | BOLT FLANGE | ₹ 14 | 1 | ||
| 7 | 904504380800 | HOSE CLAMP ASSY | ₹ 30 | 1 | ||
| 8 | B9PE42430000 | PLATE | ₹ 21 | 1 | ||
| 9 | B9PE36460000 | GASKET MANIFOLD 2 | ₹ 39 | 1 | ||
| 10 | 901100684600 | BOLT HEXAGON SOCKET HEAD | ₹ 44 | 2 | ||
| 11 | B9PE37500100 | THROTTLE BODY ASSY | ₹ 4254 | 1 | ||
| 12 | B9PE44110000 | CASE AIR CLEANER 1 | ₹ 590 | 1 | ||
| 13 | B9PE44121000 | CAP CLEANER CASE 1 | ₹ 220 | 1 | ||
| 14 | B9PE44500000 | ELEMENT ASSY AIR CLEANER | ₹ 245 | 1 | ||
| 15 | B9PE44530000 | JOINT AIR CLEANER 1 | ₹ 195 | 1 | ||
| 16 | 2GSE44520000 | SEAL | ₹ 32 | 1 | ||
| 17 | 20PE443E0000 | PIPE DRAIN | ₹ 11 | 1 | ||
| 18 | 904671280000 | CLIP | ₹ 12 | 1 | ||
| 19 | 977025002500 | SCREW TAPPING | ₹ 10 | 9 | ||
| 20 | 903870673700 | COLLAR | ₹ 11 | 1 | ||
| 21 | 903870980600 | COLLAR | ₹ 11 | 2 | ||
| 22 | 958270801600 | BOLT FLANGE | ₹ 10 | 3 | ||
| 23 | 2GSE11661000 | PIPE BREATHER 1 | ₹ 40 | 1 | ||
| 24 | 904671381600 | CLIP | ₹ 4 | 1 | ||
| 25 | 904671501200 | CLIP | ₹ 5 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Breathing efficiency for the fuel injected Yamaha FZ RAVE is managed by the precision Intake assembly. This system features the Manifold together with the Injector Assy which delivers fuel with digital accuracy. The Throttle Body Assy manages the airflow in response to the rider commands for instant acceleration. Protecting the engine is the role of the Element Assy Air Cleaner housed within the Case Air Cleaner One. Every Hose Clamp Assy plus specialized Plate ensures that the intake tract remains airtight. The assembly also includes a Pipe Breather to manage internal crankcase pressure. Authentic intake components prevent dust ingress plus ensure consistent fuel atomization. Every Bolt Flange plus Screw Tapping within this kit is engineered for high durability. This system is critical for the fuel economy plus performance of the modern engine. Choosing genuine parts ensures that your motorcycle breathes clean air for a long engine life. It provides the responsive power needed for urban traffic.
