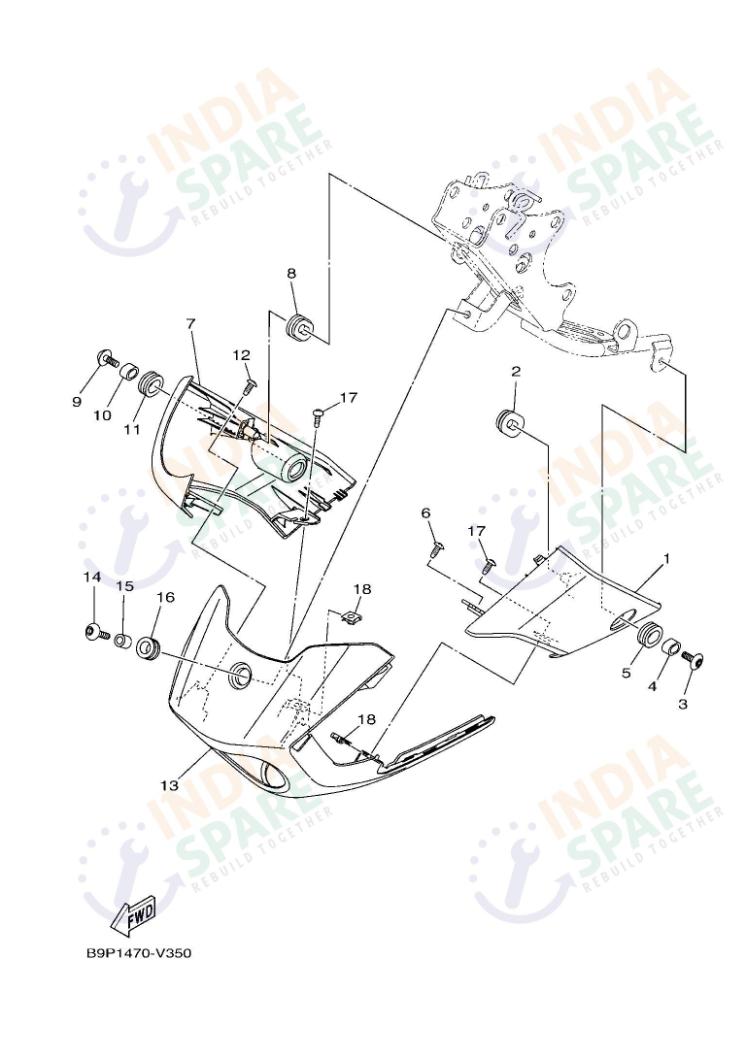

LEG SHIELD
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B9PF838500P0 | COVER LOWER MBL2 | ₹ 243 | 1 | ||
| 2 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 3 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 4 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 5 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 6 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 7 | B9PF839500P0 | COVER UNDER MBL2 | ₹ 243 | 1 | ||
| 8 | 904800155800 | GROMMET | ₹ 10 | 1 | ||
| 9 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 10 | 20PF17490000 | COLLAR | ₹ 4 | 1 | ||
| 11 | 904800181100 | GROMMET | ₹ 8 | 1 | ||
| 12 | 977025001600 | SCREW TAPPING | ₹ 10 | 1 | ||
| 13 | B9PF837D0000 | COVER UNDER 3 | ₹ 129 | 1 | ||
| 14 | 901490682900 | SCREW | ₹ 25 | 1 | ||
| 15 | 90387068C200 | COLLAR | ₹ 7 | 1 | ||
| 16 | 904801400300 | GROMMET | ₹ 8 | 1 | ||
| 17 | 977025001600 | SCREW TAPPING | ₹ 10 | 2 | ||
| 18 | 901830580700 | NUT SPRING | ₹ 9 | 2 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Lower body protection plus aerodynamic efficiency are provided by the Leg Shield assembly of the Yamaha FZ RAVE. This collection of body panels includes the Cover Lower Mbl2 plus the Cover Under Mbl2 which shield the engine from road debris. Every panel is secured using specialized Screw Tapping together with resilient Grommet hardware for a rattle free experience. The use of specific Collar plus Nut Spring components ensures that the shields stay aligned even on bumpy rural roads. These parts also help in channeling cool air toward the engine block to assist in thermal management. The sleek finish of the Cover Under Three adds to the aggressive aesthetic of the lower chassis. Using genuine body parts ensures a perfect fit plus color match with the rest of the motorcycle. These shields are made from impact resistant materials to survive stone chips plus daily wear. They provide a refined look while serving a functional protective role for the machine.
