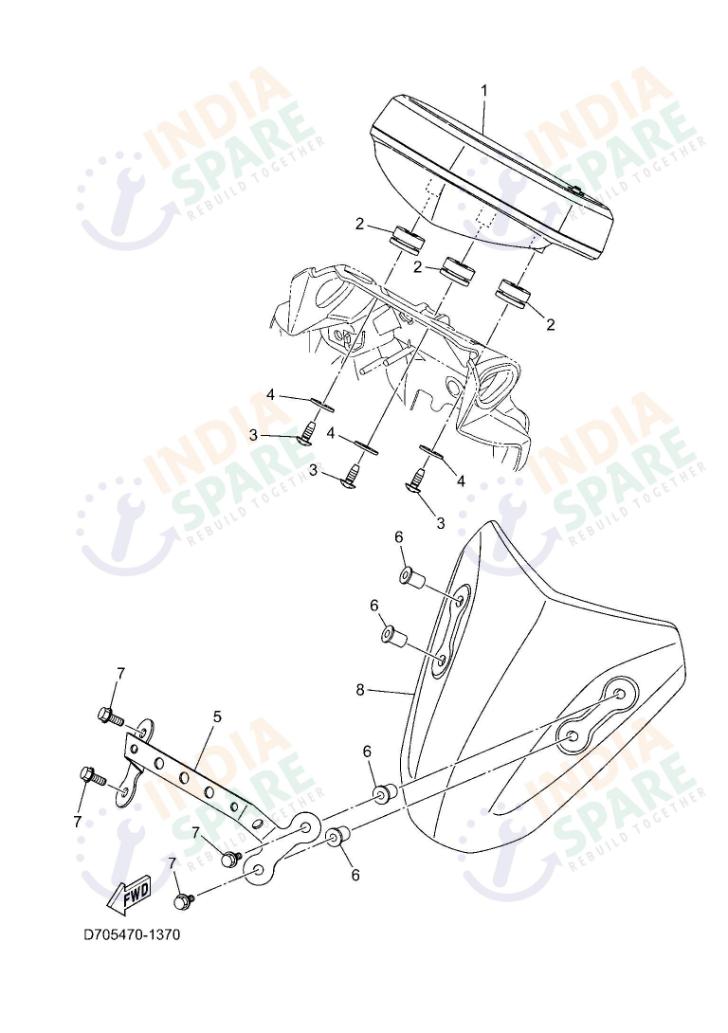

METER
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B4GH35001400 | METER ASSY | ₹ 4332 | 1 | ||
| 2 | 904801481800 | GROMMET | ₹ 10 | 3 | ||
| 3 | 977075001400 | SCREW TAPPING | ₹ 15 | 3 | ||
| 4 | 902010503600 | WASHER | ₹ 2 | 3 | ||
| 5 | D70F34870000 | STAY, PLATE | ₹ 0 | 1 | ||
| 6 | 901790580400 | NUT | ₹ 10 | 4 | ||
| 7 | 920170502000 | BOLT BUTTON HEAD | ₹ 38 | 4 | ||
| 8 | D70H355900P0 | COVER, METER | ₹ 470 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - The cockpit of the Yamaha FZ RAVE provides a digital window into the machine performance via the advanced Meter assembly. This unit features a high definition Speedometer Assy that displays velocity plus fuel levels with digital accuracy. The display is mounted securely using a specialized Stay Plate together with vibration dampening Grommet hardware. Every Bolt Button Head plus Washer within this setup ensures the dashboard remains stable during high speed runs. The Cover Meter provides a sleek finish while protecting the sensitive internal circuitry from dust plus moisture. Riders rely on this data to manage their journey plus monitor engine health in real time. The Tuning Fork Mark on the housing represents the quality heritage of the brand. This assembly is designed for high legibility even under direct sunlight. Choosing genuine meter components ensures that the sensor data remains consistent plus reliable. It is the central nervous system for rider information.
