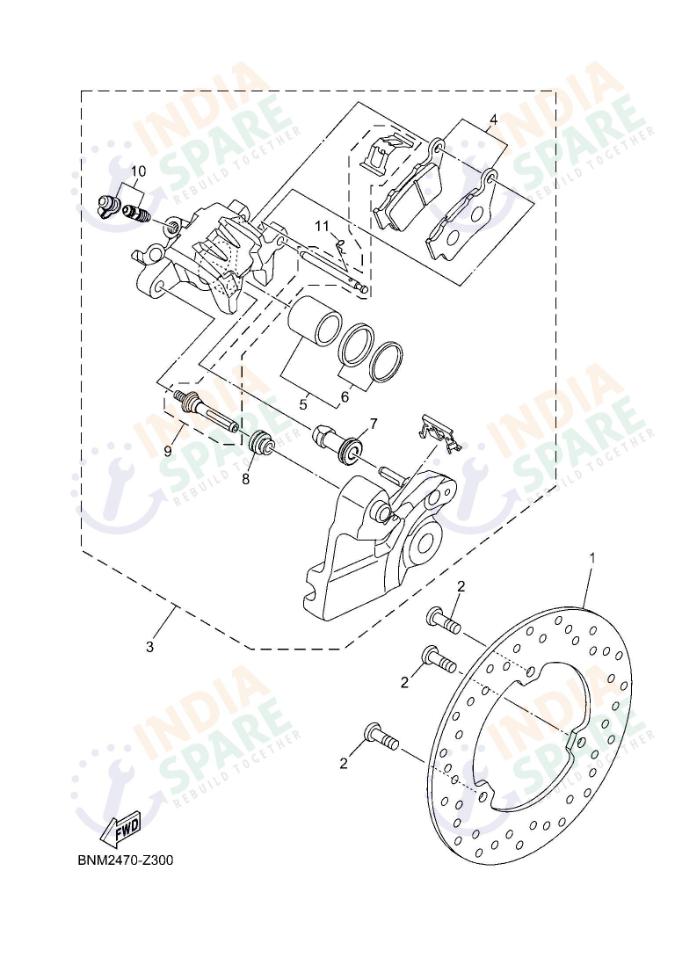

REAR BRAKE CALIPER
D705/D735
| Ref No | Part No | Part Name | Rate | Qnty | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | B97F582W0000 | DISK REAR BRAKE 2 | ₹ 1005 | 1 | ||
| 2 | 901110802900 | BOLT HEX. SOCKET BUTTON | ₹ 11 | 3 | ||
| 3 | BFJF580W0000 | CALIPER ASSY, REAR 2 | ₹ 3009 | 1 | ||
| 4 | BPDF58060000 | BRAKE PAD SET | ₹ 917 | 1 | ||
| 5 | BPDF58025000 | PISTON ASSY, CALIP | ₹ 184 | 1 | ||
| 6 | BPDF58035000 | CALIPER SEAL KIT | ₹ 46 | 1 | ||
| 7 | 54BF59370000 | BOOT 2 | ₹ 27 | 1 | ||
| 8 | 54BF59170000 | BOOT CALIPER | ₹ 23 | 1 | ||
| 9 | BPDWF5990000 | PAD SPRING AND PIN SET | ₹ 87 | 1 | ||
| 10 | BPDW00480000 | BLEED SCREW SET | ₹ 36 | 1 | ||
| 11 | BPDF59250000 | CLIP | ₹ 20 | 1 |
Color Legend:
- Red: Canceled part - unavailable for any operations.
- Blue: Part of a kit - cannot be ordered individually.
- Gray (Dimmed): Disabled part - non-interactive for various reasons.
- Part Number : Superseded part - replaced by a newer part.
Description: - Deceleration of the rear wheel on the Yamaha FZ RAVE is managed by the high performance Rear Brake Caliper assembly. This unit grips the Disk Rear Brake together with the Brake Pad Set to provide reliable stopping power. The internal Piston Assy Calip moves smoothly within the housing thanks to the Caliper Seal Kit which prevents leaks. Protection is provided by the Boot plus the secondary Boot Caliper to shield the moving parts from road grime. Every Pad Spring plus Pin Set ensures that the pads remain aligned plus rattle free. The Bleed Screw Set allows for easy maintenance of the hydraulic fluid. Choosing genuine caliper components ensures that the rear brake remains responsive plus fade resistant. This assembly is vital for maintaining the stability of the motorcycle during heavy braking maneuvers. Every Bolt Hex Socket Button plus Clip is manufactured to withstand extreme heat. It provides the confidence needed for spirited riding on diverse road surfaces.
